# Meowbit’s Display(Kittenblock)

Meowbit’s screen can be programmed to display various text or shapes.

### Kittenblock Coding Tutorial

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/kbbanner.png)

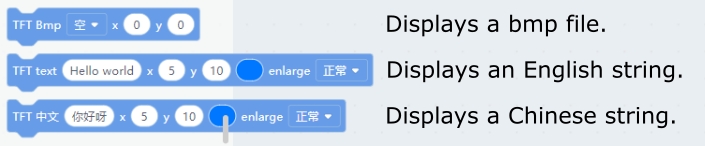

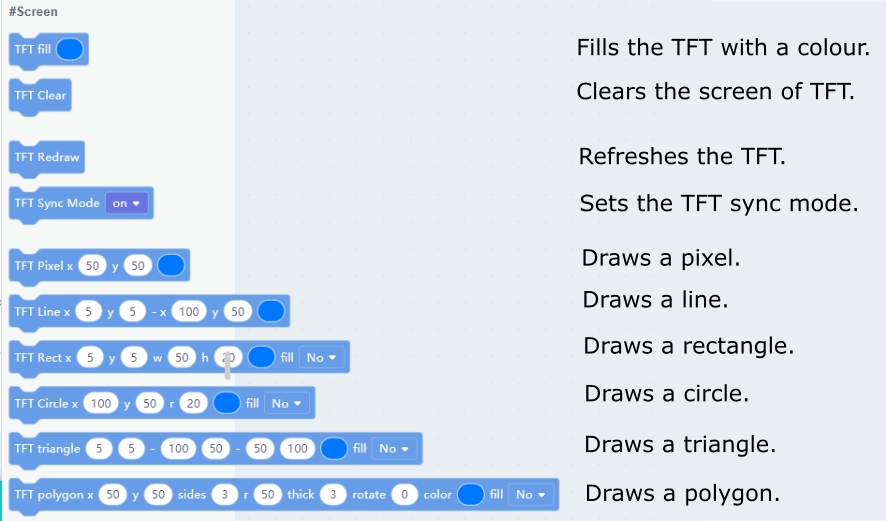

#### Blocks for controlling the screen

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/kb11_1.png) ![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/kb11_2.png)

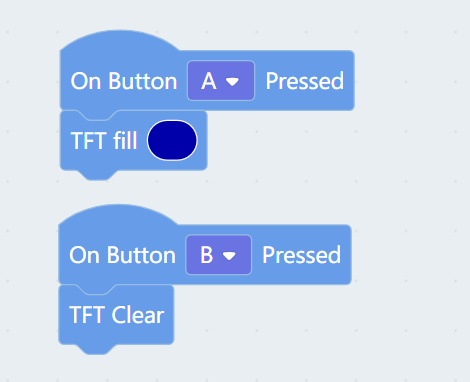

#### Filling a color and clear screen

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/tft1.png)

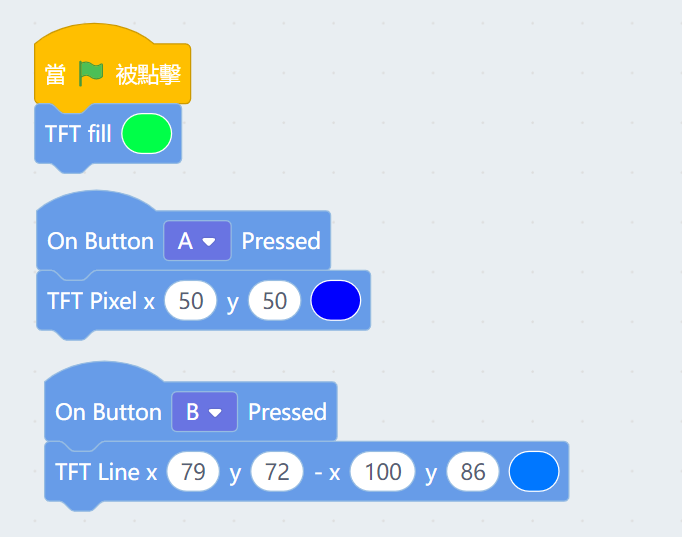

#### Drawing dots and lines

```
Lines must be given two coordinates for them to be drawn.
```

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/tft2.png)

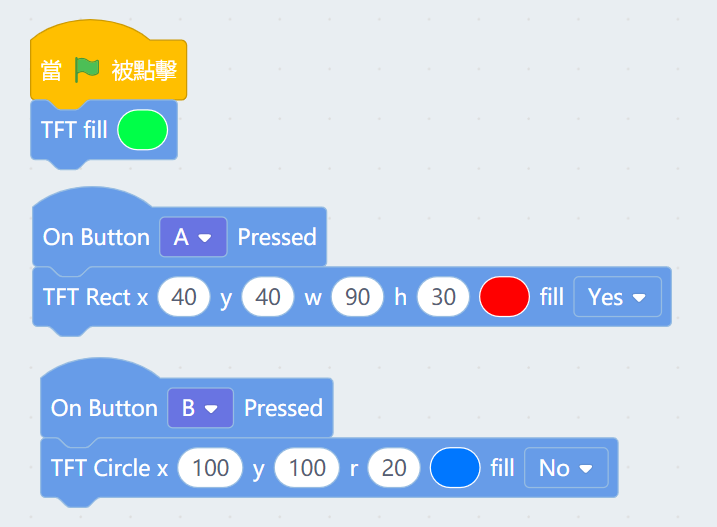

#### Drawing Rectangles and Circles

```
The coordinates of a rectangle represents its top-left corner, with width and height as w and h.
The coordinates of a circle represents its origin, with radius as r.
```

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/tft3.png)

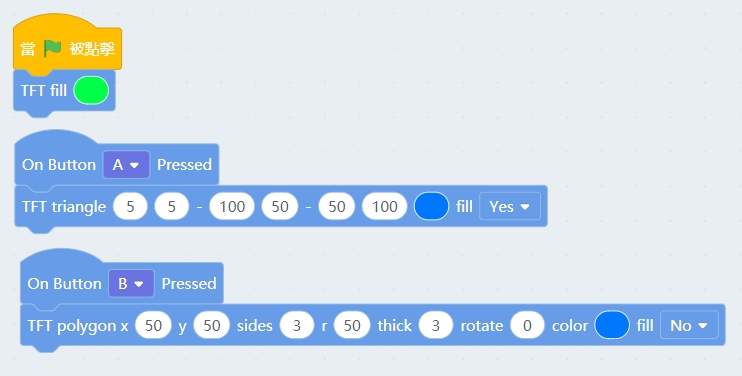

#### Drawing Triangles and Polygons

```
Give 3 coordinates as vertices to create a triangle.
The coordinates of a polygon represents its origin.
```

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/tft4.png)

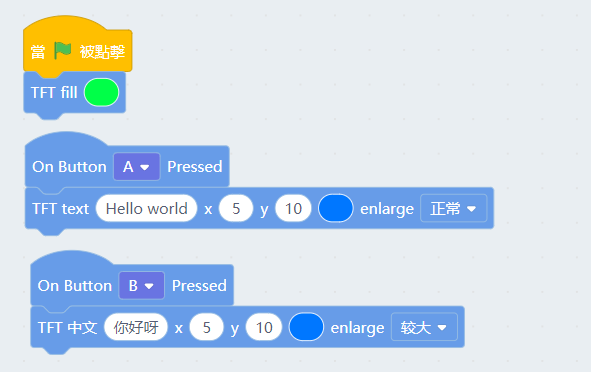

#### Displaying text

```
The coordinates are at the top-left corner of the string.
Traditional Chinese Characters are not supported yet.
```

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/tft5.png)


---
