# PM2.5 Particulates Sensor

<figure><img src="https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F6uJvpXC43onNIIwhMlWo%2Fuploads%2FaGd385bJygYObPeJqPbZ%2Fpmsensor1.png?alt=media&#x26;token=33ba7ab7-cc09-4e1c-81d8-09626a6461b6" alt=""><figcaption></figcaption></figure>

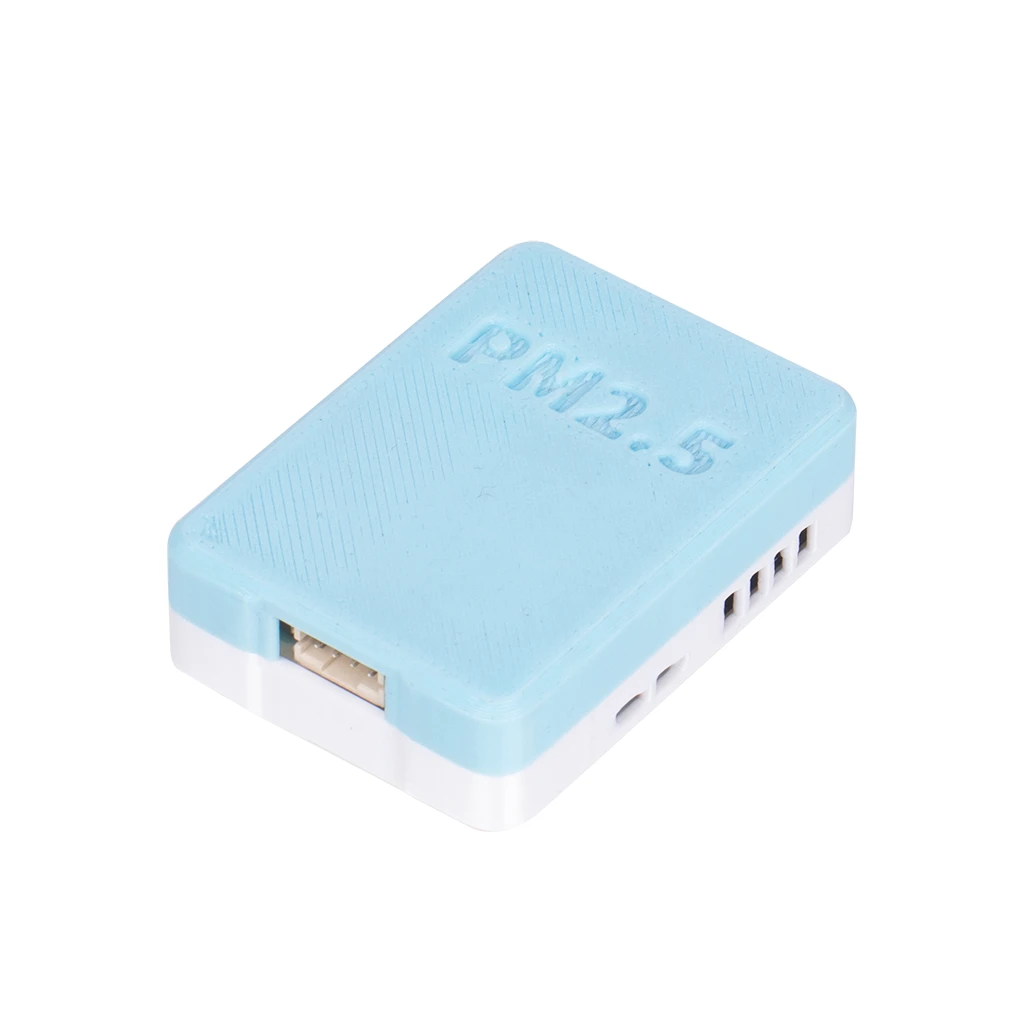

Particulates Sensor can detect airborne particulates such as PM2.5, PM1.0 and PM10 pollutants.

### Product Specifications

Port: I2C

Voltage: 3V\~5V

### Wiring

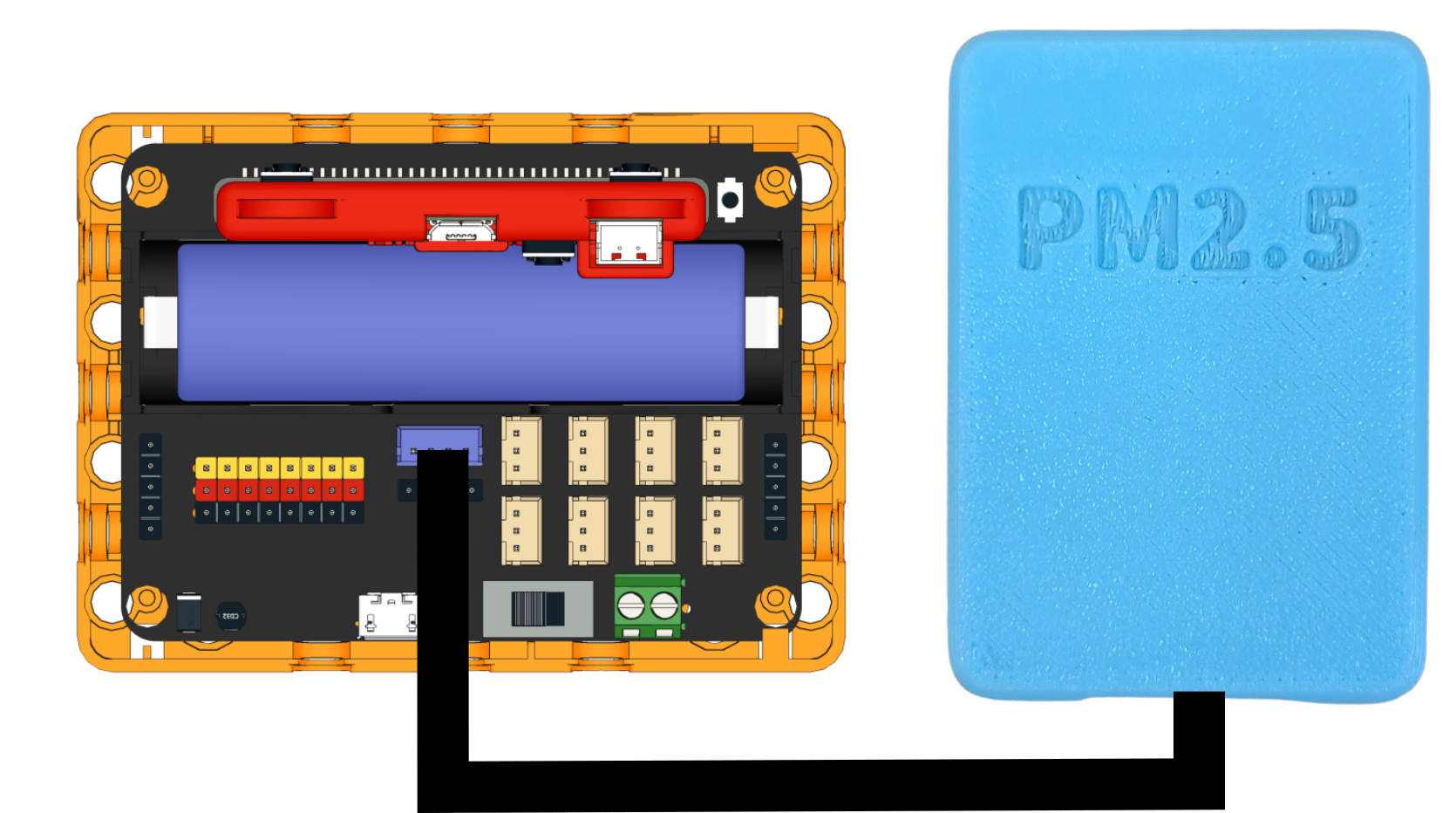

Connect the module to the I2C port of Robotbit EDU.

<figure><img src="https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F6uJvpXC43onNIIwhMlWo%2Fuploads%2FyqN079F5c8xpZ9DNKKNL%2Fpmsensor_edu.png?alt=media&#x26;token=cfdedf3e-b7b4-451e-a740-e8191c0a536d" alt=""><figcaption></figcaption></figure>

### Programming Tutorial

#### MakeCode Programming

#### Import Sugar Extension

#### Search for sugar in the search bar (Kittenbot products has been verified by Microsoft)

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/sugar_search.png)

#### Extension URL

Sugar extension: <https://github.com/KittenBot/pxt-sugar>

[Importing Extensions Tutorial](/programming-platforms/makecode-tutorial/kittenbot-and-makecode.md)

{% embed url="<https://makecode.microbit.org/_UYXYeDJLrTr3>" %}


---
