# RGB LED Module

![../../\_images/RGB1.png](https://kittenbothk-eng.readthedocs.io/en/latest/_images/RGB1.png)

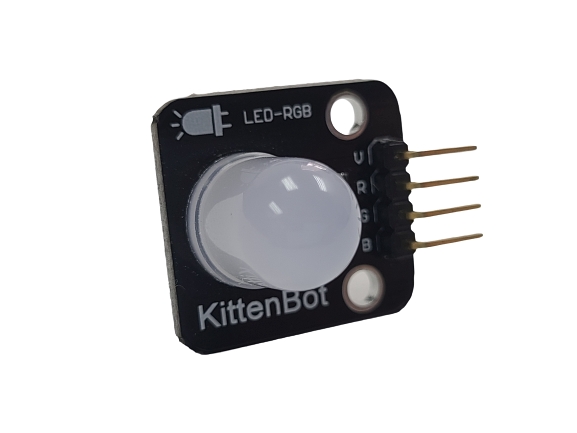

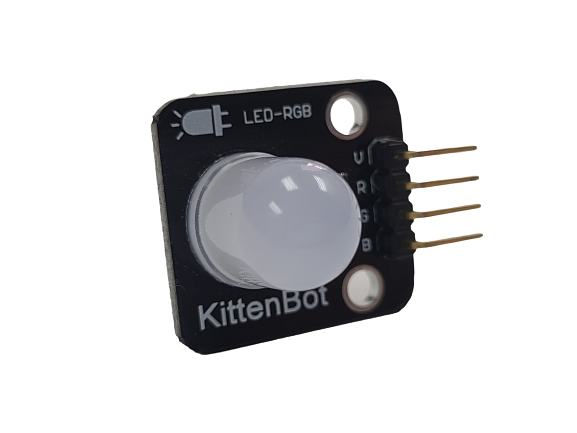

This is a single RGB LED.

### Specification[](https://kittenbothk-eng.readthedocs.io/en/latest/functional_module/outdated/rgb.html#specification)

* Voltage: 3V\~5V
* Type: Digital Module
* Interface: 3 Pin Dupont Cable

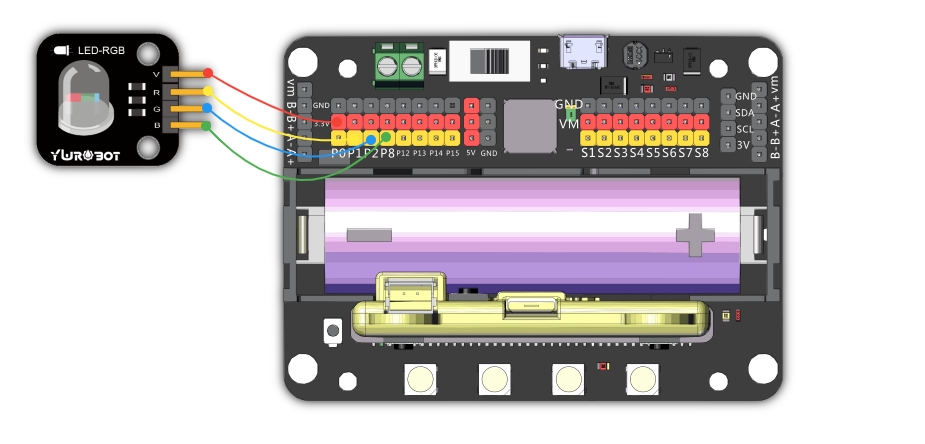

### Wiring Diagram[](https://kittenbothk-eng.readthedocs.io/en/latest/functional_module/outdated/rgb.html#wiring-diagram)

![../../\_images/RGB\_wire.png](https://kittenbothk-eng.readthedocs.io/en/latest/_images/RGB_wire.png)

### MakeCode Coding Tutorial[](https://kittenbothk-eng.readthedocs.io/en/latest/functional_module/outdated/rgb.html#makecode-coding-tutorial)

![../../\_images/mcbanner.png](https://kittenbothk-eng.readthedocs.io/en/latest/_images/mcbanner.png)

![../../\_images/acbanner.png](https://kittenbothk-eng.readthedocs.io/en/latest/_images/acbanner.png)

#### This module can be used with Microbit and Meowbit.[](https://kittenbothk-eng.readthedocs.io/en/latest/functional_module/outdated/rgb.html#this-module-can-be-used-with-microbit-and-meowbit)

**Controlling the LED**[****](https://kittenbothk-eng.readthedocs.io/en/latest/functional_module/outdated/rgb.html#controlling-the-led)

#### Microbit:[](https://kittenbothk-eng.readthedocs.io/en/latest/functional_module/outdated/rgb.html#microbit)

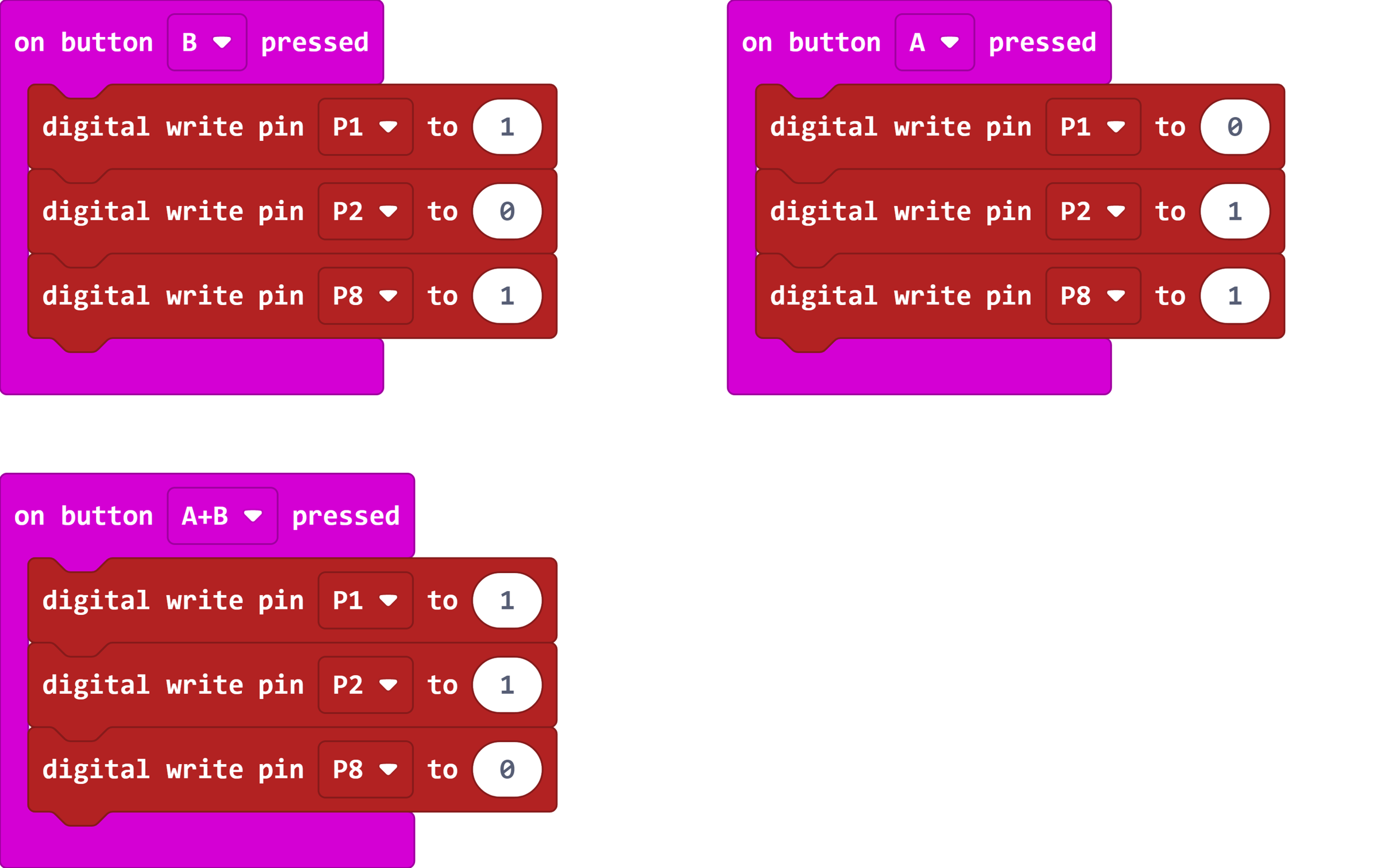

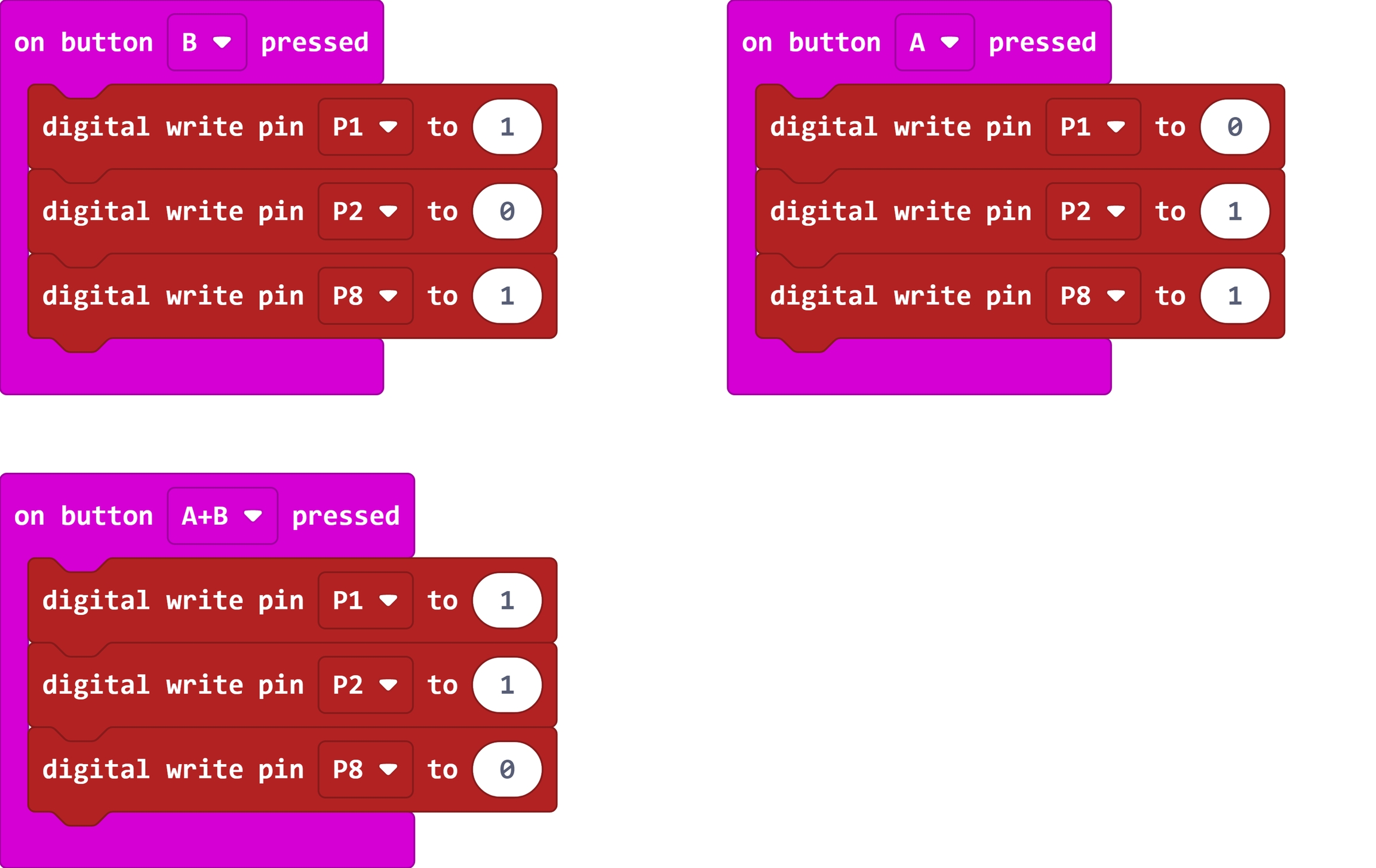

![../../\_images/rgb\_code.png](https://kittenbothk-eng.readthedocs.io/en/latest/_images/rgb_code.png)

[Sample Code Link](https://makecode.microbit.org/_Tq7Y963gW1fA)

#### Meowbit:[](https://kittenbothk-eng.readthedocs.io/en/latest/functional_module/outdated/rgb.html#meowbit)

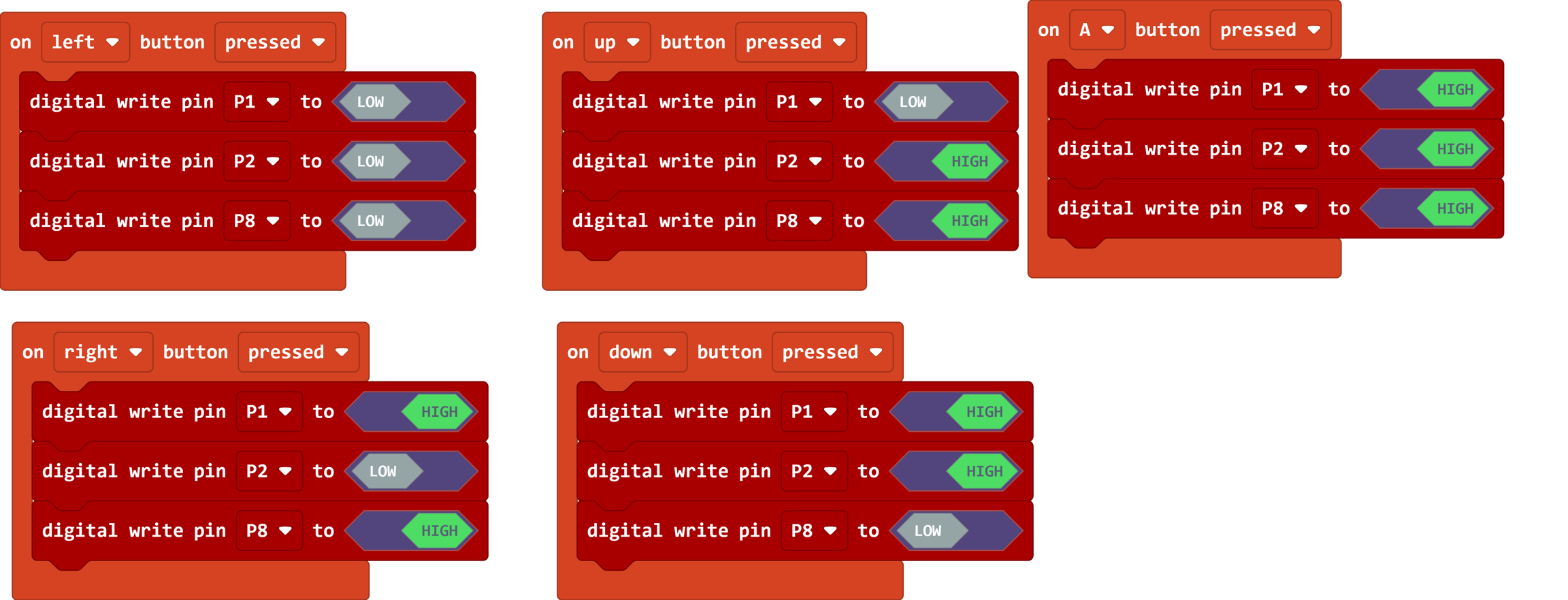

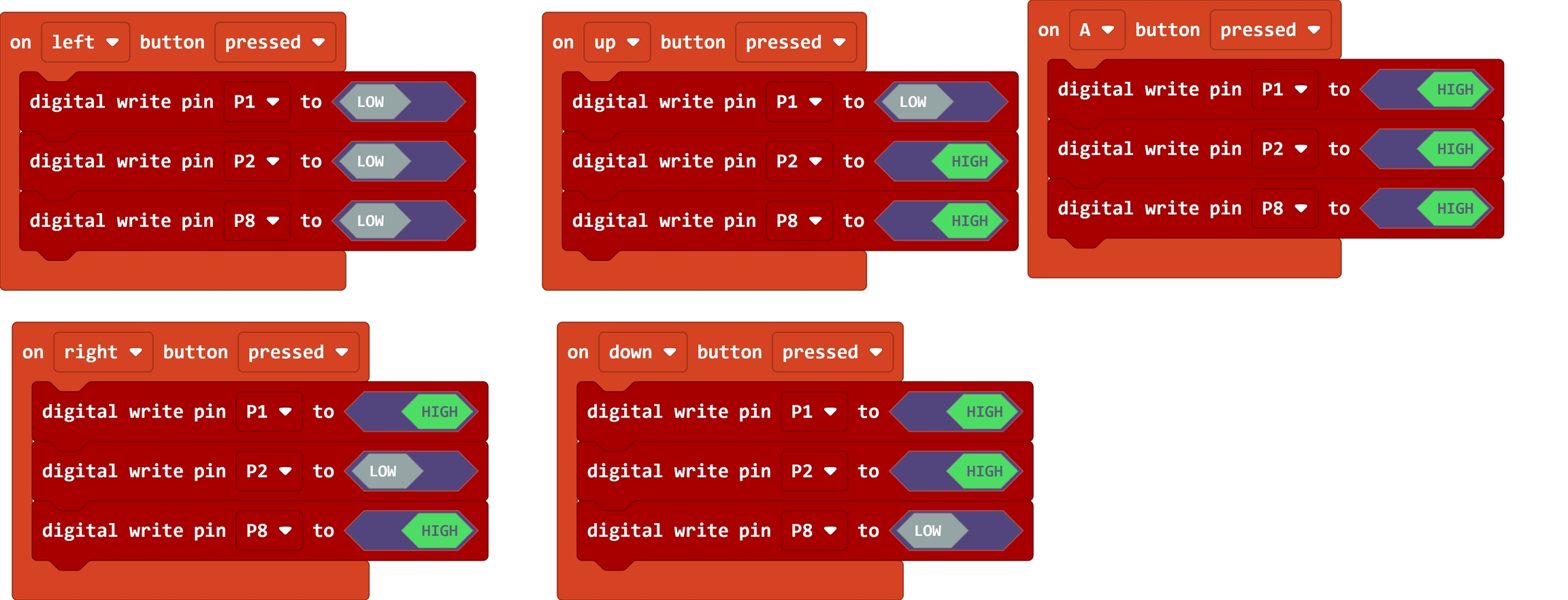

![../../\_images/rgb\_codeMeow.png](https://kittenbothk-eng.readthedocs.io/en/latest/_images/rgb_codeMeow.png)

[Sample Coding Link](https://makecode.com/_C13AgeUHz0M3)

### KittenBlock Coding Tutorial[](https://kittenbothk-eng.readthedocs.io/en/latest/functional_module/outdated/rgb.html#kittenblock-coding-tutorial)

![../../\_images/kbbanner.png](https://kittenbothk-eng.readthedocs.io/en/latest/_images/kbbanner.png)

#### Load the Robotbot extension[](https://kittenbothk-eng.readthedocs.io/en/latest/functional_module/outdated/rgb.html#load-the-robotbot-extension)

![../../\_images/addRB.png](https://kittenbothk-eng.readthedocs.io/en/latest/_images/addRB.png)

**Controlling the LED**[****](https://kittenbothk-eng.readthedocs.io/en/latest/functional_module/outdated/rgb.html#id1)

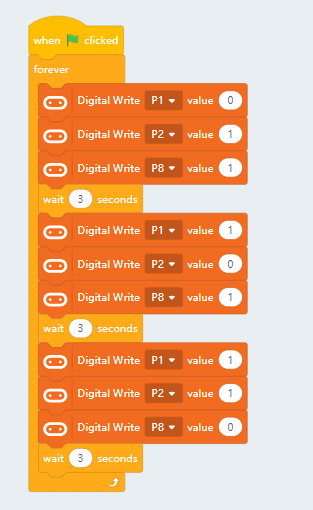

![../../\_images/rgb\_code2.png](https://kittenbothk-eng.readthedocs.io/en/latest/_images/rgb_code2.png)
