# Programming with KittenBlock: Buzzer

Buzzers can make your creations more interesting by adding sounds and musics.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/kbbanner.png)

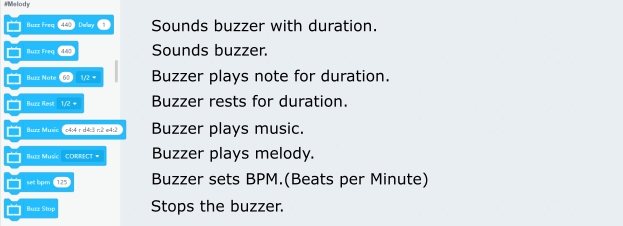

### Buzzer Blocks

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/buzzer_en.png)

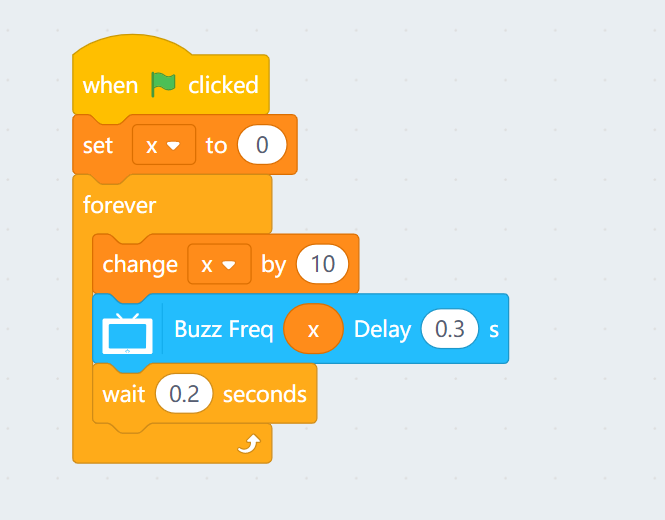

#### Sample Program: Buzzer and Frequencies

The buzzer can be controlled using frequencies.

Refer to this page for more information about frequencies and notes: <https://pages.mtu.edu/~suits/notefreqs.html>

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/buzzer_code1en.png)

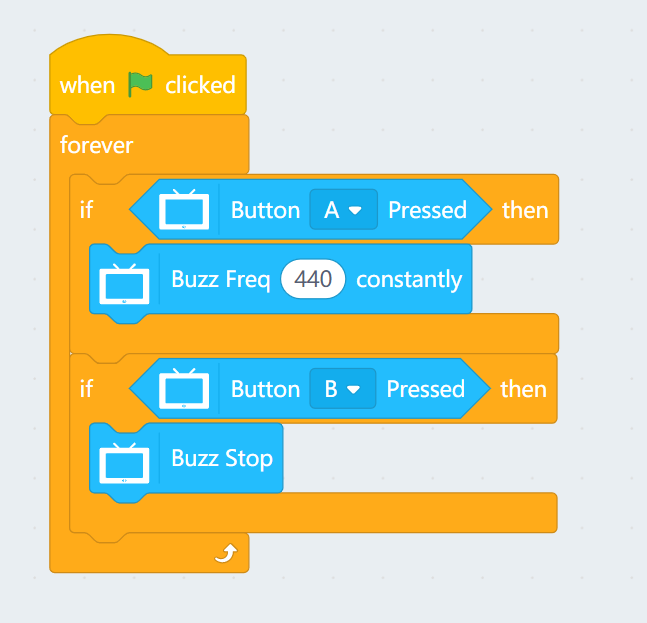

#### Sample Program: Stopping the Buzzer

Press A and the buzzer will sound continuously, press B to stop the sound.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/buzzer_code2en.png)

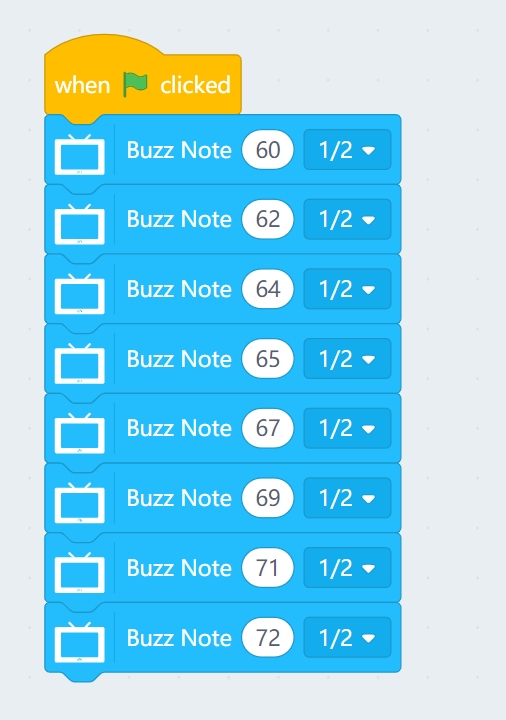

#### Sample Program: Playing Notes

Plays the 8 stand notes.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/buzzer_code3en.png)

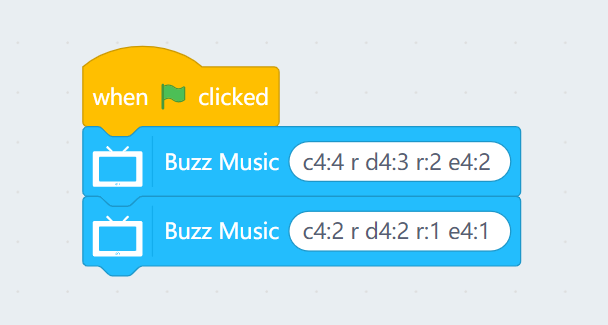

#### Sample Program: Making your own Melodies

* Using c4:2 as an example
  * C is the note played
  * 4 is the octave
  * :2 is the duration in beats

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/buzzer_code4en.png)

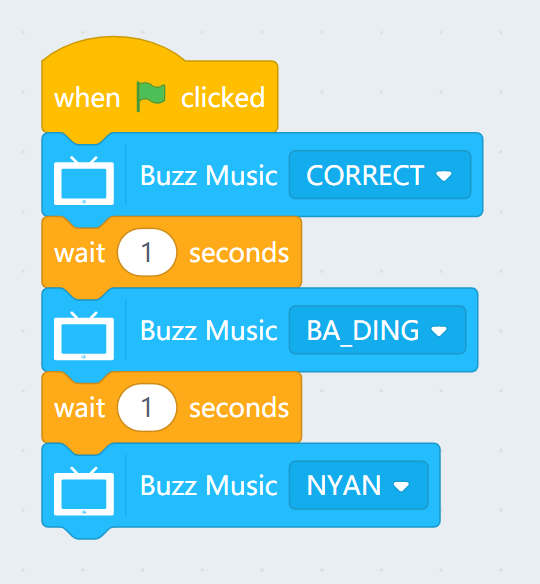

#### Sample Program: Playing Preset Melodies

Plays a few preset melodies.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/buzzer_code5en.png)

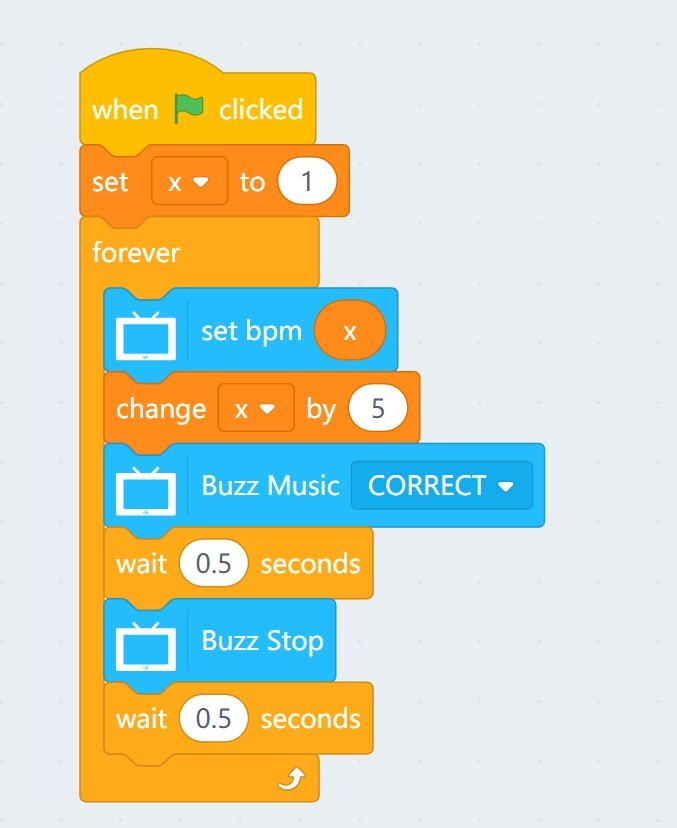

#### Sample Program: Affecting the BPM

The BPM slowly increases.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/buzzer_code6en.png)


---
