Sugar ASR Unplugged Usage

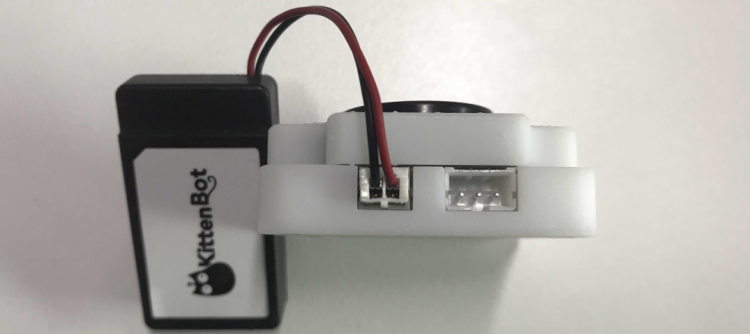

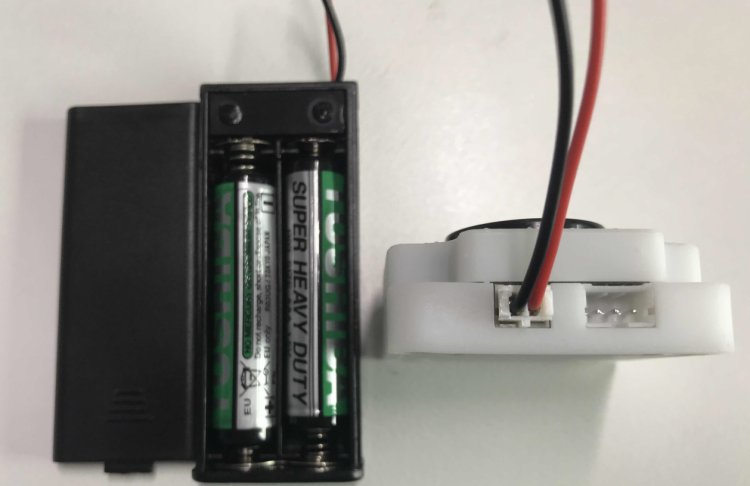

The ASR Voice Recognition module can be used without any programming, simply connect a 3V battery box or 3.7V battery to use the module individually.

Operations Manual

1. The module will read out the firmware version after powering on.

2. Wake up the module by saying one of these awake commands, the module replies ‘Uh huh’ when a wake-up command is heard

Wake-up Commands:

1. Hey Sugar

2. Hello KittenBot

3. Hello Kitty

3. Say the following commands to control onboard resources, module replies ‘OK’ when a command is heard.

These Commands can be used to control onboard resources:

Light Controls:

1. Lamp On / Light On

   • Controls 3Pin Sugar Port

2. Lamp Off / Light Off

   • Controls 3Pin Sugar Port

3. Brighter

   • Controls 3Pin Sugar Port

4. Dimmer

   • Controls 3Pin Sugar Port

5. Red Light On

   • Turns on built-in red LED

6. Green Light On

   • Turns on built-in green LED

7. Yellow Light On

   • Turns on built-in yellow LED

8. All Light Off

   • Turns off all lights

Actions:

1. Open Door / Open Window / Open Curtains / Hanger Out

   • Controls Servo Port

2. Close Door / Close Window / Close Curtains / Hanger In

   • Controls Servo Port

3. Fan On

   • Controls Motor Port

4. Fan Off

   • Controls Motor Port

5. Speed Up

   • Controls Motor Port

6. Slow Down

   • Controls Motor Port

4. After idling for 10 seconds, the module will go into sleep mode after saying “Uh oh”, use a wake-up command to wake the module
