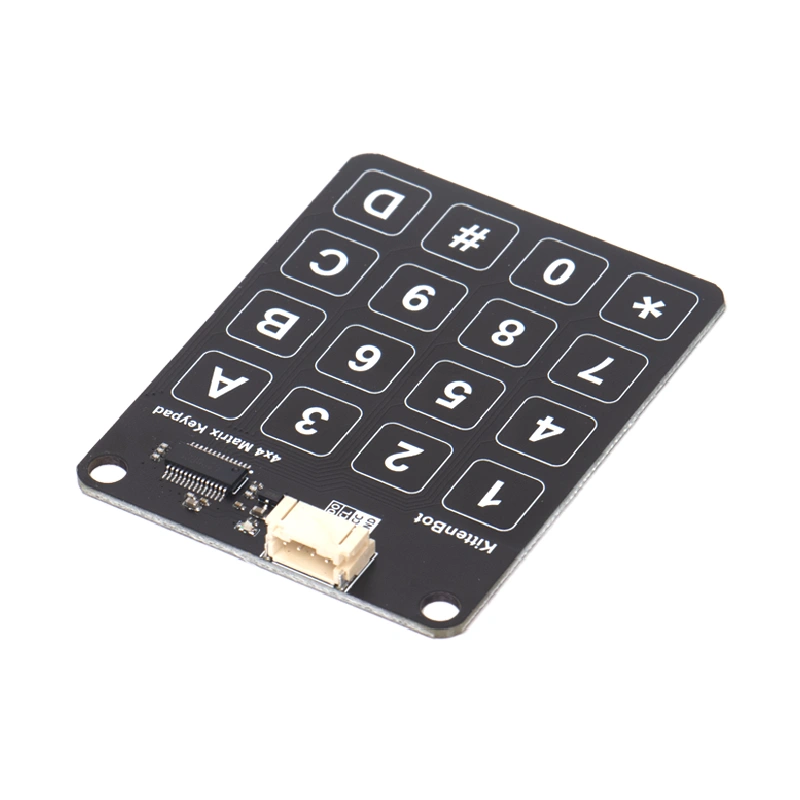

# Sugar Numpad Module

<figure><img src="https://686851495-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F7Bv9xBdKh3R9w6Vp7asd%2Fuploads%2FneGEYbPQSTI12QlIuWI5%2Fnumpad.webp?alt=media&#x26;token=421946d6-4a5a-4454-aafa-12fa6ada91ab" alt=""><figcaption></figcaption></figure>

This numpad module is suitable for use cases such as door locks.

## Product Specifications

* Voltage: 3.3\~5V
* Dimensions: 56 x 72 x 7.2 mm

## Produt Wiring

#### Robotbit EDU

<figure><img src="https://686851495-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F7Bv9xBdKh3R9w6Vp7asd%2Fuploads%2FJhQVgLCXvKckKbJEdhkl%2Fnumpad_wiring_edu.png?alt=media&#x26;token=f1dc52f8-d040-479b-bcc8-ca2db864e154" alt=""><figcaption></figcaption></figure>

#### Robotbit 2.2

<figure><img src="https://686851495-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F7Bv9xBdKh3R9w6Vp7asd%2Fuploads%2FUcdaoW5bOVvHfagefLxP%2Fnumpad_wiring_2.2.png?alt=media&#x26;token=0a14b99c-18fd-48d9-9c15-872fb3e97883" alt=""><figcaption></figcaption></figure>

### Programming Tutorial

#### MakeCode Programming Tutorial

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/mcbanner.png)

#### Import Sugar Extension

#### Search for sugar in the search bar (Kittenbot products has been verified by Microsoft)

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/sugar_search.png)

[Importing Extensions Tutorial](https://sharinghub-eng.kittenbot.hk/programming-platforms/makecode-tutorial/kittenbot-and-makecode)

#### Extension URL

Sugar extension: <https://github.com/KittenBot/pxt-sugar>

### Sample Program

{% embed url="<https://makecode.microbit.org/_Eo6EWi95DgRP>" %}

[Sample Program](https://makecode.microbit.org/_AE3Hc2VWP30J)
