# Geek Motor O 360 Servo

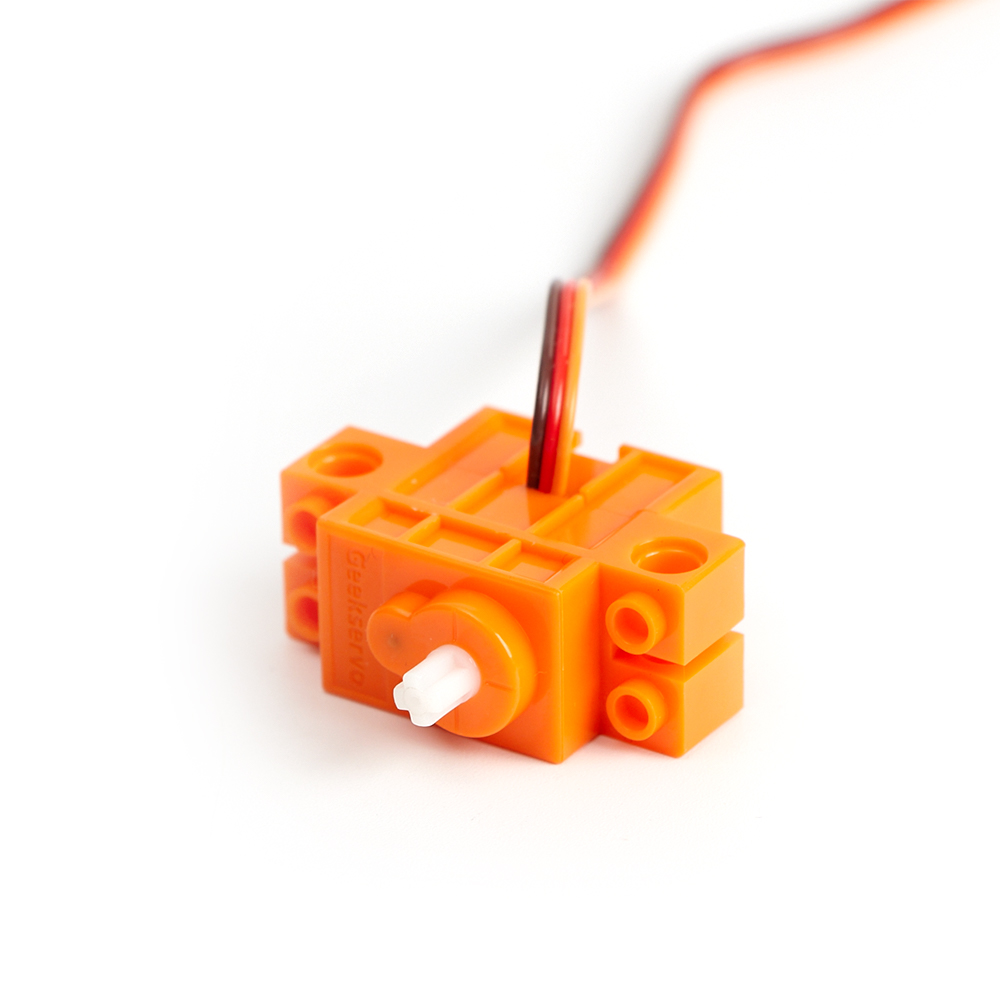

Geek Motor O 360 Servo(HKBD8001A)

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/360servo1.jpg)

This is a small continuos servo compatible with Lego technic parts, the output axle is compatible with Lego technic axles. It is mainly used to drive wheels or gears.

This is a special servo because it can be used as a motor for boards that lack a motor drivers, for example IOBit. They can be controlled simply with IO pins.

### Specifications

* Operating Voltage: 3.3V\~6V
* Rated Voltage: 4.8V
* Rated Current: 200ma
* Blocked Rotor Current: 700ma
* Slipping Current: 450ma
* Maximum torque: 500g/cm(4.8V)
* Maximum RPM: 70rpm
* Weight: 12.4g
* Connector: Orange-Red-Brown Servo Connector

### Geekservo Features

* Clutch Protection:
  * In case of violent turning of the output axle, the clutch is enabled to protect the gears from damage.
* Flexible Installation:
  * Can be mounted on standard Lego bricks or with Technic elements, providing a lot of possibilities for installation.
* Small and lightweight:
  * Suitable for small robotic projects.
* Does not require motor driver:
  * Suitable for expansion boards that lack a motor driver.

### Dimensions:

#### In Lego units:

* Length: 5
* Width: 2
* Height: 3
* Output axle: Technic Axle

#### In mm units:

* Length: 40mm
* Width: 16mm
* Height: 34.4mm
* Output axle: Technic Axle

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/13_031.png)

### Connection

#### IOBit

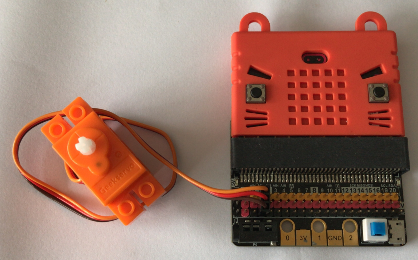

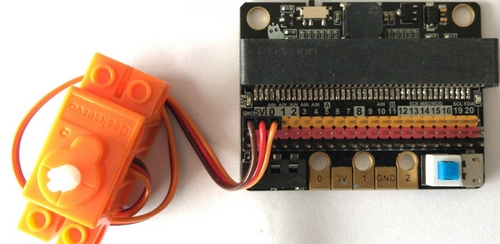

Connect the servo to an **Analog Pin** of the IOBit.

```
Both 3V and 5V are supported.
Orange to Yellow, Red to Red, Brown to Black.
```

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/360servo_wire1.png)

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/360servo_wire2.png)

### MakeCode Coding Tutorial

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/mcbanner3.png)

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/acbanner1.png)

#### This module can be used by Micro:bit and Meowbit.

### Programming the servo(Method 1)

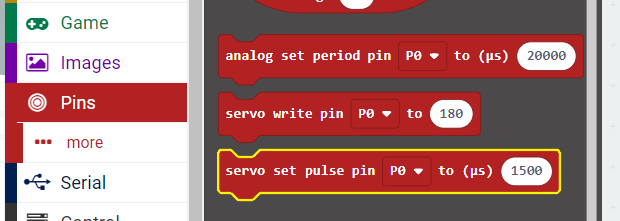

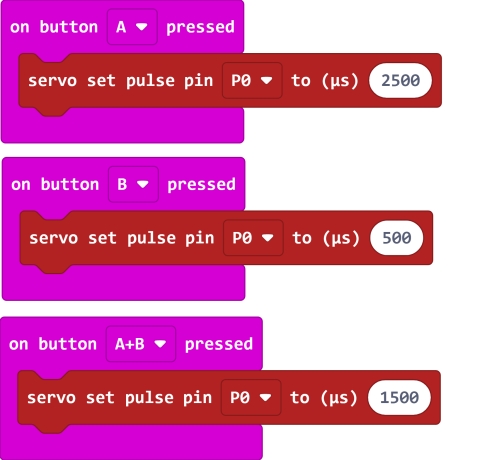

The servo can be controlled with the pulse block.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/360servo_block1.png)

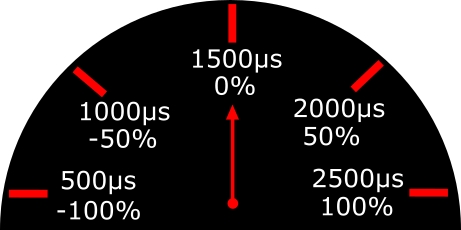

The pulse value for this servo is from 500 to 2500.

```
500 means full speed backwards, 2500 means full speed forwards, 1500 means full stop.
```

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/360servo_speed1.png)

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/360servo_code11.png)

[Sample Code Link](https://makecode.microbit.org/_Ub76W98a29A2)

### Programming the servo(Method 2)

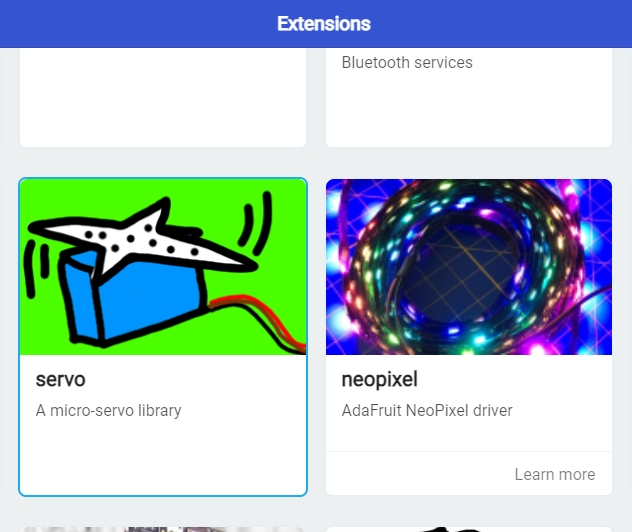

#### Load the servo extension

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/servo_extension1.png)

#### [Loading Extensions](/programming-platforms/makecode-tutorial/kittenbot-and-makecode.md)

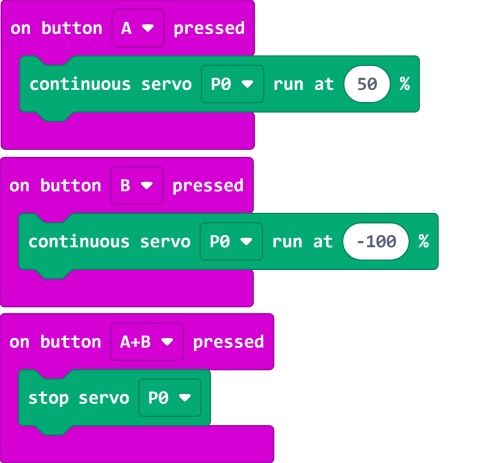

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/360servo_code21.png)

[Sample Code Link](https://makecode.microbit.org/_JdJDbv5ue97t)

#### Meowbit:

***

#### Load the Robotbit extension: <https://github.com/KittenBot/meow-robotbit>

### Programming the servo

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/360servo_codeMeow1.png)

[Sample Code Link](https://makecode.com/_DPeAM8h5HMaf)


---
