# Jacdac+MicroCode QuickStart

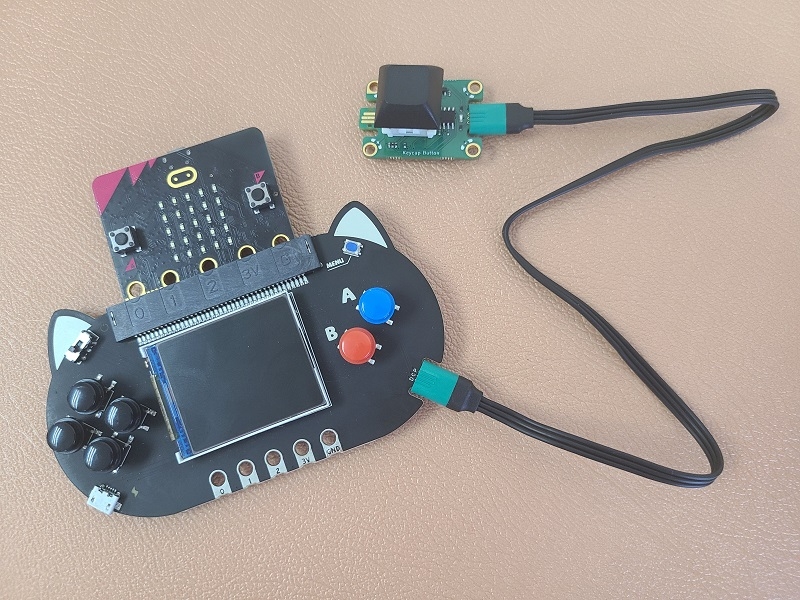

Connect a Jacdac Module to Newbit.

<figure><img src="https://kittenbothk.readthedocs.io/en/latest/_images/jacdac.jpg" alt="" width="375"><figcaption></figcaption></figure>

The corresponding programming blocks will be added.

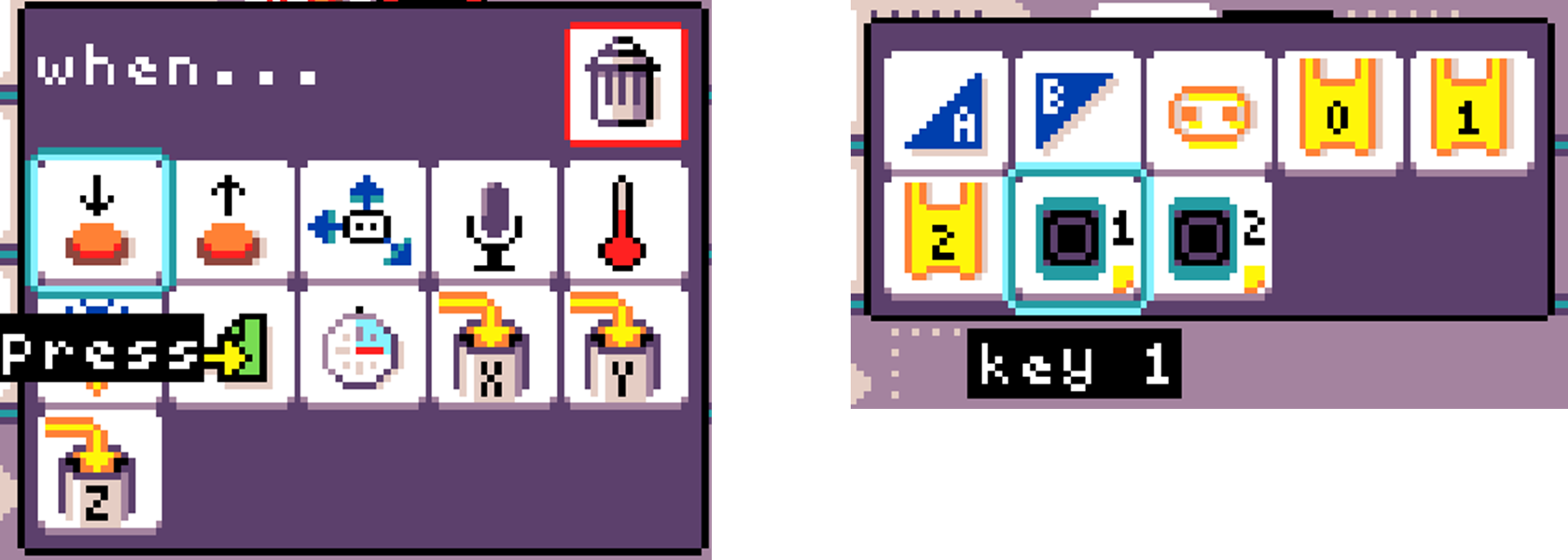

For buttons, it is located under the category of 'press'.

<figure><img src="https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F6uJvpXC43onNIIwhMlWo%2Fuploads%2F36nj05kAFQNqrMgZJ8QF%2Fimage.png?alt=media&#x26;token=c864410f-e0fa-4944-929e-7fc89707bdb9" alt=""><figcaption></figcaption></figure>

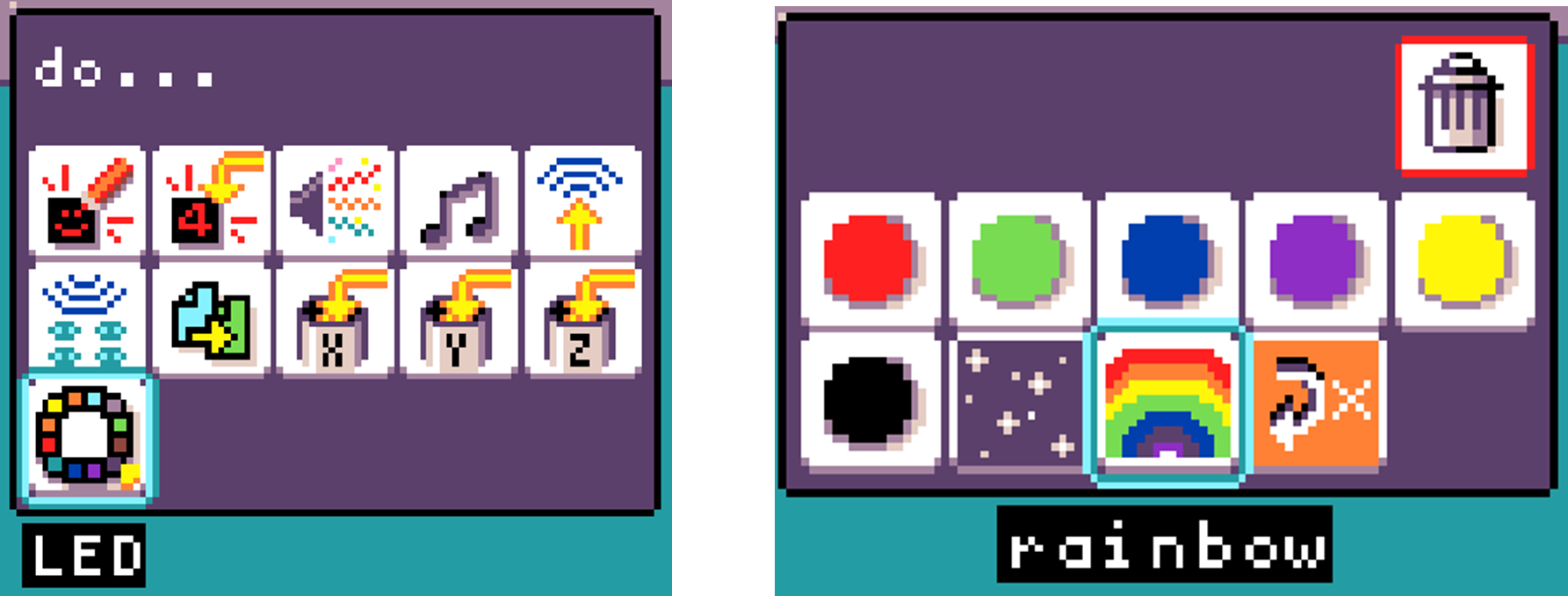

For output modules, you can find the blocks in the output section.

<figure><img src="https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F6uJvpXC43onNIIwhMlWo%2Fuploads%2FyQR4FgIbHIlfkJWX9XLv%2Fimage.png?alt=media&#x26;token=6736437c-9bd1-4395-975f-01c01d9575c3" alt=""><figcaption></figcaption></figure>
