# Sugar Soil Moisture Sensor Module

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/soil11.png)

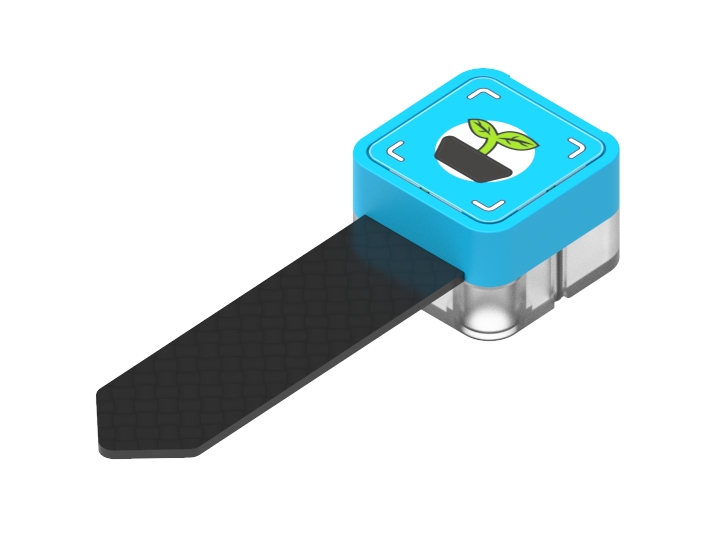

This is a soil moisture sensor module in the Sugar sensor series, the pin holes on the back allow compatibility with plastic building bricks.

### Product Specifications

* Dimensions: 24 x 24 x 23 mm
* Weight: 6.7g
* Type: Analog

### Wiring

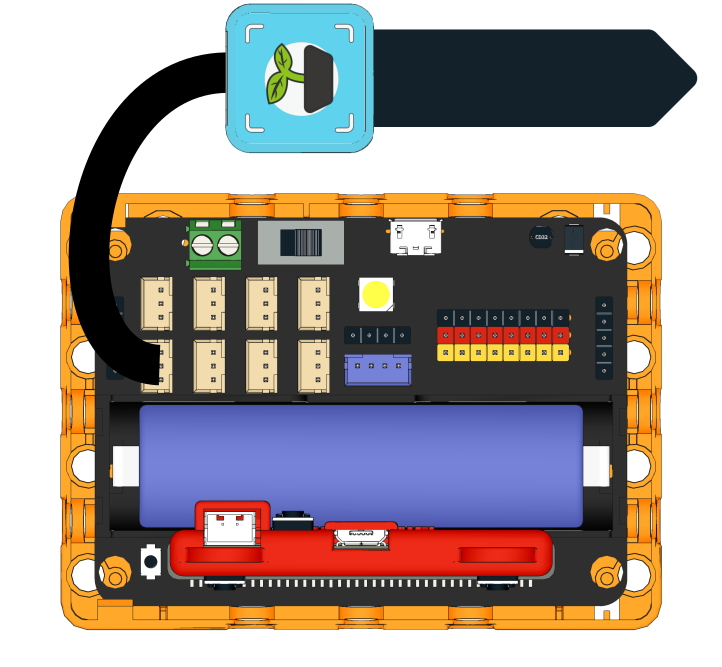

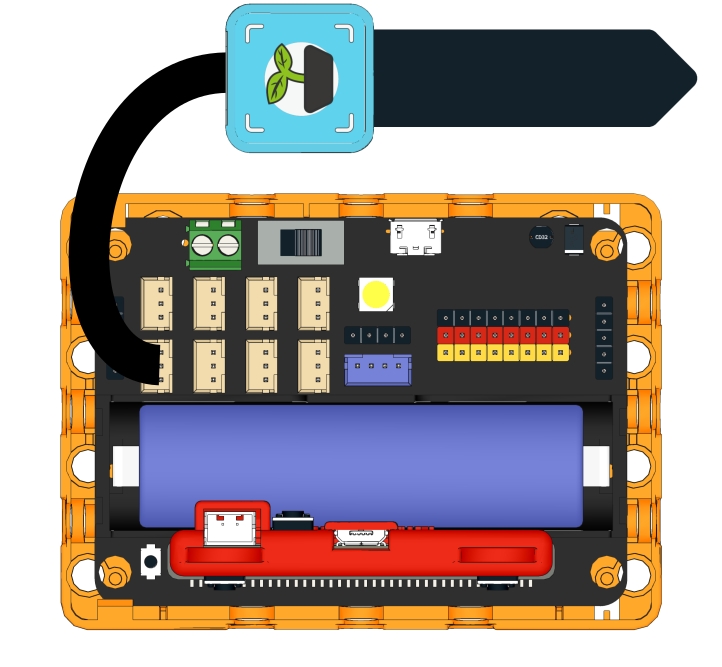

Use a 3Pin cable to connect the module to Robotbit Edu.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/soil_wire1.png)

### Programming Tutorial

### MakeCode Programming Tutorial

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/mcbanner.png)

#### Import Sugar Extension

#### Search for sugar in the search bar (Kittenbot products has been verified by Microsoft)

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/sugar_search.png)

#### Extension URL

Sugar extension: <https://github.com/KittenBot/pxt-sugar>

[Importing Extensions Tutorial](https://sharinghub-eng.kittenbot.hk/programming-platforms/makecode-tutorial/kittenbot-and-makecode)

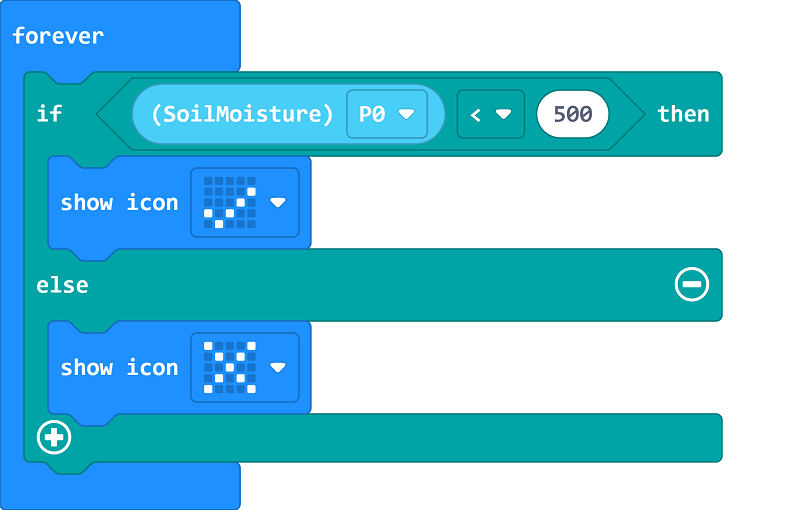

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/soil_mc_code.png)

[Sample Program](https://makecode.microbit.org/_PwHH488U7FVd)

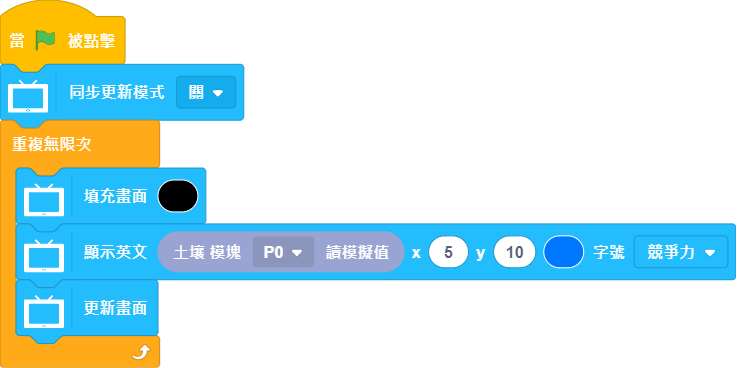

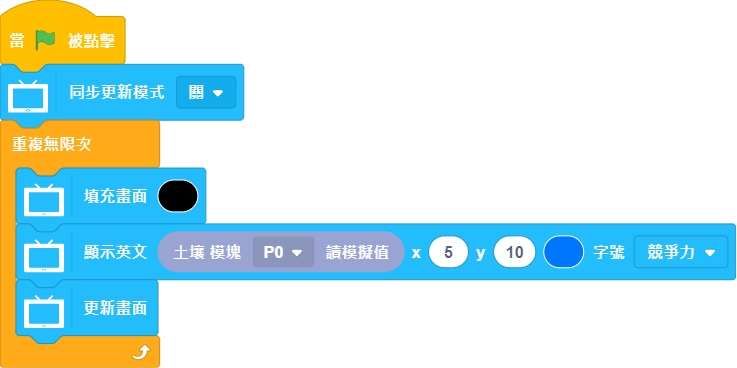

#### Kittenblock Programming Tutorial

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/kbbanner.png)

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/soil3.png)

#### MicroPython Programming Tutorial

```
Moisture(pin)
value()
```

* value(): Returns sensor value

Sample Program

```
from future import *

from sugar import *

moisture_P0 = Moisture('P0')

x = 0

screen.sync = 0
while True:
  screen.fill((0, 0, 0))
  screen.text(moisture_P0.value(),5,10,2,(0, 119, 255))
  screen.refresh()
```
