# Geekservo Motor

Geekservo Motor (HKBD9006A)

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/13_051.png)

This is a small motor compatible with Lego technic parts, the output axle is compatible with Lego technic axles. It is mainly used in powering robots such as cars and driving gears.

### Specifications

* Voltage: 3.3V\~6V
* Rated Voltage: 4.8V
* Rated Current: 200ma
* Blocked Rotor Current: 700ma
* Slipping Current: 450ma
* Maximum Torque: 500g/cm(4.8V)
* Maximum RPM: 70rpm(3V)
* Weight: 12.4g
* Connector: Red and Black Motor Connector

### Precautions

* This is only a small motor, please do not use it in situations requiring a very high torque and voltage.
* Geekservo still functions if the connection is reversed, but the rotation directio will be reversed as well.
* Do not block the rotor for prolonged periods of time or it may damage the motor.

### Dimensions:

#### In Lego units:

* Length: 5
* Width: 2
* Height: 3
* Output axle: Technic Axle

#### In mm units:

* Length: 40mm
* Width: 16mm
* Height: 34.4mm
* Output axle: Technic Axle

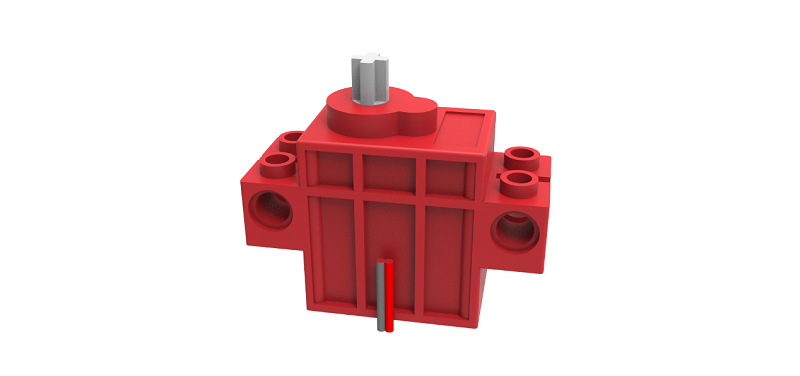

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/13_031.png)

### Geekservo Features

* Clutch Protection:
  * In case of violent turning of the output axle, the clutch is enabled to protect the gears from damage.
* Flexible Installation:
  * Can be mounted on standard Lego bricks or with Technic elements, providing a lot of possibilities for installation.
* Small and lightweight:
  * Suitable for small robotic projects.

### Connection

#### ArmourBit

Connect the motor to the motor ports on the Armourbit.

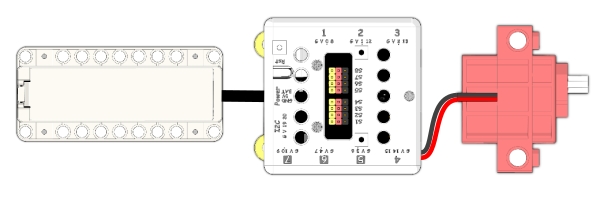

![../\_images/motor\_wire2.png](https://kittenbothk-eng.readthedocs.io/en/latest/_images/motor_wire2.png)

```
Reversing the connection would not damage the motor, but the rotational direction will be reversed.
```

#### RobotBit

Connect the motor to the motor ports on the Robotbit.

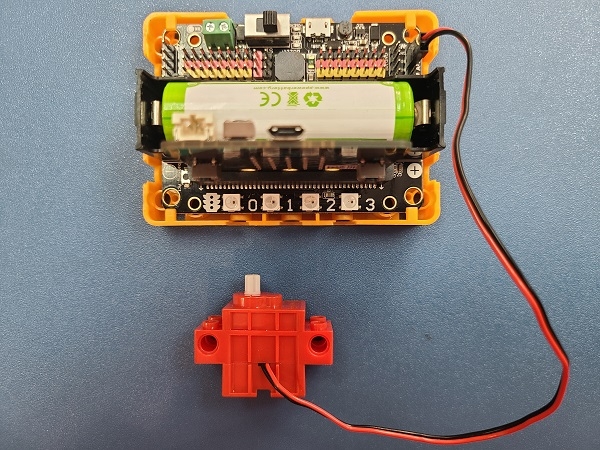

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/motorConRB.jpg)

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/2kmotorConRB1.jpg)

```
Reversing the connection would not damage the motor, but the rotational direction will be reversed.
```

### MakeCode Coding Tutorial

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/mcbanner3.png)

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/acbanner1.png)

#### This module can be used by Micro:bit and Meowbit.

***

#### ArmourBit

#### Load Powerbrick Extension: <https://github.com/KittenBot/pxt-powerbrick>

[Importing Extensions Tutorial](https://sharinghub-eng.kittenbot.hk/programming-platforms/makecode-tutorial/kittenbot-and-makecode)

#### Blocks for controlling motors:

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/motorblocks11.png)

### Programming the motors

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/motor11.png)

[Sample Code Link](https://makecode.microbit.org/_RYHivyayYL4q)

#### Makecode Coding Tutorial Video

{% embed url="<https://www.youtube.com/watch?v=gUR2DbgVTCQ>" %}

***

#### RobotBit

#### Load Robotbit Extension:

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/robotbitExtension1.png)

[Importing Extensions Tutorial](https://sharinghub-eng.kittenbot.hk/programming-platforms/makecode-tutorial/kittenbot-and-makecode)

#### Blocks for controlling motors:

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/2kmotorblocks_rb1.png)

#### Programming the motors

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/2kmotorcode_rb1.png)

[Sample Code Link](https://makecode.microbit.org/_c8F80i0Ta5cF)

***

#### Meowbit:

#### Load Robotbit Extension: <https://github.com/KittenBot/meow-robotbit>

[Importing Extensions Tutorial](https://sharinghub-eng.kittenbot.hk/programming-platforms/makecode-tutorial/kittenbot-and-makecode)

#### Blocks for controlling motors:

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/motorblocks11.png)

#### Programming the motors:

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/2kmotorcode_meow1.png)

[Sample Code Link](https://makecode.com/_2z0C8v6XAC5y)

### Extension Version and Updates

There may be updates to extensions periodically, please refer to the following link to update/downgrade your extension.

[Makecode Extension Update](https://sharinghub-eng.kittenbot.hk/programming-platforms/makecode-tutorial/makecode-extension-updates)

### KittenBlock Coding Tutorial

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/kbbanner1.png)

***

#### Armourbit

#### Load Powerbrick Extension

Open the hardware menu and select Powerbrick to load the extension for Micro:bit and Powerbrick.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/addextension2.png)

#### Blocks for controlling motors:

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/kbmotorblocks11.png)

#### Programming the motors

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/kbmotor11.png)

***

#### Robotbit

#### Load Robotbit Extension

Open the hardware menu and select Micro:bit to load the extension for Micro:bit and Robotbit.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/addRB11.png)

#### Blocks for controlling motors:

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/rbmotorblocks1.png)

#### Programming the motors

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/rbmotorcode1.png)

### FAQ

1: The Micro:bit does not react when I click the programming blocks.

Make sure the Micro:bit has been connected to the Kittenblock and then try flashing the firmware.
