As the name suggests, FutureBoard is a main control board designed for STEM education in the future. It has many built-in sensors just like the Micro:bit, but unlike the Micro:bit, FutureBoard features a TFT screen capable of displaying full colors. This allows students to display information in real-time and to unlock even more potential for more interesting coding projects.
As STEM education shifts its focus towards AI and IoT, FutureBoard is equipped to satisfy these requirements. Based on the ESP32 chipset, FutureBoard is able to connect to the Wifi for IoT projects, catering to the trend for the current STEM Education development. FutureBoard retains the design for the edge connectors from the BBC Micro:bit, allowing for easy expandability and compatibility with existing sensors and modules, bridging the past and the future.
FutureBoard will be a great companion for STEM education.
Schools and Training Institutes
Makers and anyone interested in coding
Supports graphical coding, easier for beginners to learn.
Supports MicroPython coding, allowing for more advanced learning.
Has a full color TFT screen.
Supports Voice Recognition of Cantonese, English or Mandarin, making AI more accessible.
The speaker and RGB light strip can add sounds and lights to your projects.
The specially designed FutureOS GUI allows storing and choosing of Python files to run.
Built-in Wifi means IoT projects are easy to do.
The ABS plastic shell is aesthetically pleasing and can protect the components.

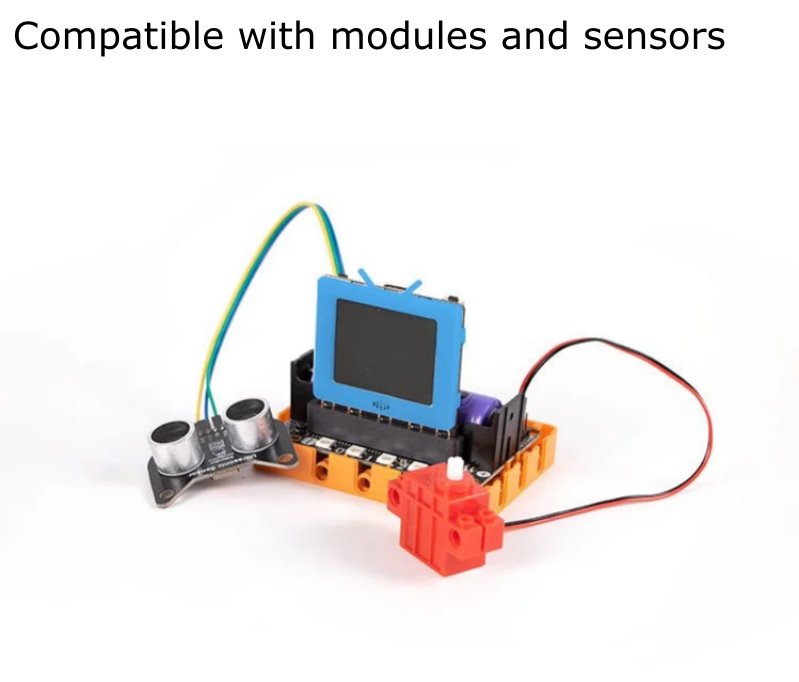

The edge connectors are identical with the Micro:bit, allowing schools to use the existing modules.
Built-in wireless 2.4GHz radio allows communication between devices.
Built-in charging circuit and the 3.7 Lithium Battery allows the FutureBoard to run by itself.
Equipped with a USB Type C connector for ease of connection.
Pocket sized and comes with lanyard hole for portability.
Supports wireless flashing of programs.
Size: 51.6x51.6x11mm
Weight: 22.6g

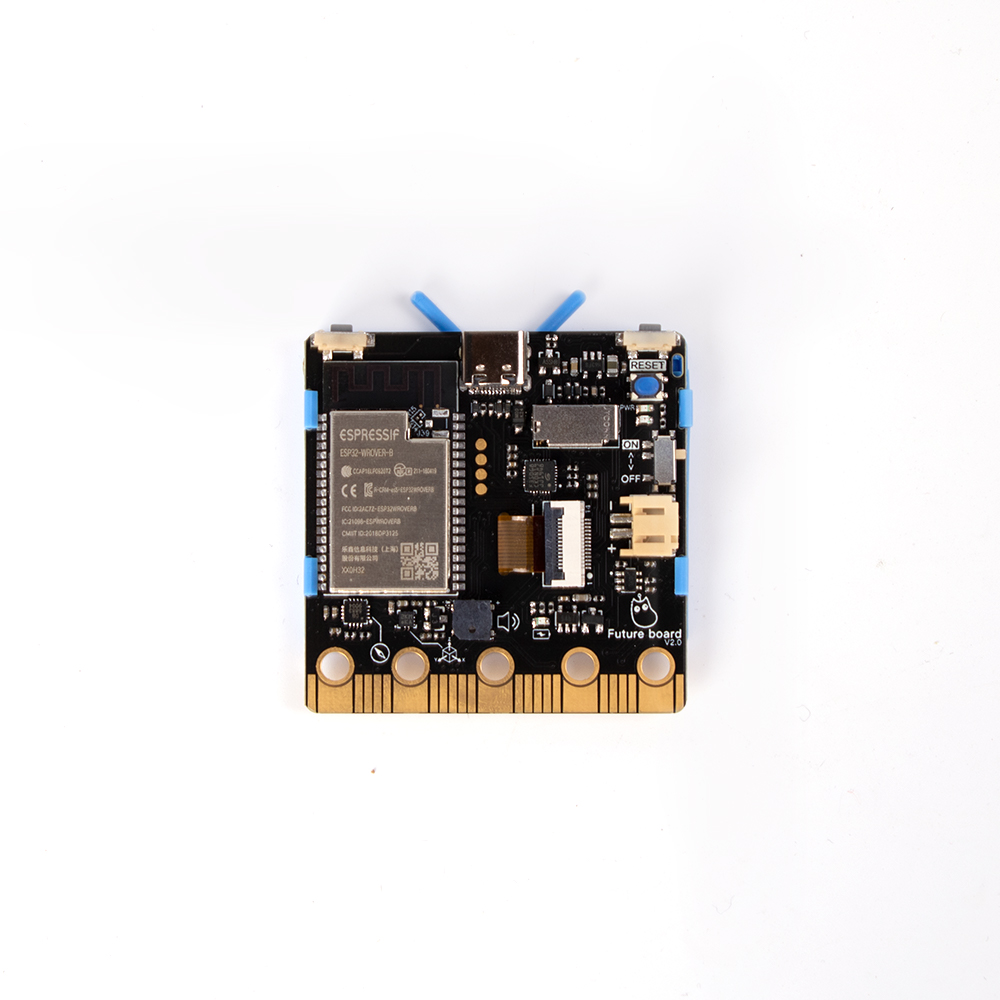

Chipset: EPS32-WROVER-B
Frequency: 240MHz
Flash Memory: 4M
RAM: 8M
Connectors: USB Type C / 3.7v JST
Card Slot: MicroSD (Class 10 or above recommended)
Screen Type: TFT Full Color
Resolution: 160x128
Screen Size: 1.8 inches
GPIO: 19Pins

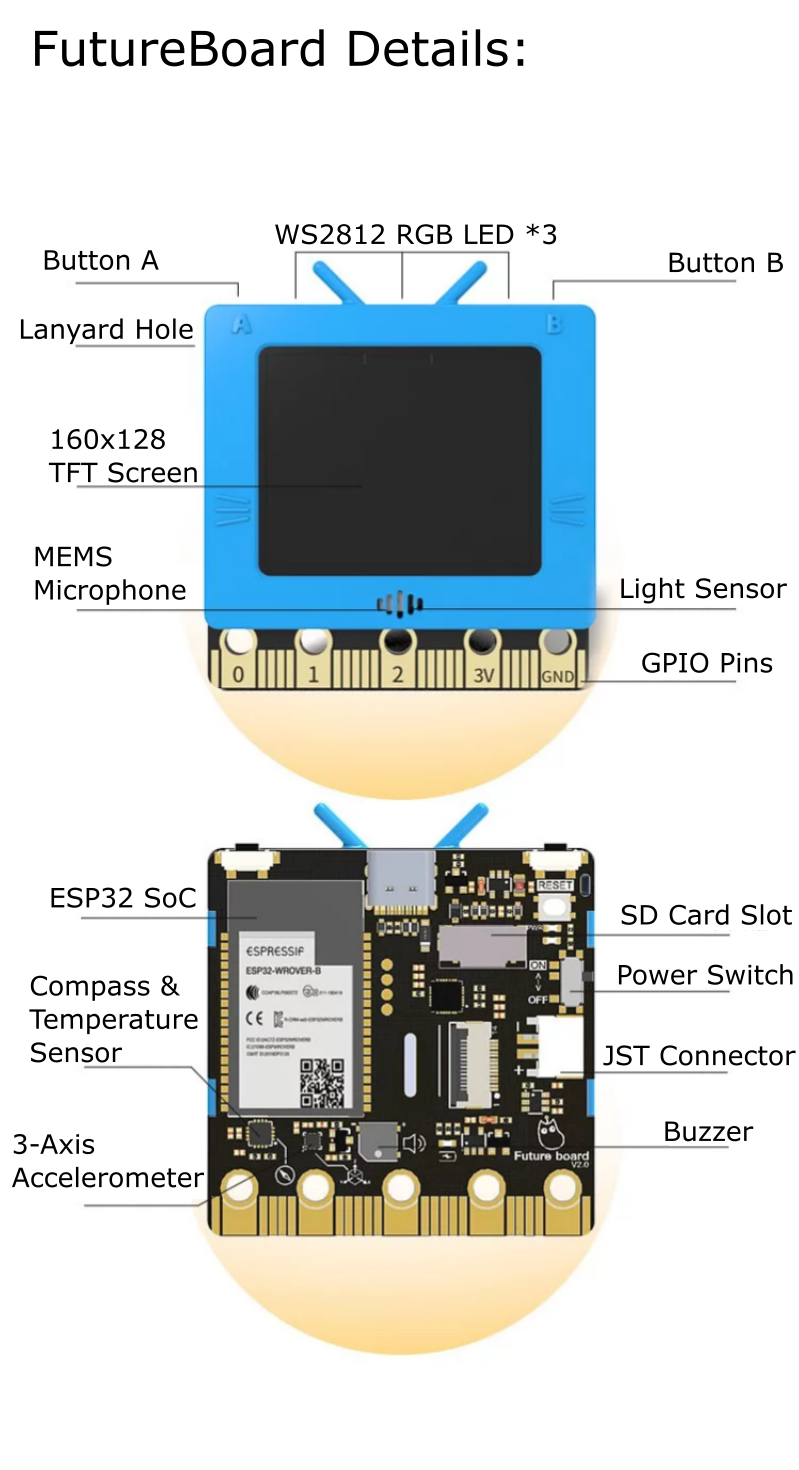

160x128 TFT Screen
2 Programmable Buttons
Buzzer
Ambient Light Sensor
Temperature Sensor
Magnetic Sensor
I2S Microphone
3-Axis Accelerometer
19 GPIO Pins
3 RGB LEDs
WiFi and Bluetooth Connectivity
USB Type C Port
JST Battery Port
SD Card Slot

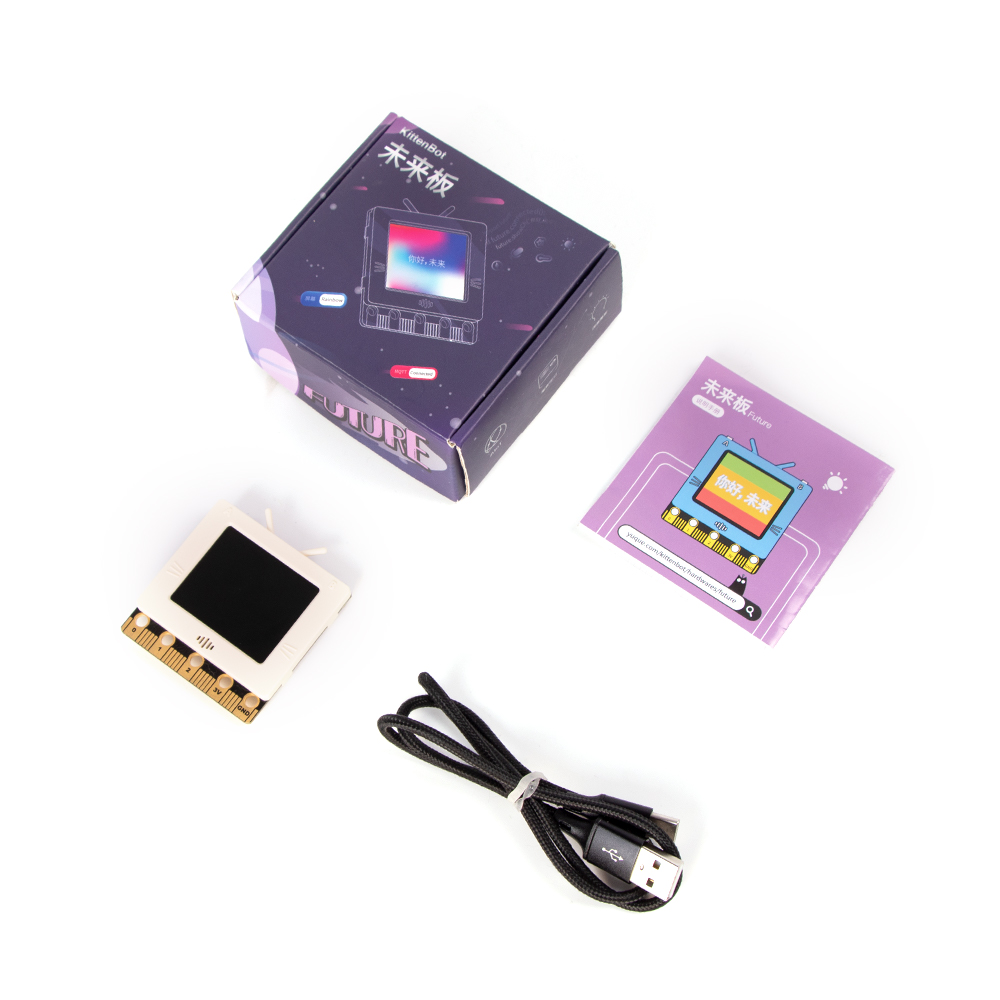

Futureboard with 128MB SD Card
USB Type C Cable
Lanyard
Kittenblock
KittenCode
MicroPython
