# Ultrasound and Sound Module

![](https://kittenbothk.readthedocs.io/en/latest/_images/06_04.png)

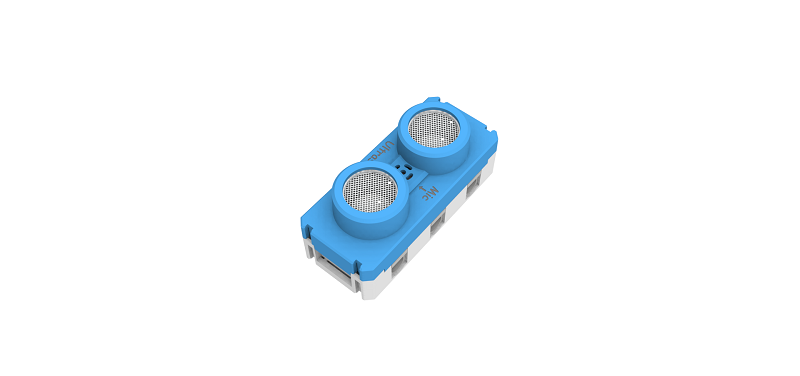

This module combines ultrasound sensor and a microphone into the same module.

The ultrasound sensor is used to measure the distance of objects, the microphone is used to measure the loudness.

![](https://kittenbothk.readthedocs.io/en/latest/_images/IMG_2577.GIF)

![](https://kittenbothk.readthedocs.io/en/latest/_images/IMG_2576.GIF)

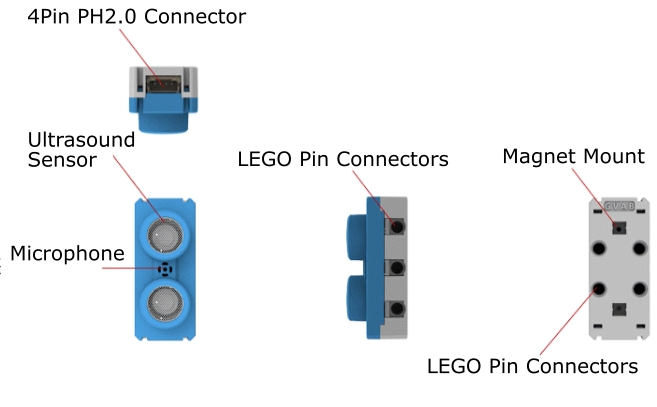

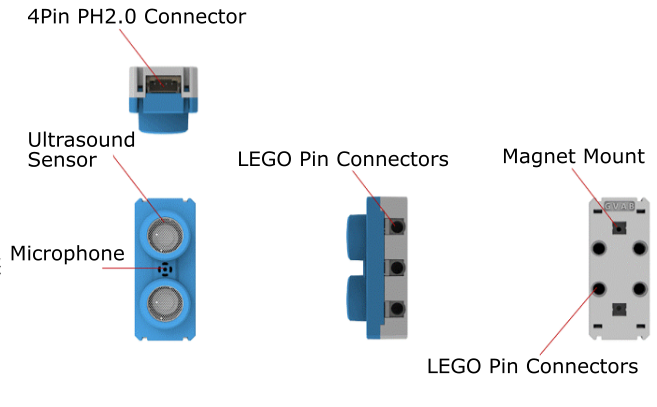

### Details

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/06_011.png)

### Specifications

* Voltage: 3V-5V
* Dimensions: 56mm X 24mm X 16mm
* Connector: 4Pin PH2.0
* Ultrasound Detection Range: 4cm-200cm(Recommended)
* Analog Return Value Range: 0-1023

### Precautions

* Ultrasound works better on items with smooth surfaces, the smooth surface should be perpendicular to the module.
* Ultrasound emits signal in the shape of an arc, make sure there is no obstacle in the signal range.
* The microphone only determines loudness of a sound, it can’t measure decibels. Measuring decibels require professional equipment.

### Connecting the module

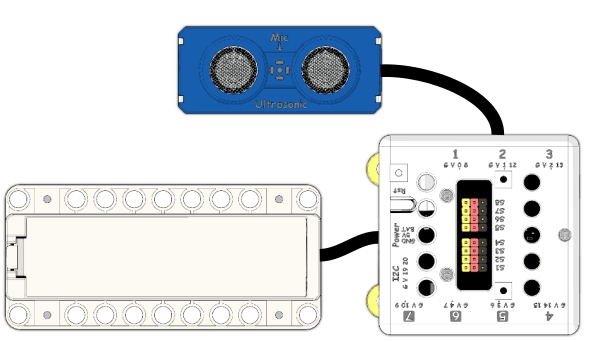

Connect the Ultrasound Module to Armourbit with a 4Pin cable.

![](https://kittenbothk.readthedocs.io/en/latest/_images/ultrasound_wire.png)

### MakeCode Coding Tutorial

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/mcbanner.png)

#### Load Powerbrick Extension:

#### Search "Powerbrick" in the search bar.

![](https://kittenbothk.readthedocs.io/en/latest/_images/powerbrick_search.png)

#### Or search the following link.

<https://github.com/KittenBot/pxt-powerbrick>

#### Ultrasound Module Blocks:

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/ultrasoundblocks1.png)

#### Measuring distance

{% embed url="<https://makecode.microbit.org/_VUTJ1xDtzVfR>" %}

[Sample Program](https://makecode.microbit.org/_VUTJ1xDtzVfR)

#### Measuring ambient noise

{% embed url="<https://makecode.microbit.org/_RKL0iE4iP63i>" %}

[Sample Program](https://makecode.microbit.org/_RKL0iE4iP63i)

#### Makecode Video

{% embed url="<https://www.youtube.com/watch?v=Jwj449zjnYE>" %}

#### Demo Video

{% embed url="<https://www.youtube.com/watch?v=sNdLvYbQ930>" %}

### Extension Version and Update

There may be updates to extensions periodically, please refer to the following link to update/downgrade your extension.

[MakeCode Extension Update](/programming-platforms/makecode-tutorial/makecode-extension-updates.md)

### KittenBlock Coding Tutorial

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/kbbanner.png)

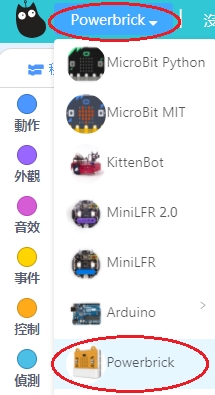

#### Load Powerbrick Extension

Select Powerbrick from the hardware column.

![](https://kittenbothk.readthedocs.io/en/latest/_images/addextension1.png)

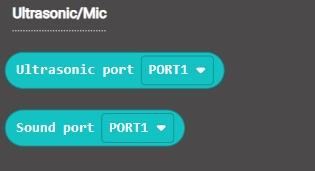

#### Ultrasound Module Blocks:

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/kbultrasoundblocks1.png)

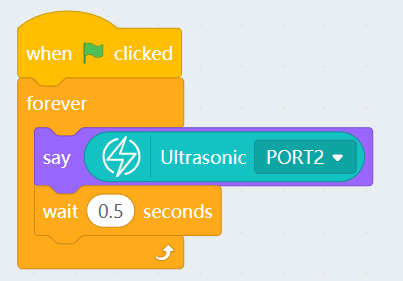

#### Measuring distance

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/kbultrasounddist1.png)

[Sample Code Download](https://bit.ly/PowerbrickM4_01sb3)

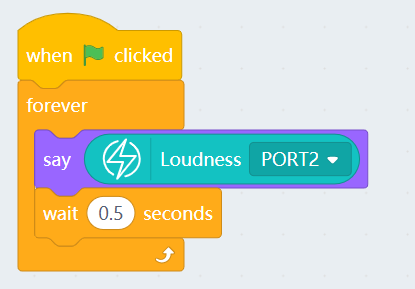

#### Measuring ambient noise

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/kbultrasoundlevel1.png)

[Sample Code Download](https://bit.ly/PowerbrickM4_02sb3)

### FAQ

1：Why is there no reaction when I click the blocks?

Make sure you have connected the Micro:bit correctly and flash the firmware again.


---
