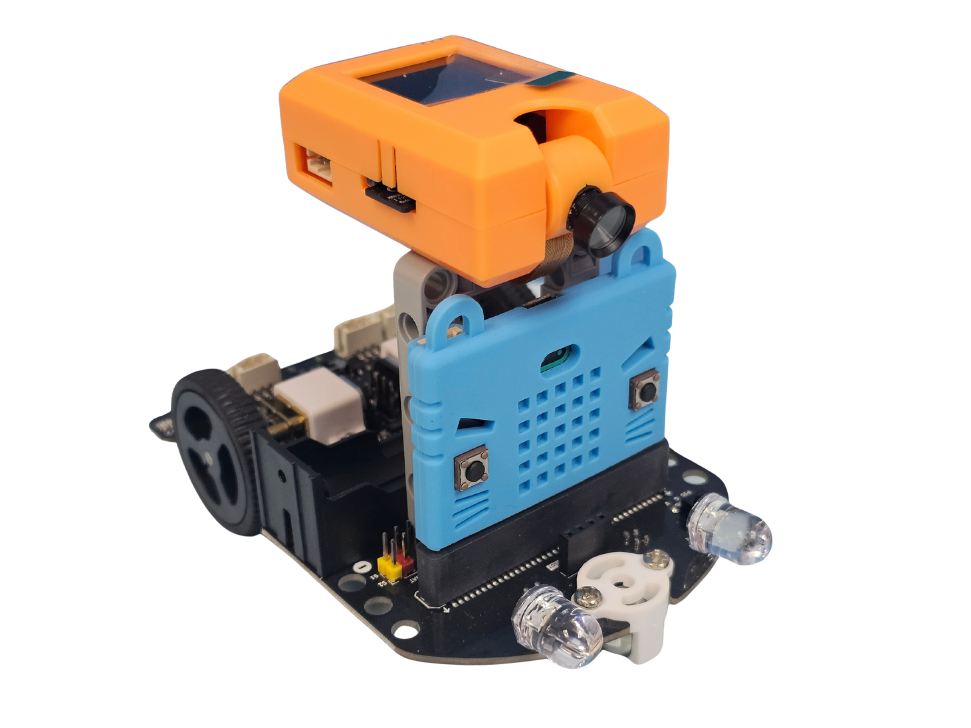

# TabbyBot AI Cart

<figure><img src="https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F6uJvpXC43onNIIwhMlWo%2Fuploads%2FWqLWgKSLKhBPbvNKcciF%2Ftabbybot_transparent1.png?alt=media&#x26;token=c846bbd5-e3c8-4b6b-8a23-1d5c7e2205f3" alt=""><figcaption></figcaption></figure>

TabbyBot is a STEM robot car designed for MicroBit programming. It is equipped with an 18650 lithium battery, providing enough power to drive power-hungry modules such as the AI camera KOI or the ASR voice module. The board includes a charging port for convenient charging and discharging.

The car comes with various programmable resources, including white LED headlights, RGB LED lights, infrared line-following sensors, dual motors, servo drivers, and ultrasonic sensors. Additionally, it can connect to more sensors through its interfaces.

The car also features LEGO-compatible mounting holes for expanding with LEGO structural components.

### Special Features

* Basic Programming Cart for Beginners
  * Graphical Programming
  * No assembly and wiring required
* Various Programmable Resources
  * RGB Lights, Headlights, InfraRed Sensors, Twin Motors, Servo Driver, Ultrasonic Sensor
* Compatible with KOI 2
  * Applications with AI technology

### Kit Contents

* Tabbybot Chassis \*1
* Ultrasonic Senor \*1
* KOI 2 AI Camera \*1
* 18650 Lithium Battery \*1
* USB Cable \*1
* Line Tracing Map\*1
* Road Signs \*1 set
* Plastic Building Bricks \*1 set

### Kit Parameters

* Battery: 18650 Lithium Battery
* Charging: MicroUSB
* Main Controller Support: Micro:bit
* Onboard Resources: Motors \*2, White LED \*2, RGB LED\*2, InfraRed Tracker \*2、InfraRed Receiver \*1、Ultrasonic Sensor Port \*1、Servo Port \*2、3Pin IO Port \*2、4Pin IO Port \*1、I2C Port \*1

### Sample Cases

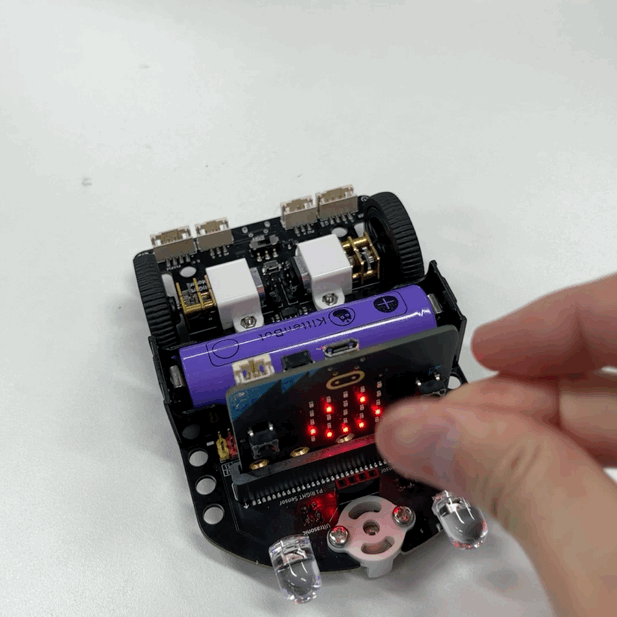

#### Scaredy Cart

<figure><img src="https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F6uJvpXC43onNIIwhMlWo%2Fuploads%2FxMIi9qKZ4IloK7ixvIIw%2Fscared.gif?alt=media&#x26;token=7ff74fca-f82d-49e6-a06d-e325a07c85e5" alt=""><figcaption></figcaption></figure>

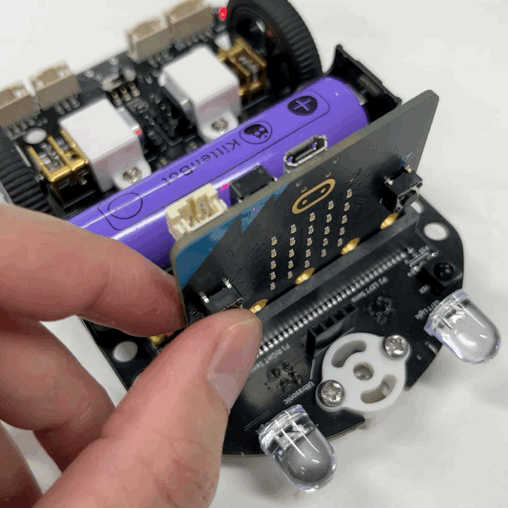

#### Light Show

<figure><img src="https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F6uJvpXC43onNIIwhMlWo%2Fuploads%2FMsM2SEtho7viepqw71tO%2Flightshow.gif?alt=media&#x26;token=c753ccb1-f014-46cb-b945-1125f3f94f5b" alt=""><figcaption><p>\</p></figcaption></figure>

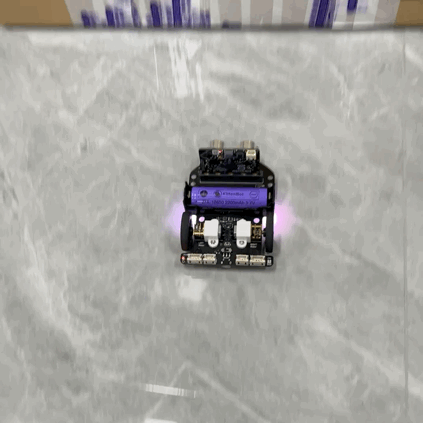

#### Obstacle Avoiding Cart

<figure><img src="https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F6uJvpXC43onNIIwhMlWo%2Fuploads%2Fb9ZBDjSUIengo468qgat%2Fultrasound.gif?alt=media&#x26;token=f47cb96e-d5cf-441d-ba0e-b91d18bb5fcb" alt=""><figcaption></figcaption></figure>

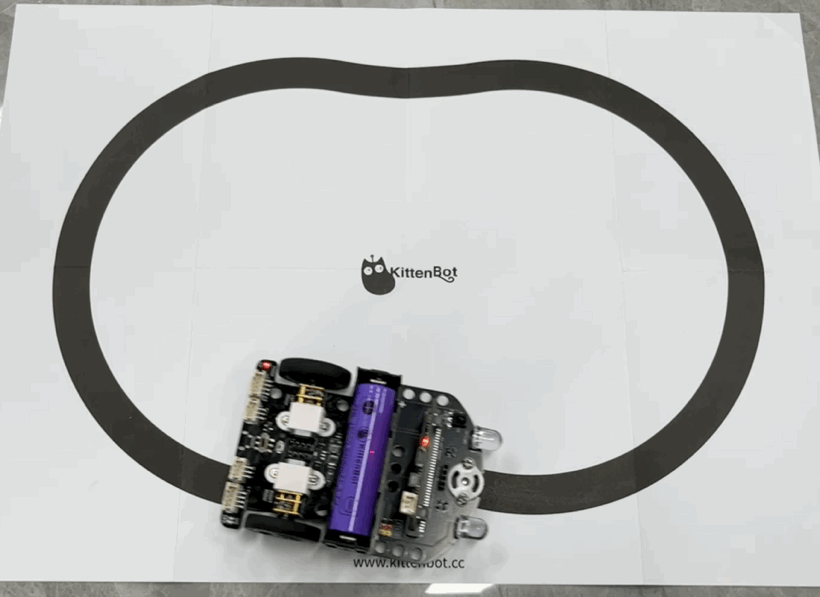

#### Line Following Cart

<figure><img src="https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F6uJvpXC43onNIIwhMlWo%2Fuploads%2FD4cMSCFNP5Tu3WFCW5nS%2Flinefollow.gif?alt=media&#x26;token=7e98626b-3d33-4f57-9120-58b3c9c5dcf1" alt=""><figcaption></figcaption></figure>

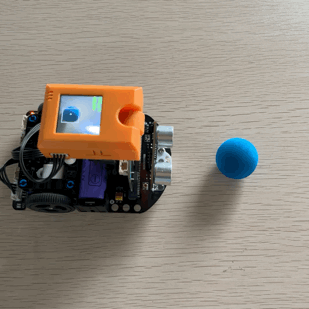

#### Ball Tracking Cart

<figure><img src="https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F6uJvpXC43onNIIwhMlWo%2Fuploads%2FhasjSvMthQ2mtNLsBA9F%2Fballtracking.gif?alt=media&#x26;token=3d6b41c5-2a28-4673-8bfc-00591f58d21e" alt=""><figcaption></figcaption></figure>

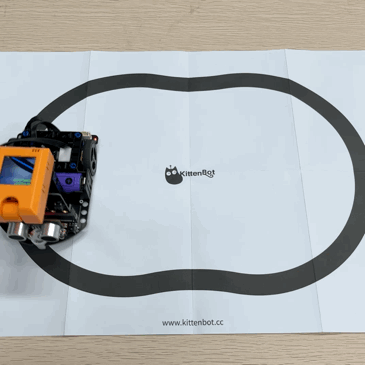

#### Visual Line Follower

<figure><img src="https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F6uJvpXC43onNIIwhMlWo%2Fuploads%2FddYsTT8GPKEUUxDyYqGD%2Fvisuallinefollow.gif?alt=media&#x26;token=924ff3c6-aa86-48da-b565-e5dab3723aac" alt=""><figcaption></figcaption></figure>

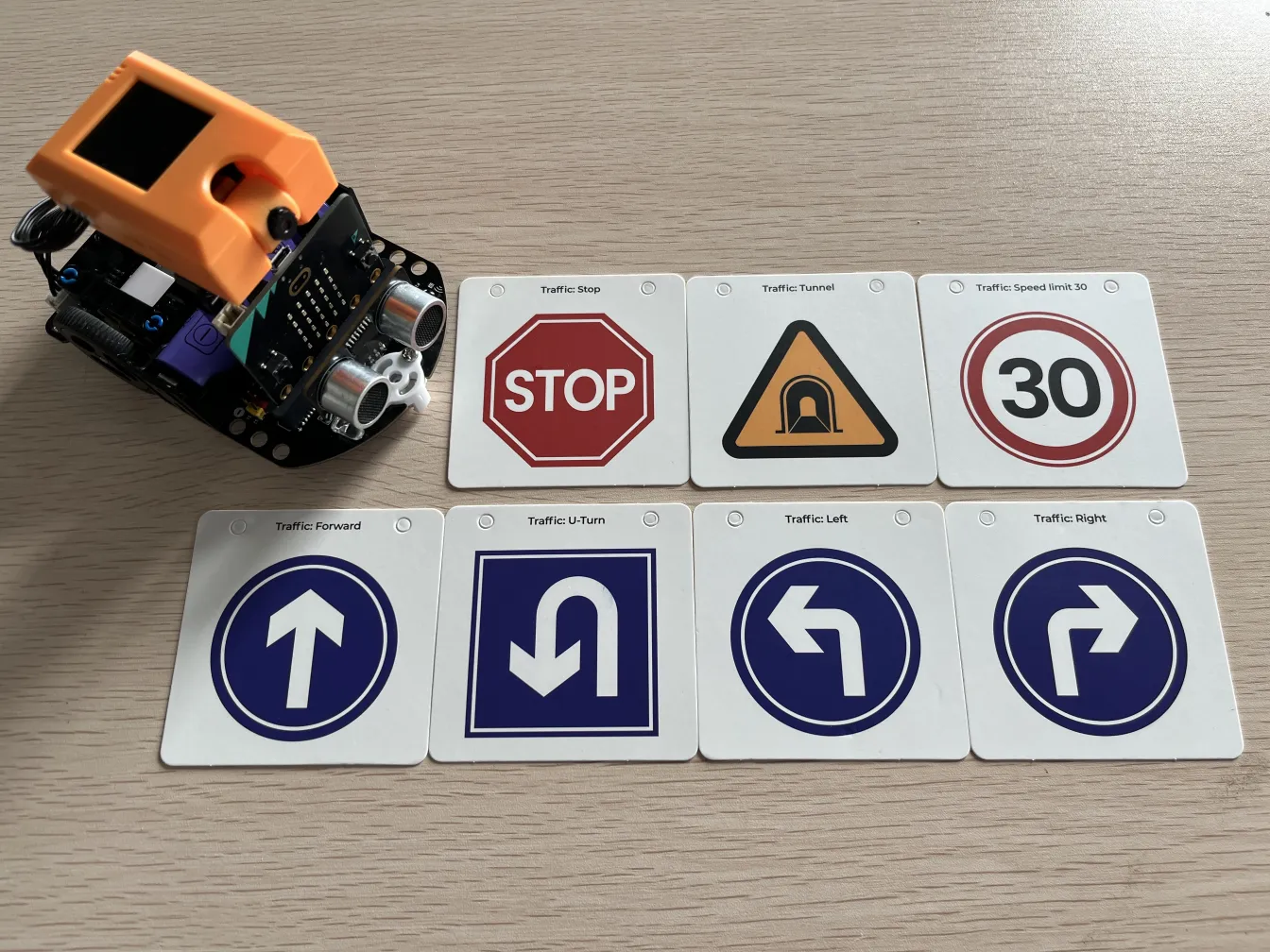

#### Road Sign Tracking Cart

<figure><img src="https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F6uJvpXC43onNIIwhMlWo%2Fuploads%2FFJG3lSXRIcjApFqKws0c%2Froadsign.jpg?alt=media&#x26;token=c4709d31-120e-4174-821f-9b27ab2005e8" alt=""><figcaption></figcaption></figure>
