# KOI Programming with KittenBlock QuickStart

KOI can also be programmed using KittenBlock.

### Connecting the KOI

First, we need to establish connection with the KOI in KittenBlock.

Connect your KOI to the computer using a USB cable.

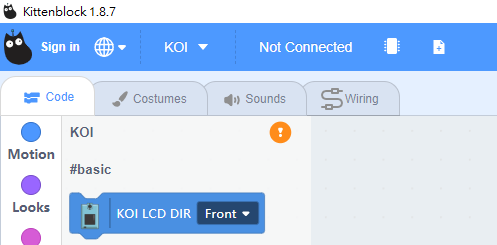

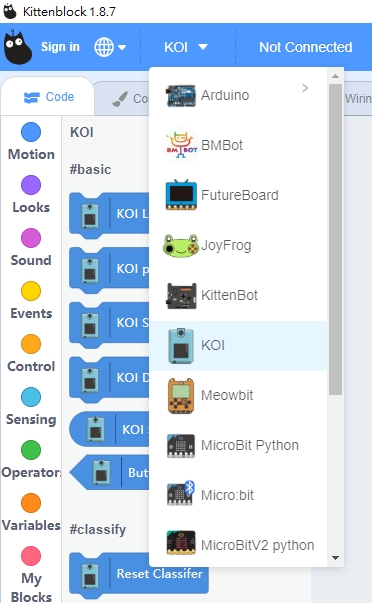

#### Select KOI from the hardware selector.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/connect1.png)

#### Click “Connect” or click the exclamation mark icon.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/connect2.png)

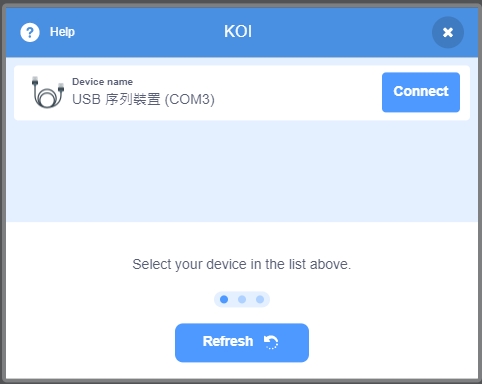

#### Click “Connect”.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/connect3.png)

#### Wait for a few seconds.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/connect4.png)

#### Test the connection by clicking on any block.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/connect5.png)

### KOI Programming on KittenBlock Guide

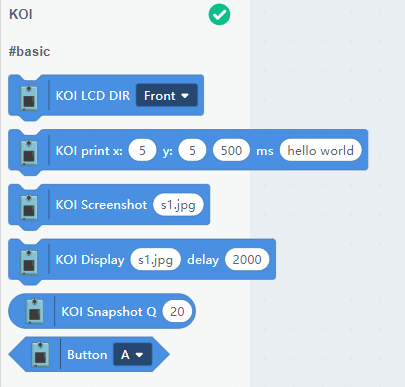

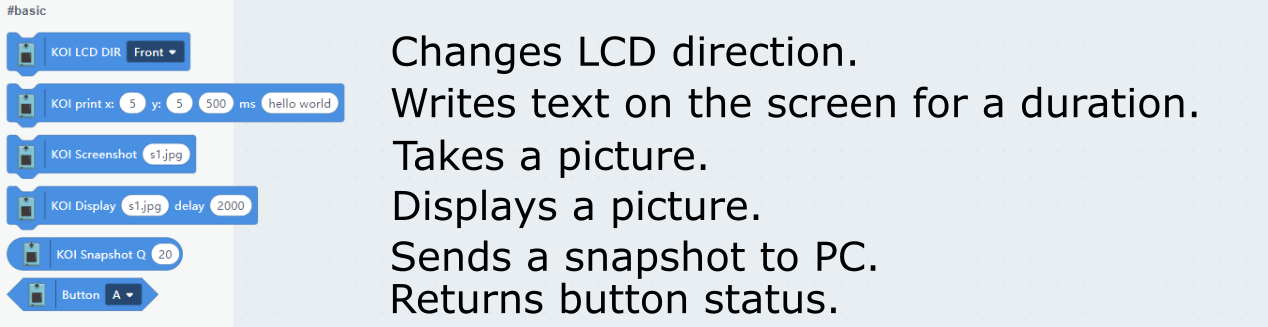

### Basic Operations

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/blocks1.png)

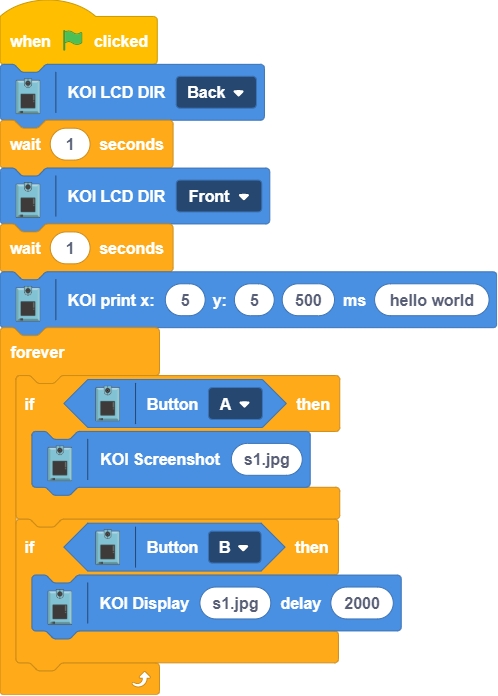

#### Sample Program

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/code1.png)

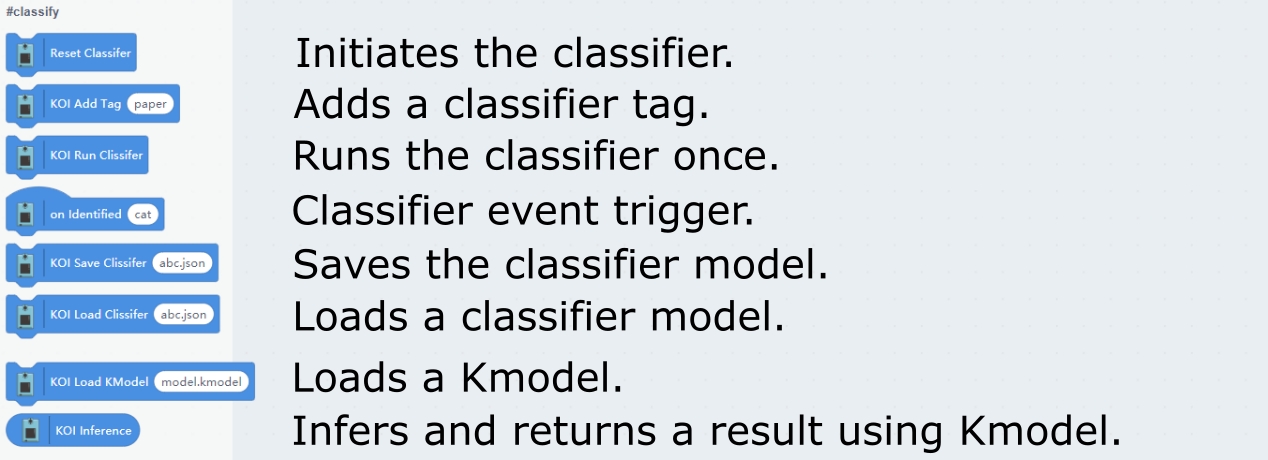

### Image Classifier

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/blocks2.png)

#### Sample Program

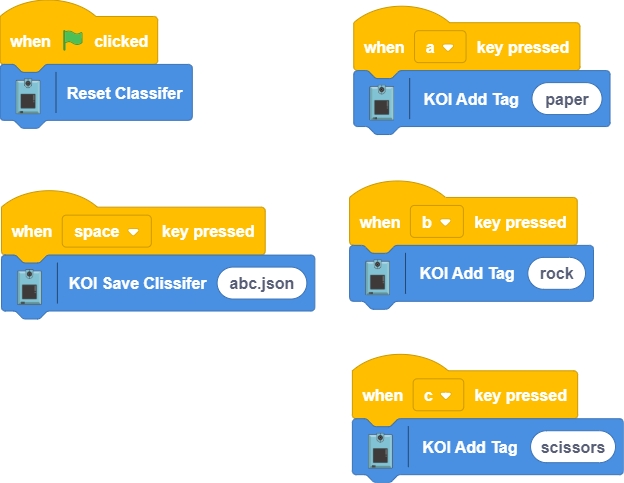

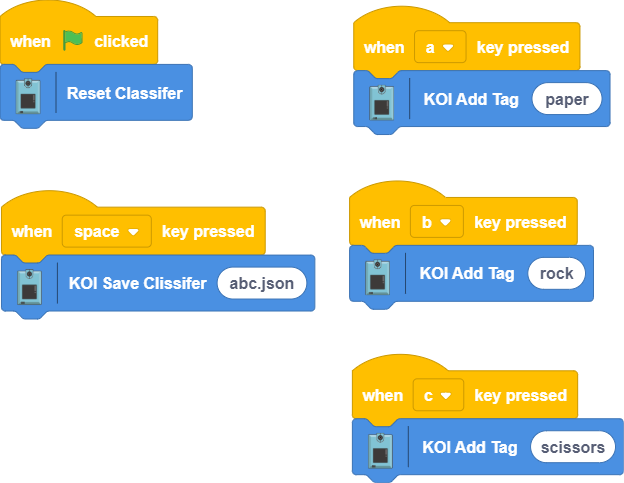

**Model Training**

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/code2.png)

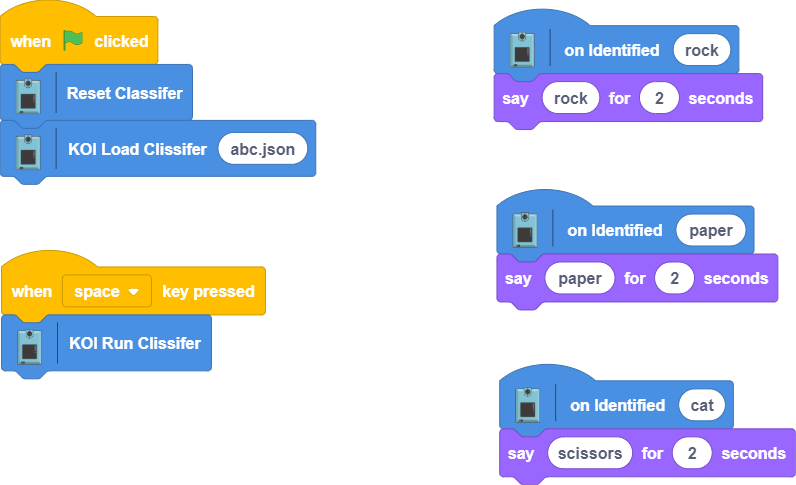

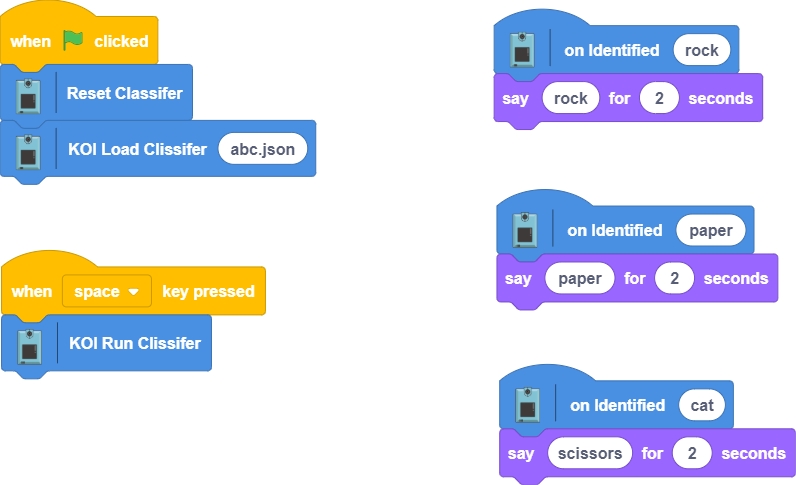

**Image Classification**

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/code3.png)

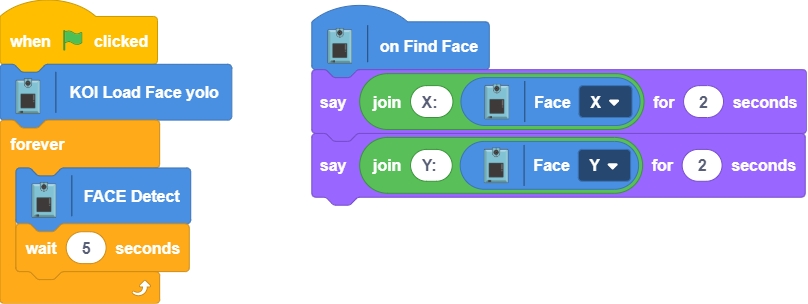

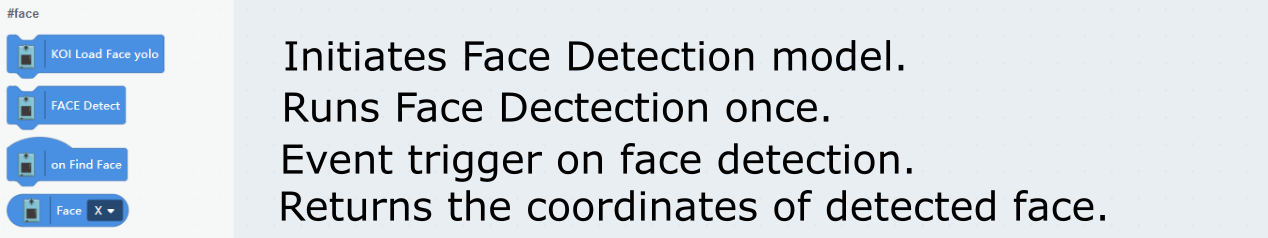

### Face Detection

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/blocks3.png)

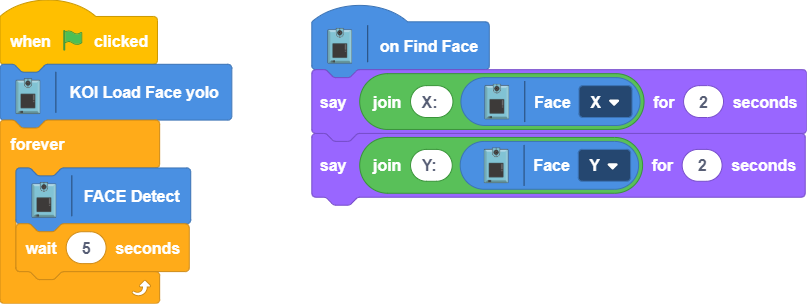

#### Sample Program

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/code4.png)

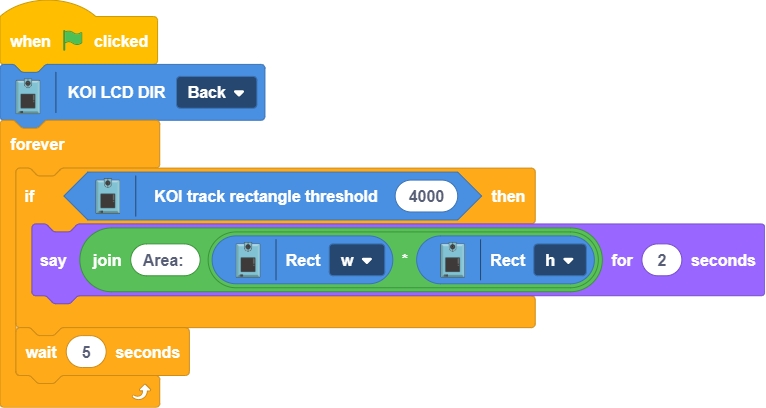

### Geometric Shapes Detection

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/blocks4.png)

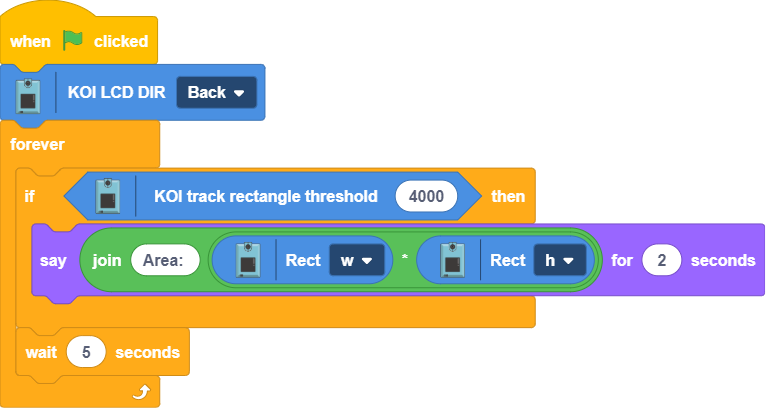

#### Sample Program

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/code5.png)

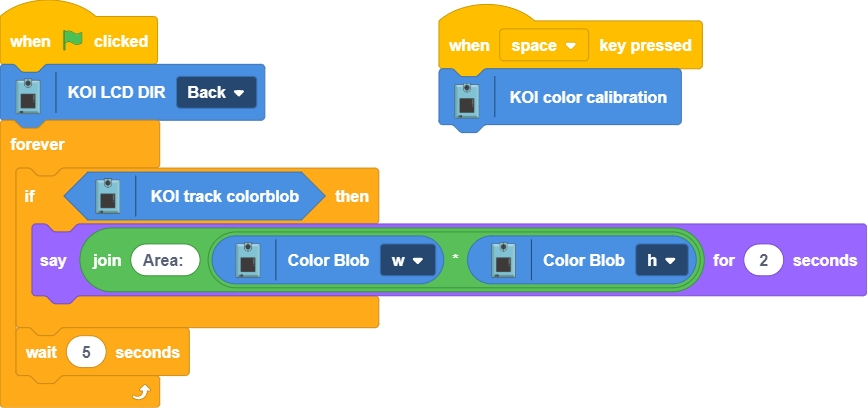

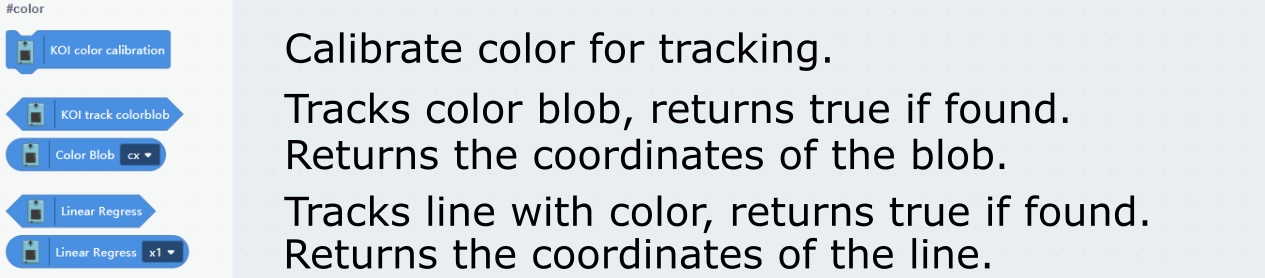

### Color Tracking

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/blocks5.png)

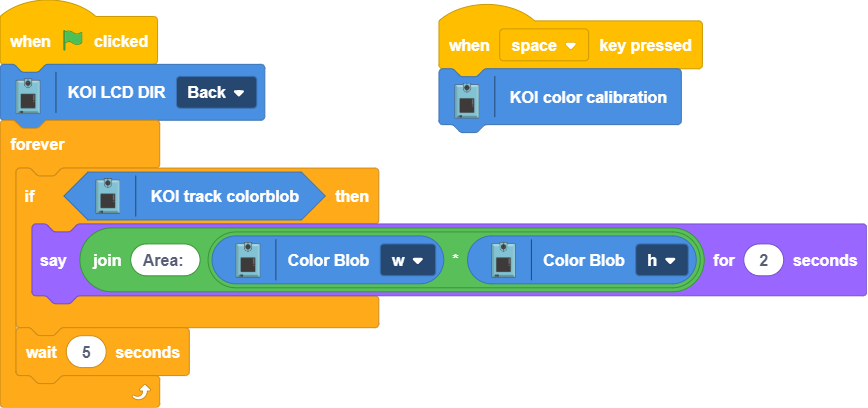

#### Sample Program

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/code6.png)

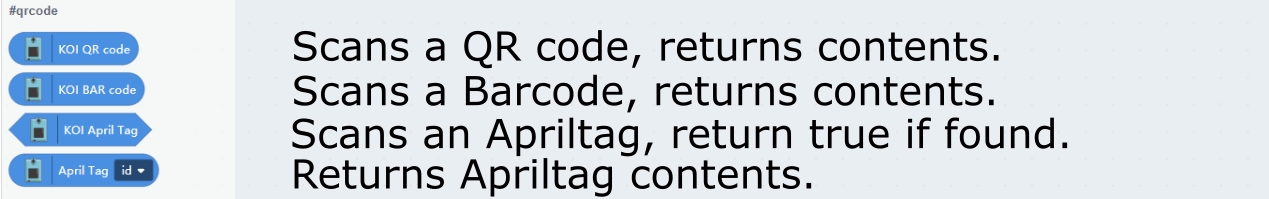

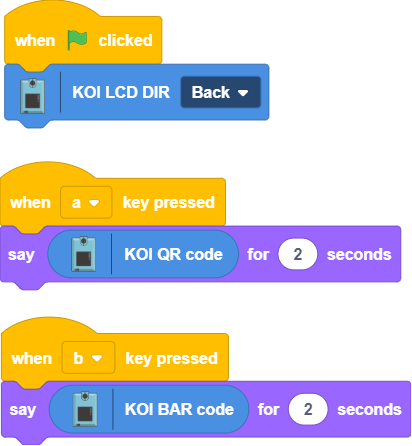

### Barcode and QR code Scanner

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/blocks6.png)

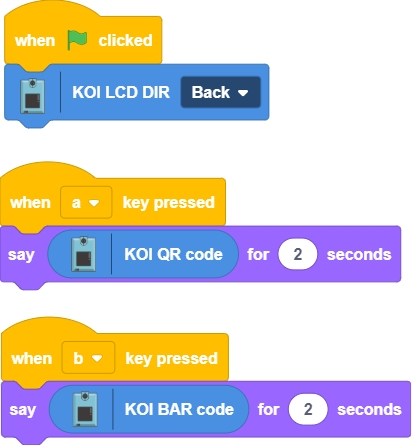

#### Sample Program

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/code7.png)

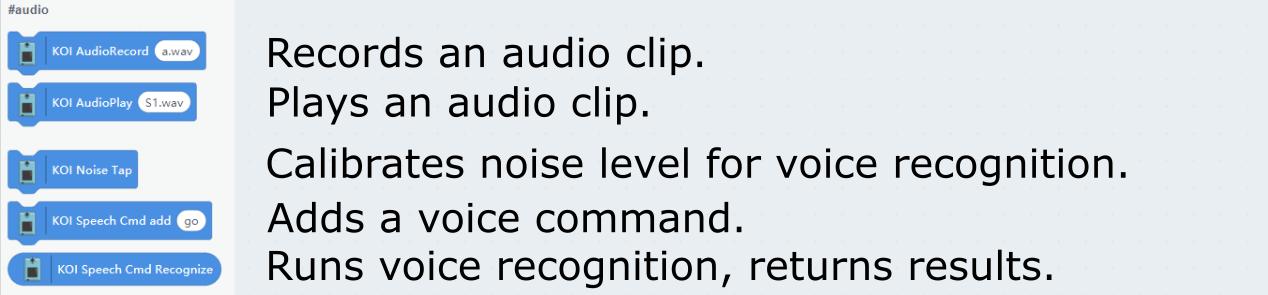

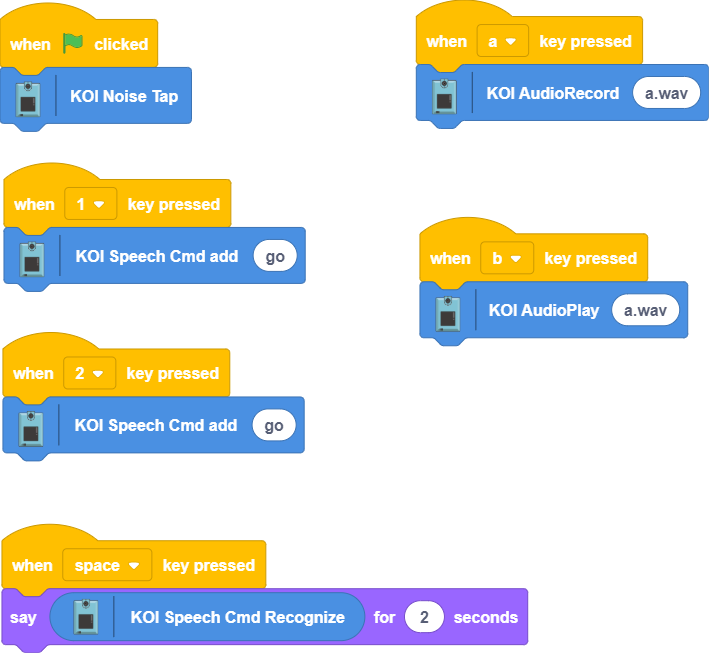

### Voice Recognition

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/blocks7.png)

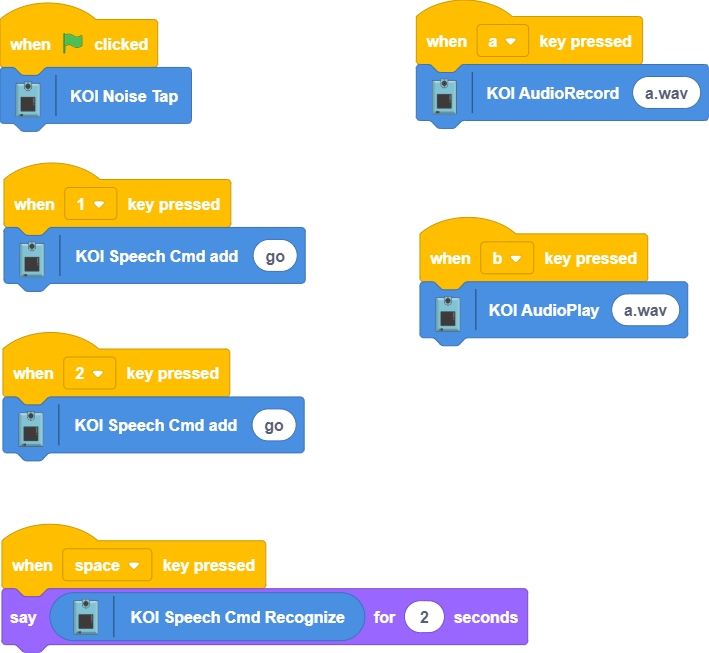

#### Sample Program

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/code8.png)

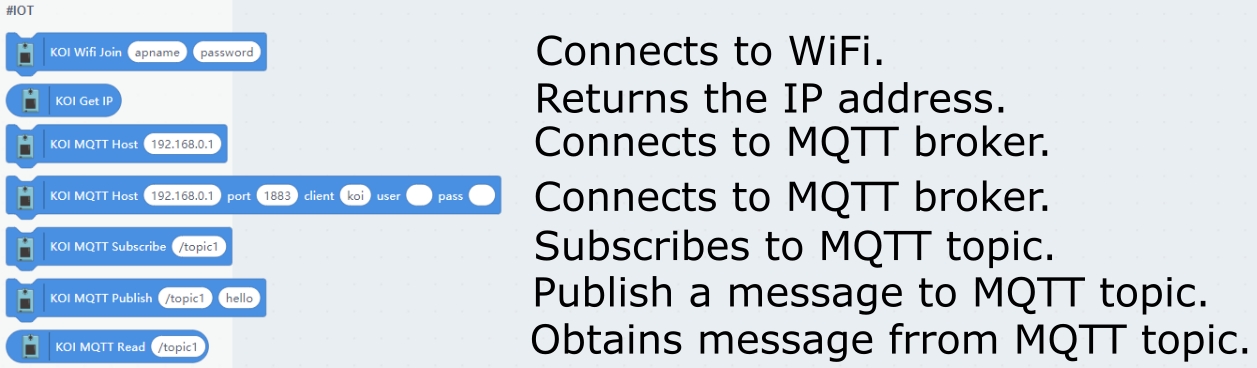

### IOT

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/blocks8.png)

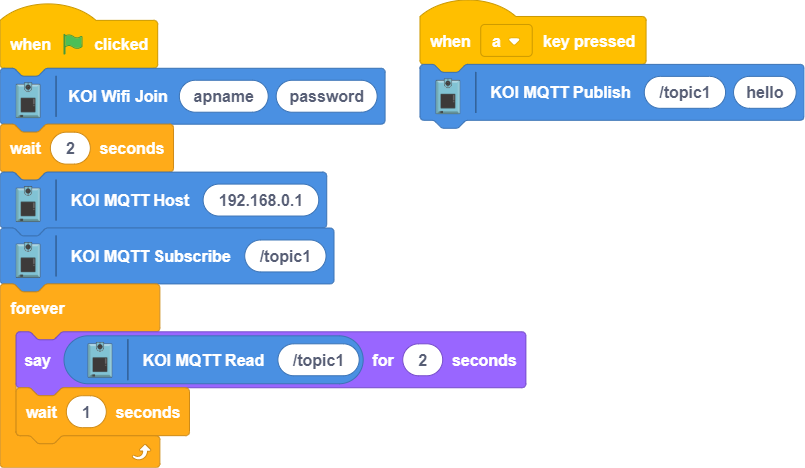

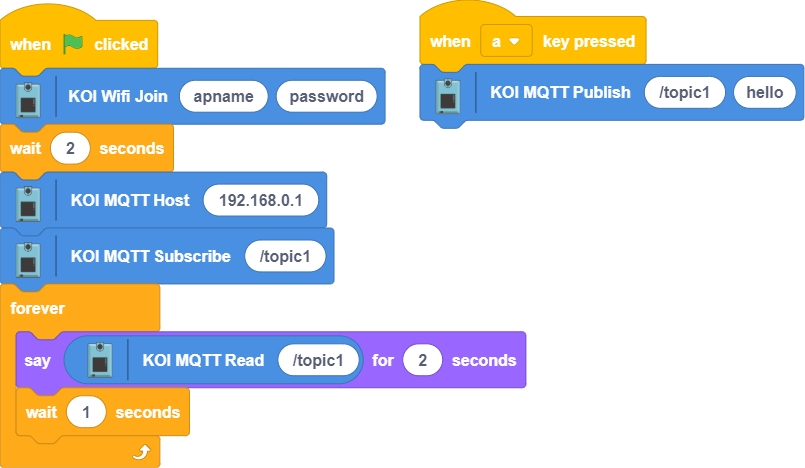

#### Sample Program

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/code9.png)

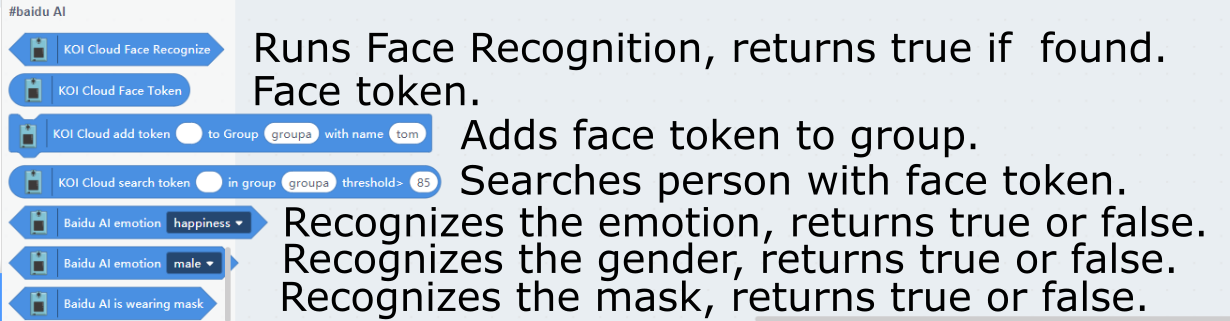

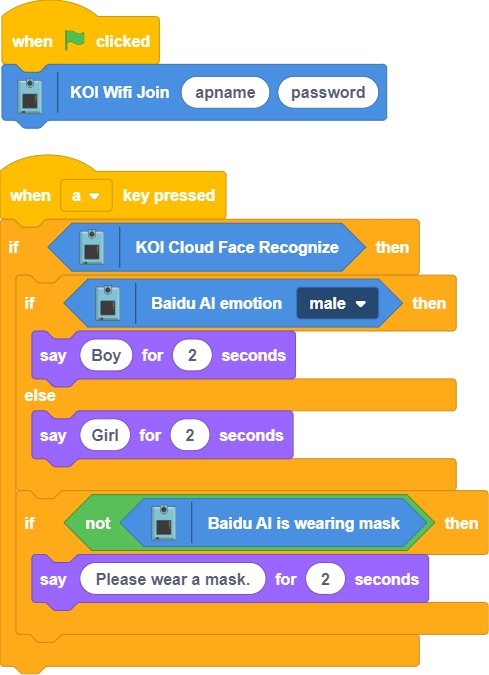

### Face Recognition(Requires Internet Connection)

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/blocks9.png)

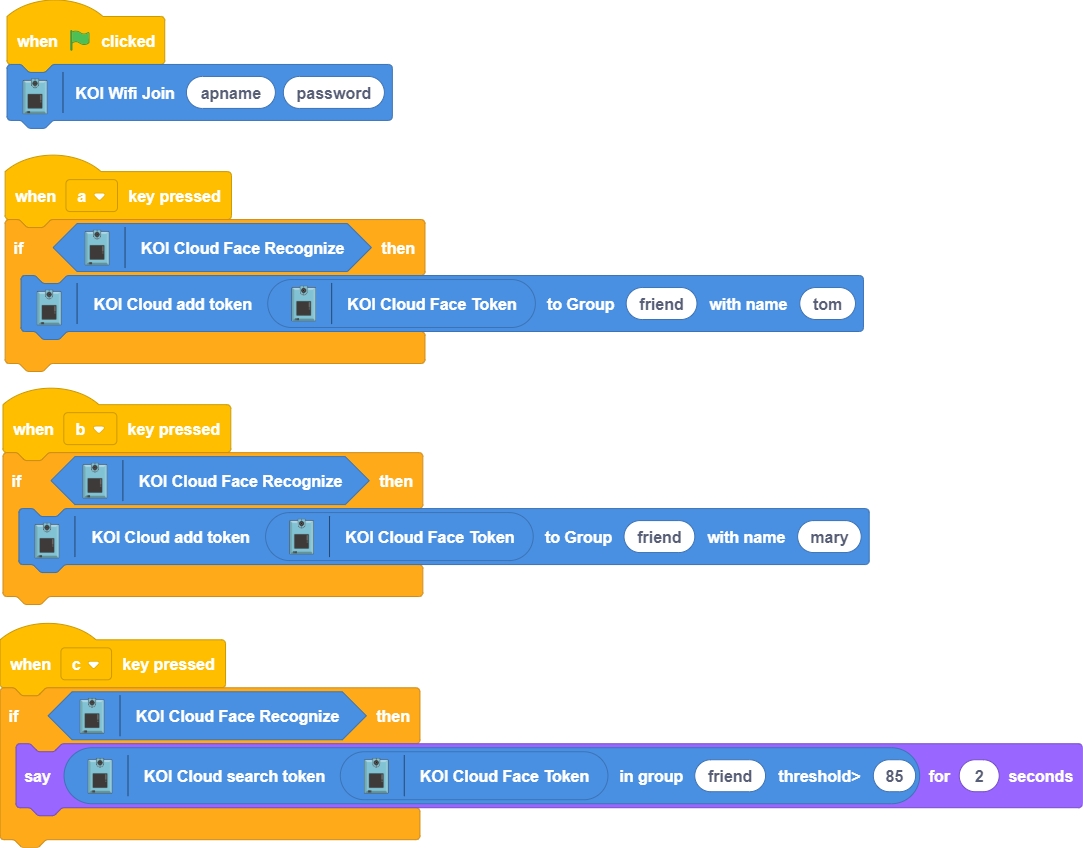

#### Sample Program

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/code10.png)

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/code11.png)

### Troubleshooting

#### 1. Clicking on the blocks has no effect after connecting the KOI.

**The firmware may be outdated, use the firmware update function to undate the firmware.**

#### 2. Running the image classifier returns an undefined error.

**The Classifier hasn’t been reset, reset the classifier and try again.**

#### 3. Can I upload the program to run on the KOI?[](https://kittenbothk-eng.readthedocs.io/en/latest/AI%20Cam/kittenblock/kittenblock.html#can-i-upload-the-program-to-run-on-the-koi)

**Yes, the KOI will run the main.py on startu**


---
