# Sugar Button Module

## Sugar Button Module

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/button1.png)

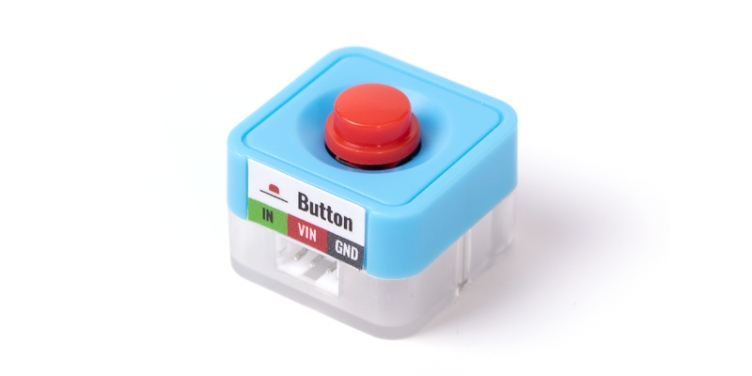

This is a button module in the Sugar series, the pin holes on the back allow compatibility with plastic building bricks.

### Product Specifications

* Dimensions: 24 x 24 x 19 mm
* Weight: 5.1g
* Type: Digital Signal

### Wiring

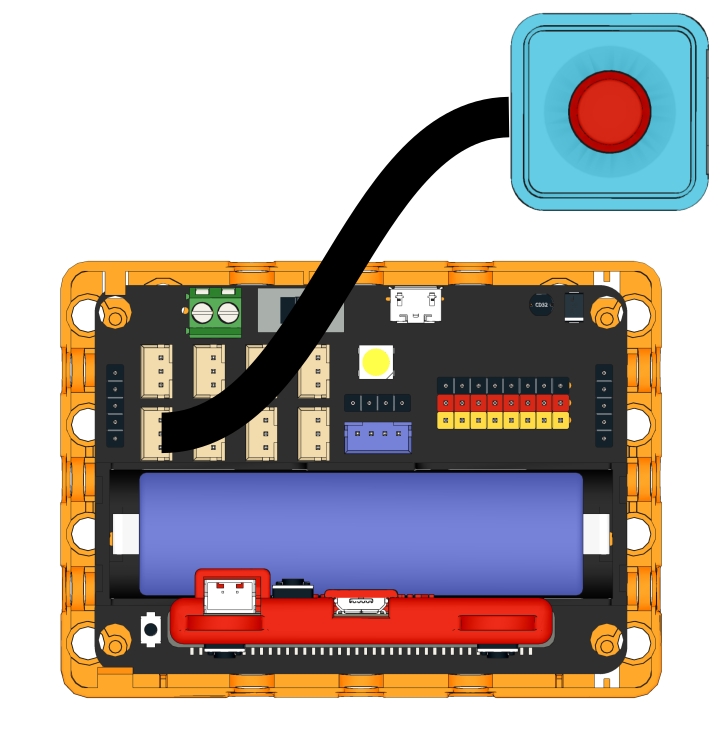

Connect the module to Robotbit Edu with a 3Pin cable.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/button_wire1.png)

### Programming Tutorial

### MakeCode Programming Tutorial

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/mcbanner.png)

#### Import Sugar Extension

#### Search for sugar in the search bar (Kittenbot products has been verified by Microsoft)

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/sugar_search.png)

#### Extension URL

Sugar extension: <https://github.com/KittenBot/pxt-sugar>

[Importing Extensions Tutorial](https://sharinghub-eng.kittenbot.hk/programming-platforms/makecode-tutorial/kittenbot-and-makecode)

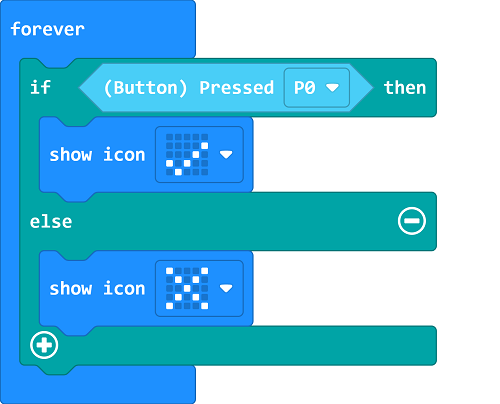

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/button_mc_code.png)

[Sample Program](https://makecode.microbit.org/_HmsVHVfWzADt)

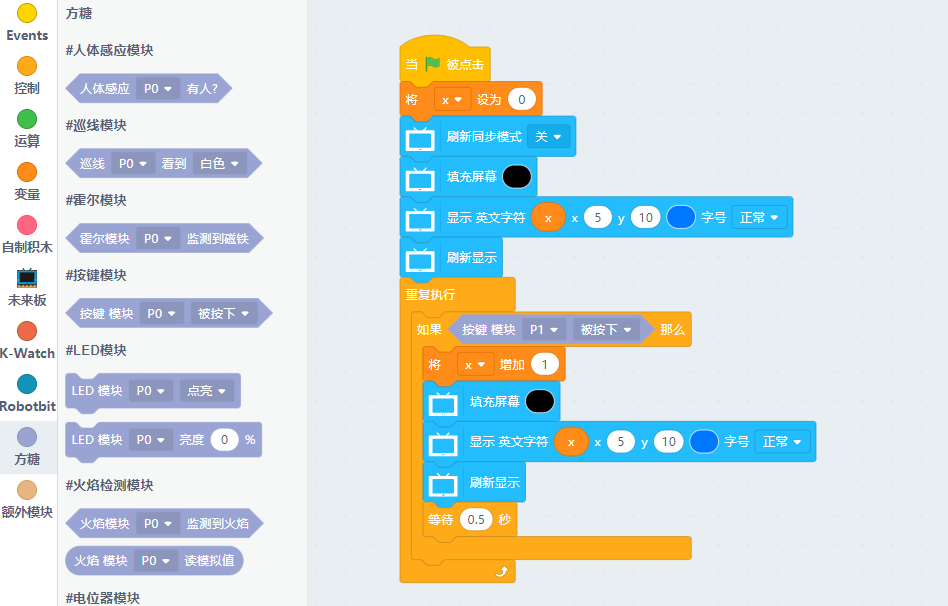

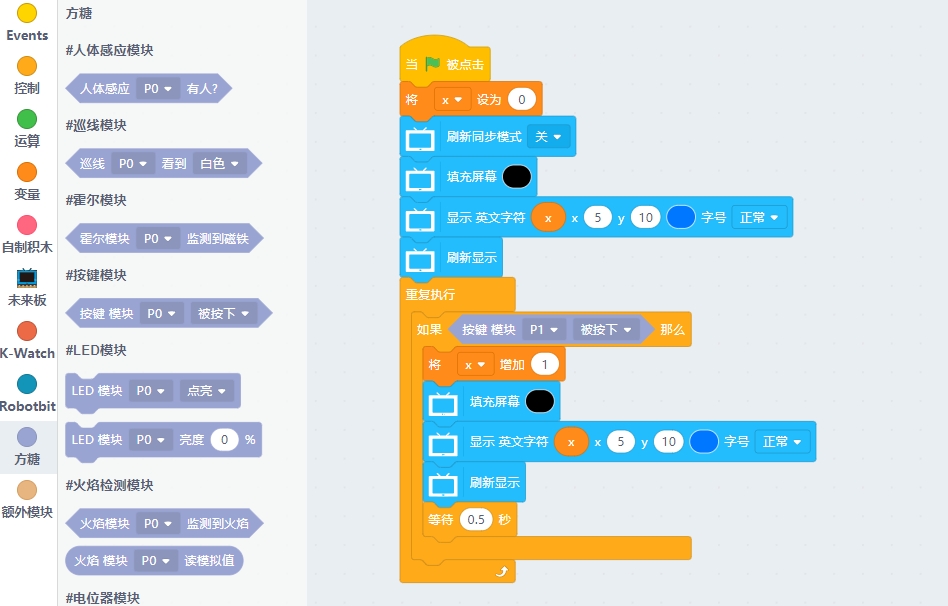

#### Kittenblock Programming Tutorial

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/kbbanner.png)

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/button3.png)

#### MicroPython Programming Tutorial

```
Button(pin)
value()
```

* value(): Returns button status

#### Sample Program

```
from future import *
from sugar import *
import time

#Available: P0, P1, P2, P3, P8, P13, P14, P15, P16
button = Button('P1')

x = 0
screen.sync = 0
screen.fill(0)
screen.text(x, x = 5, y = 5)
screen.refresh()
while True:
  if button.value() == 0:
    x += 1
    screen.fill(0)
    screen.text(x, x = 5, y = 5)
    screen.refresh()
    sleep(0.5)
```
