Punching Mantis

Use the fists to knock down the opponent.

Building Instructions and Sample Programs

Building Instructions

Punching Mantis-Joyfrog Controller

Punching Mantis-Microbit Controller

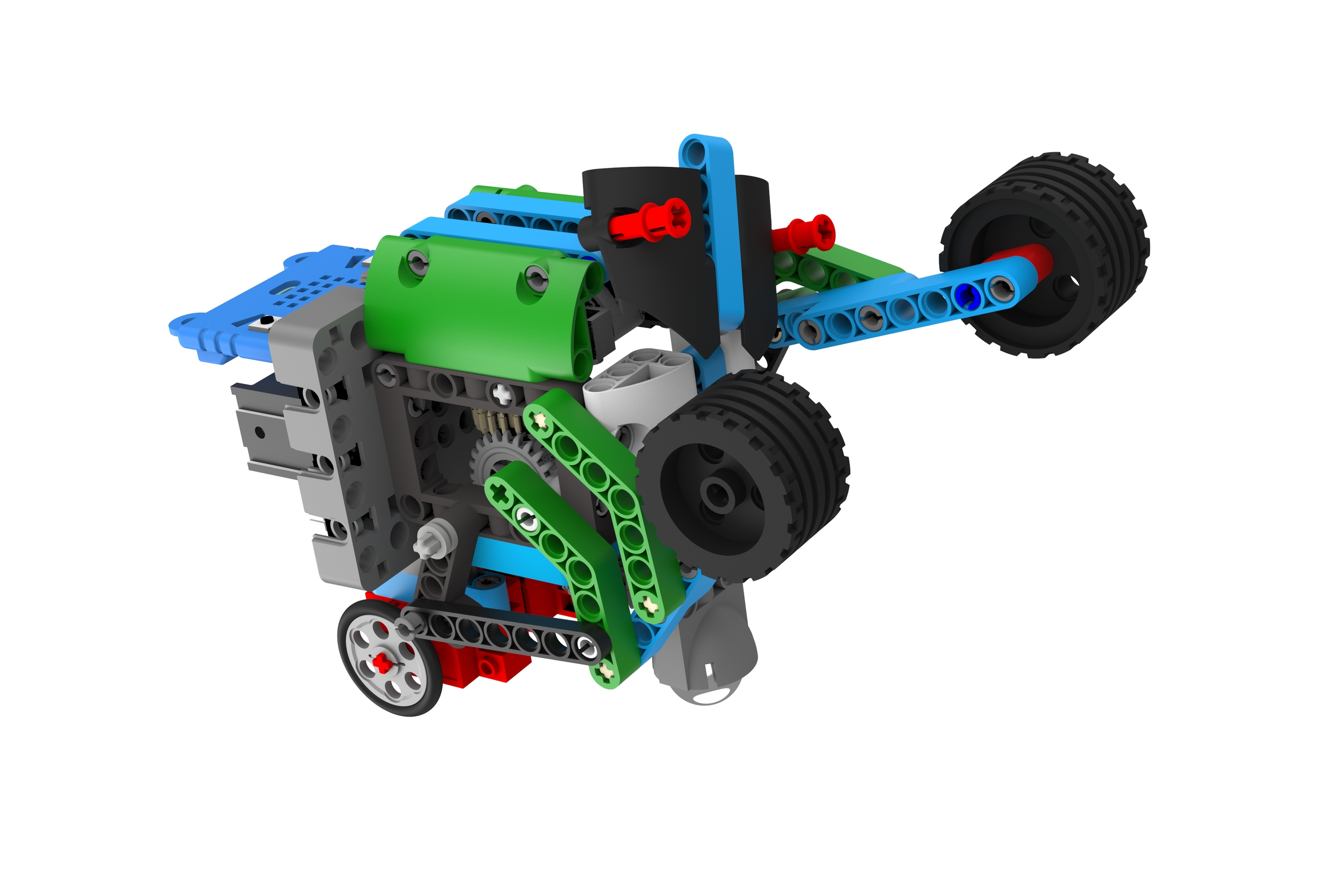

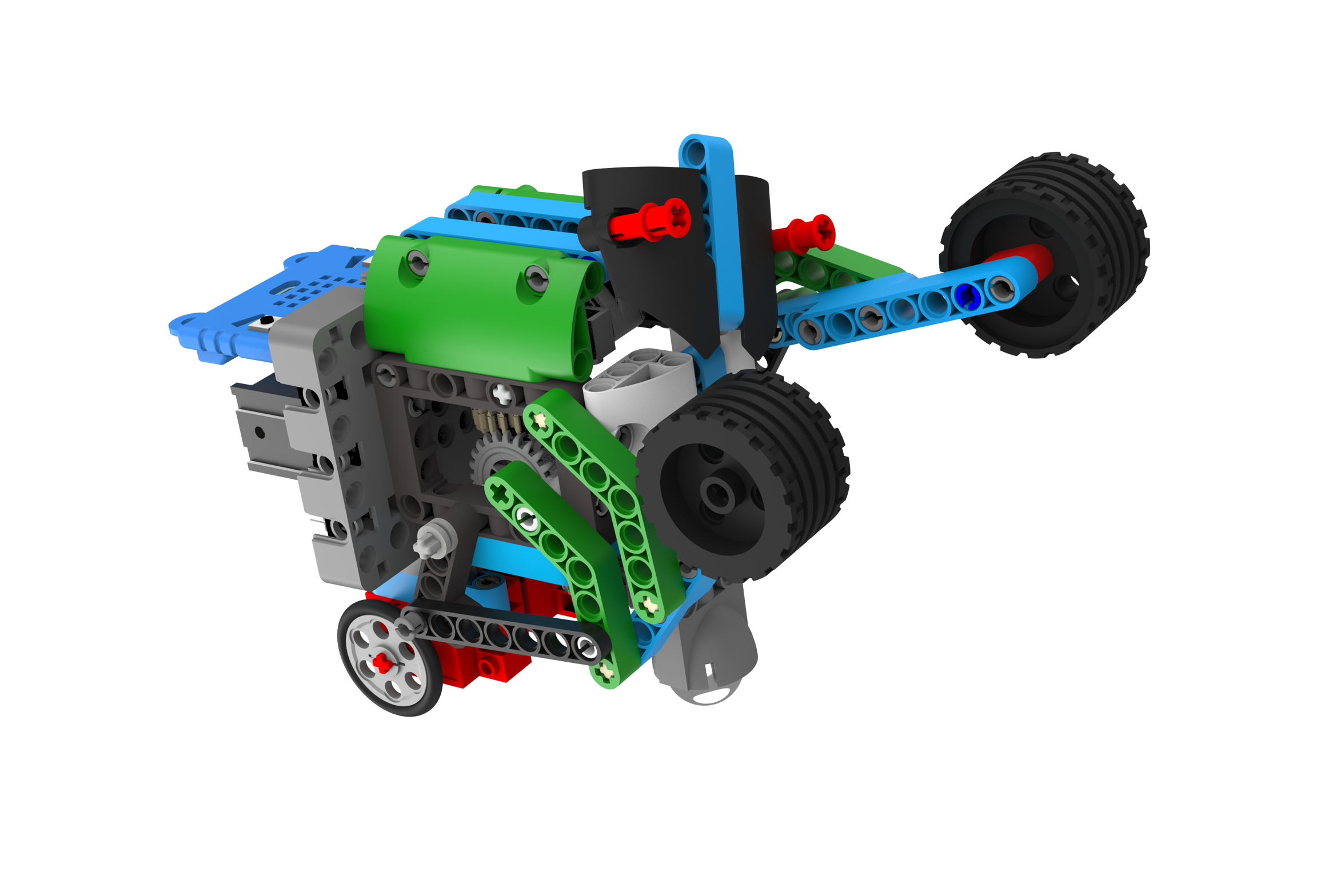

Punching Mantis-Robot

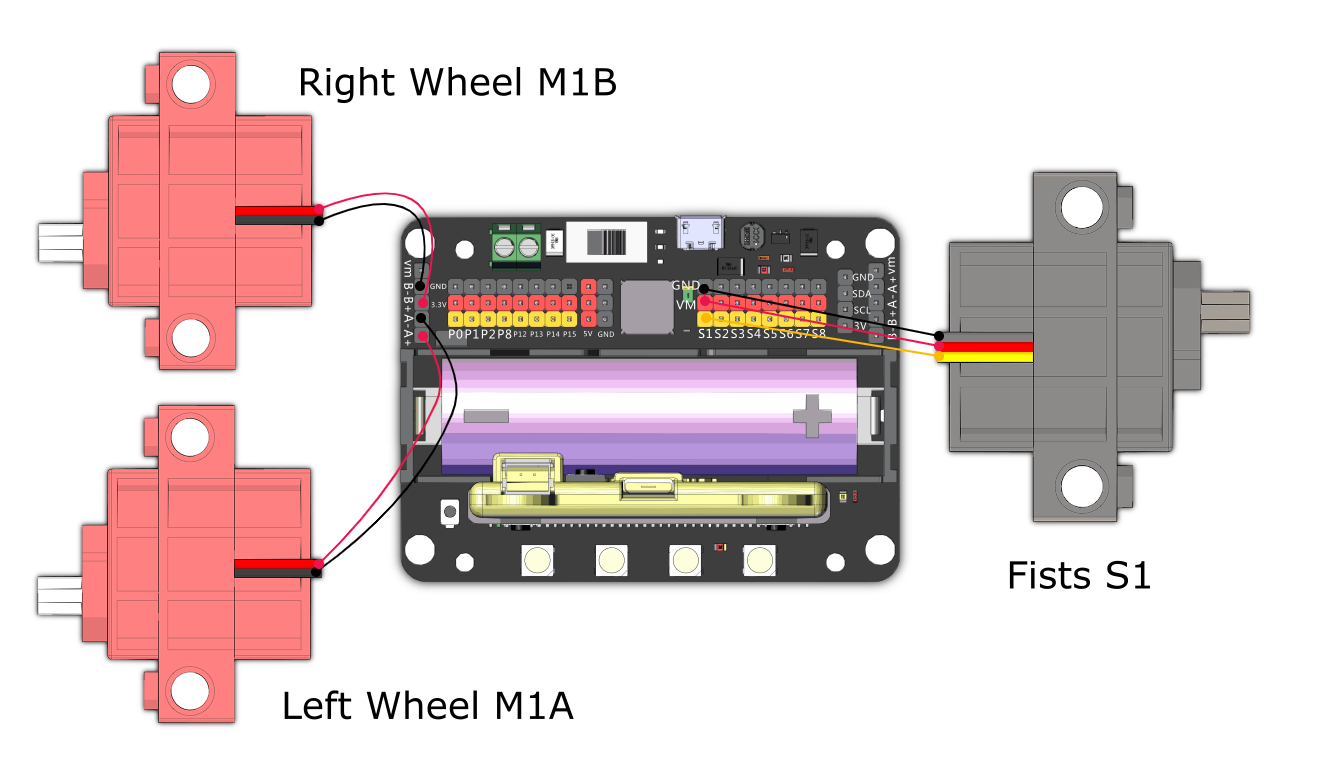

Sample Wiring

Operating the Robot

JoyFrog Controller:

1. The robot should show a red light and the controller should show a cross (X) when the power is switched on.

2. Press A to pair the robot, the robot should show a green light upon successful pairing.

3. Use the joystick for movement, press B to attack and B to defend.

Microbit:

1. The robot should show a red light and the controller should show a cross (X) when the power is switched on.

2. Press A to pair the robot, the robot should show a green light upon successful pairing.

3. Use the accelerometer for movement, press B to attack and B to defend.
