# Programming with KittenBlock: Screen

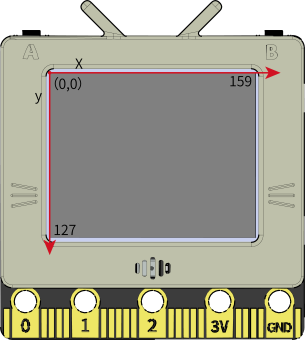

The TFT screen can be used to display various effects.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/screen_coordinates.png)

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/kbbanner.png)

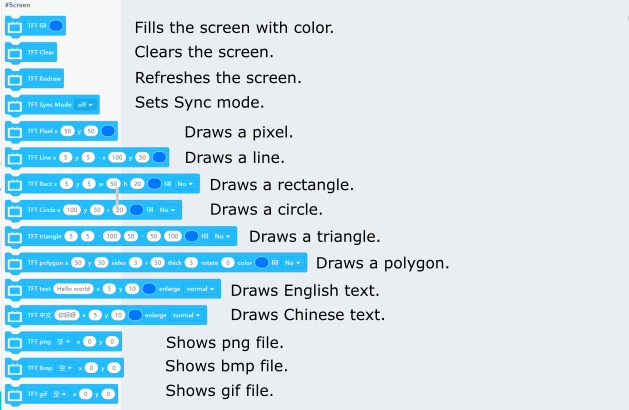

### Screen Blocks

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/screen_en.png)

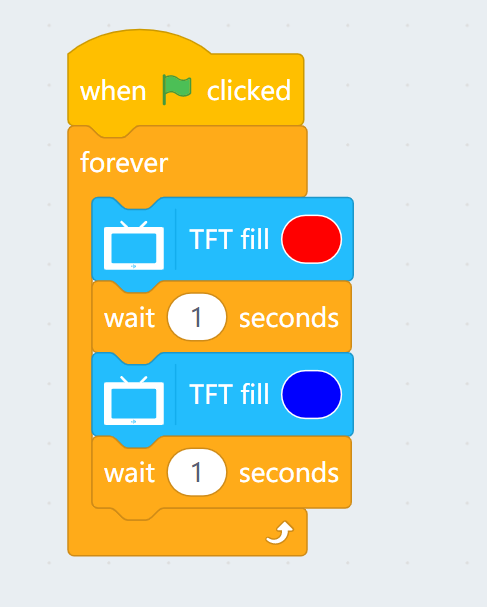

#### Sample Program: Filling Colors

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/screen_code1en.png)

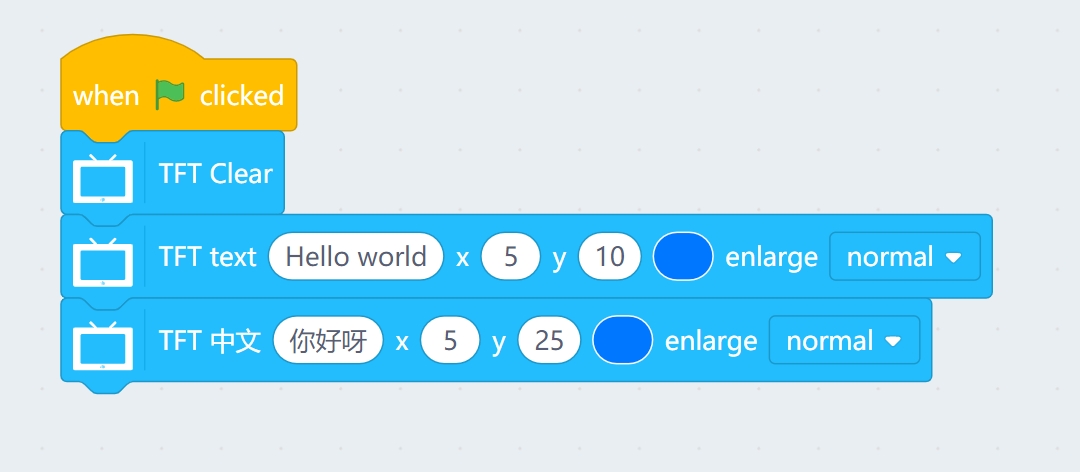

#### Sample Program: Showing Text

The screen can show English and Chinese texts.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/screen_code2en.png)

#### Sample Program: Pixels and Lines

To be added.

#### Sample Program: Rectangles and Circles

```

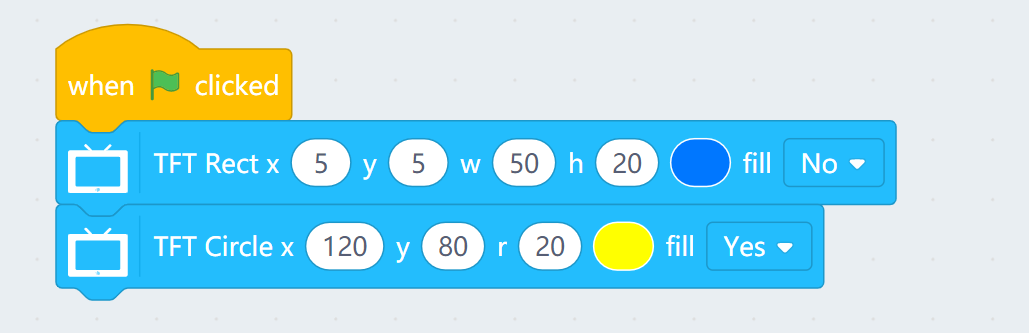

Note: The coordinates define the top left corner for rectangles, the origin for circles.
```

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/screen_code4en.png)

#### Sample Program: Triangles and Polygons

To be added.

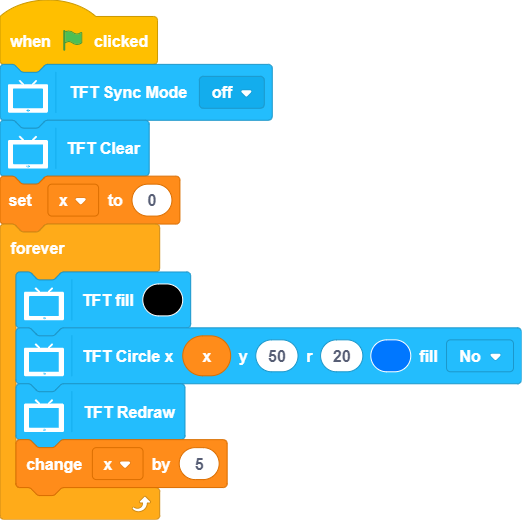

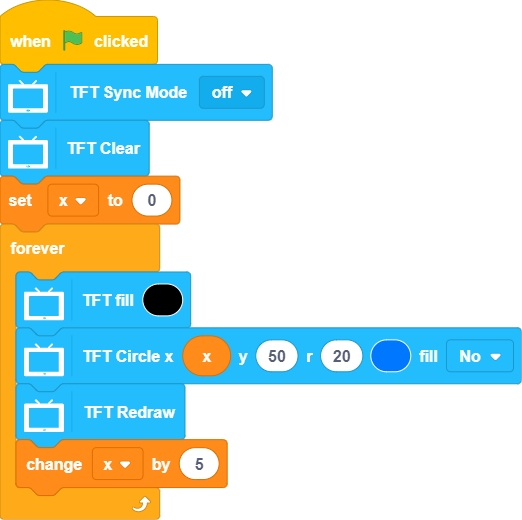

#### Sample Program: Sync Mode

Disabling Sync Mode helps with smooth animations by eliminating screen flashings。

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/screen_code6en.png)

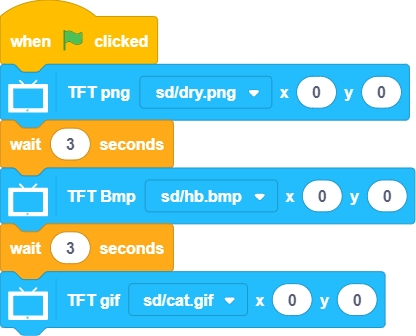

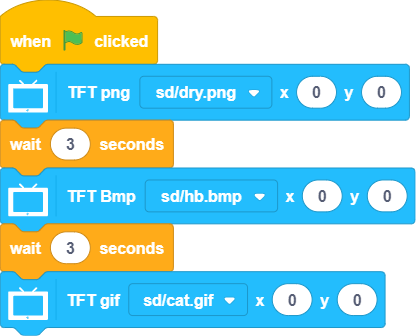

#### Sample Program: Showing Images

FutureBoard is capable of showing png, bmp or gif files.

Put the images on the SD card.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/screen_code7en.png)


---
