# RGB LED Screen Info

08x32RGB LED Screen (HKBM8008A) / 16x16RGB LED Screen (HKBM8009A)

### Product Description

This is a soft screen with RGB LEDs, it is easily portable and fexible. Graphical programming is possible with our official extension.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/zhanshi_2.png)

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/rshiyitu_2.png)

### Product Feautures

* Graphical Programming Interface
* Modularity, supports daisy chaining of multiple screens
* Can be powered externally
* Lightweight
* Flexibility

### Product Information

**8x32 RGB LED Screen(HKBM8008A)**

* Dimensions：320mm x 80mm x2mm
* Weight：55g
* Material：Soft copper
* 256 RGB LEDs

**16x16 RGB LED Screen(HKBM8009A)**

* Dimensions：160mm x 160mm x2mm
* Weight：55g
* Material：Soft copper
* 256 RGB LEDs

### Contents：

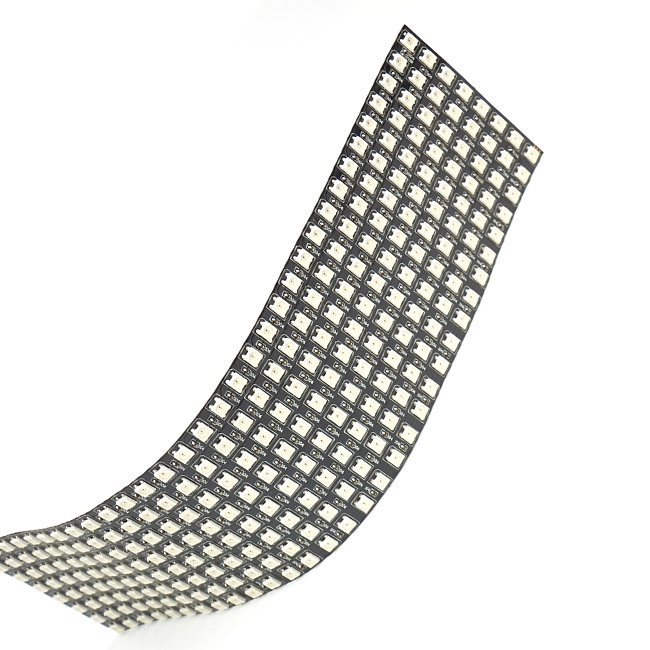

#### 1xRGB LED Screen(16x16 or 32x8)

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/zhanshi_1.png)

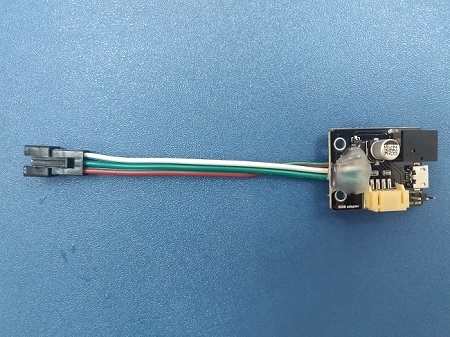

#### 1xAdapter

Each LED screen comes with an adapter. The adpater helps you connect the screen with the Robotbit by providing dupont cables and a 5V USB power input. For prolonged usage, the power connector can replace the 18650 Li-ion battery on the robotbit, sustaining a stable power supply without damaging the Robotbit.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/f.jpg)

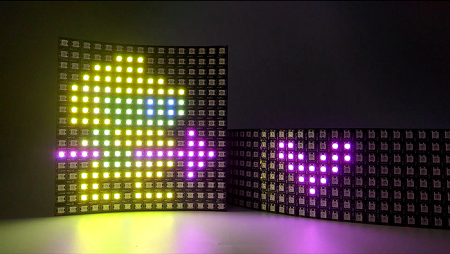

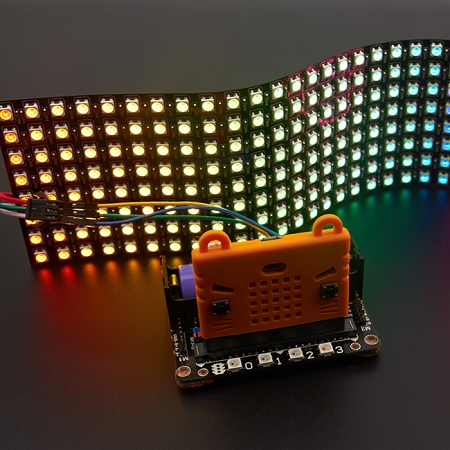

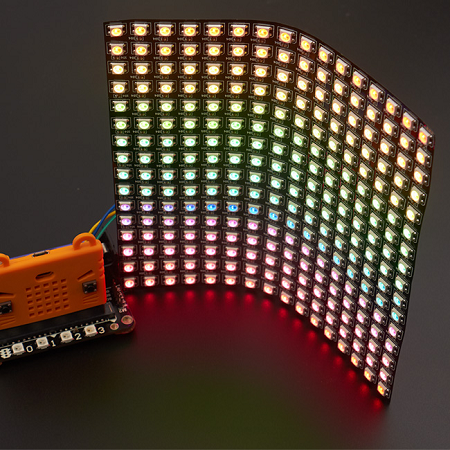

### Product Showcase

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/show2.png)

### Specifications

* Voltage：5V
* Current：1A, USB power is recommended for prolonged use
* Wattage: 0.3W
* Material：Soft copper
* Brightness gradient：256
* Lumen：120
