RoboPusher

Make use of its agility to retrieve important resources from the arena.

Building Instructions and Sample Programs

Building Instructions

Sample Programs:

RoboPusher-JoyFrog Controller

RoboPusher-Microbit Controller

RoboPusher-Robot

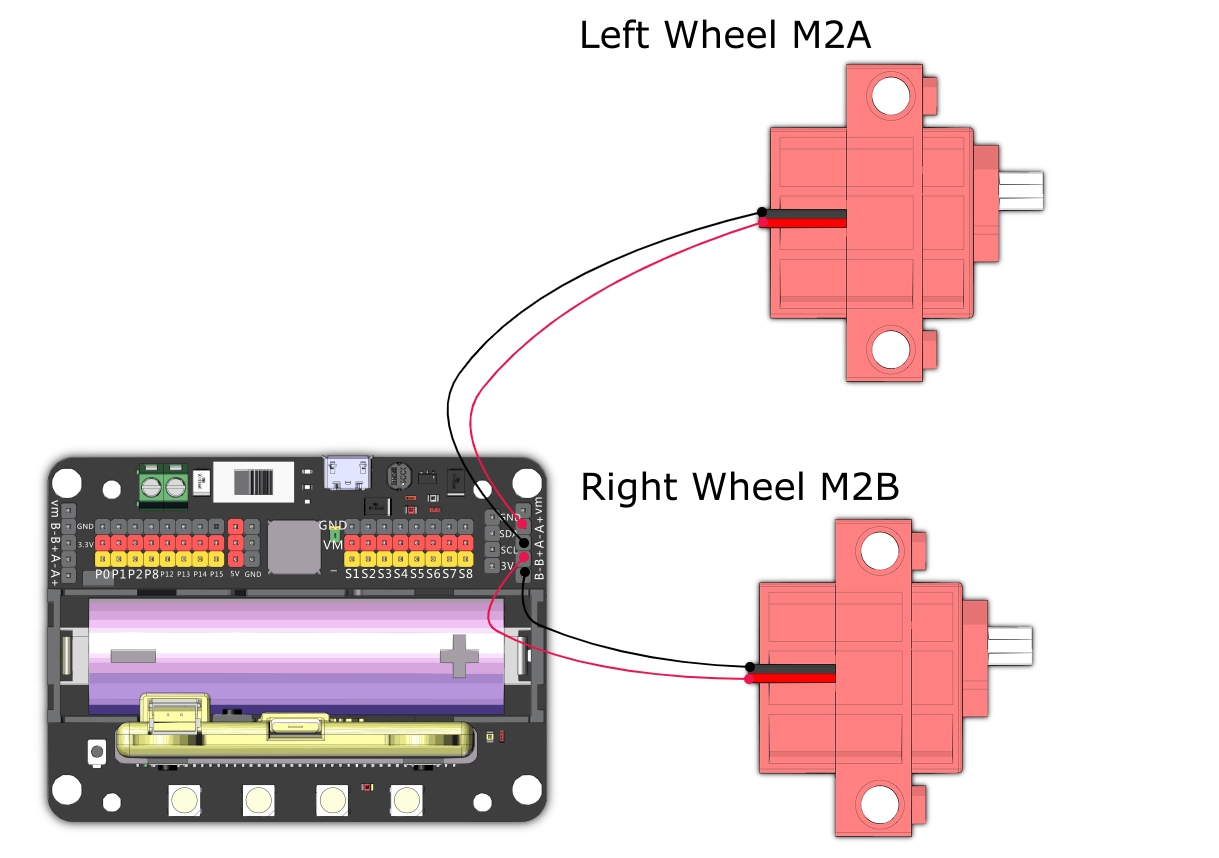

Sample Wiring

Operating the Robot

JoyFrog Controller:

  1. The robot should show a red light and the controller should show a cross (X) when the power is switched on.

  2. Press X to pair the robot, the robot should show a green light upon successful pairing.

  3. Use the joystick for movement.

Microbit Controller:

  1. The robot should show a red light and the controller should show a cross (X) when the power is switched on.

  2. Press A+B to pair the robot, the robot should show a green light upon successful pairing.

  3. Use the accelerometer for movement.
