Industry 4.0 Robotic Arm

This Robotic Arm is built of plastic building blocks, it features 5 Geekservo 2KG servos.

Kit Contents

1. Robotbit Edu x1

2. 18650 Lithium Battery x1

3. Geekservo 2KG Servos x5

4. Sugar Button Modules x4

5. Sugar Joystick Module x1

6. Building Blocks Set

7. Connecting Cables

Features

• Powered by 2KG servos to ensure stability in operation

• Mechanical structure allows students to learn mechanical engineering concepts

• Improving engineering skills by hands-on construction of the robot arm

• Brick-built structure allows flexibility in modifying to suit different scenarios

Building Instructions

Download Building Instructions(Right Click->Save As)

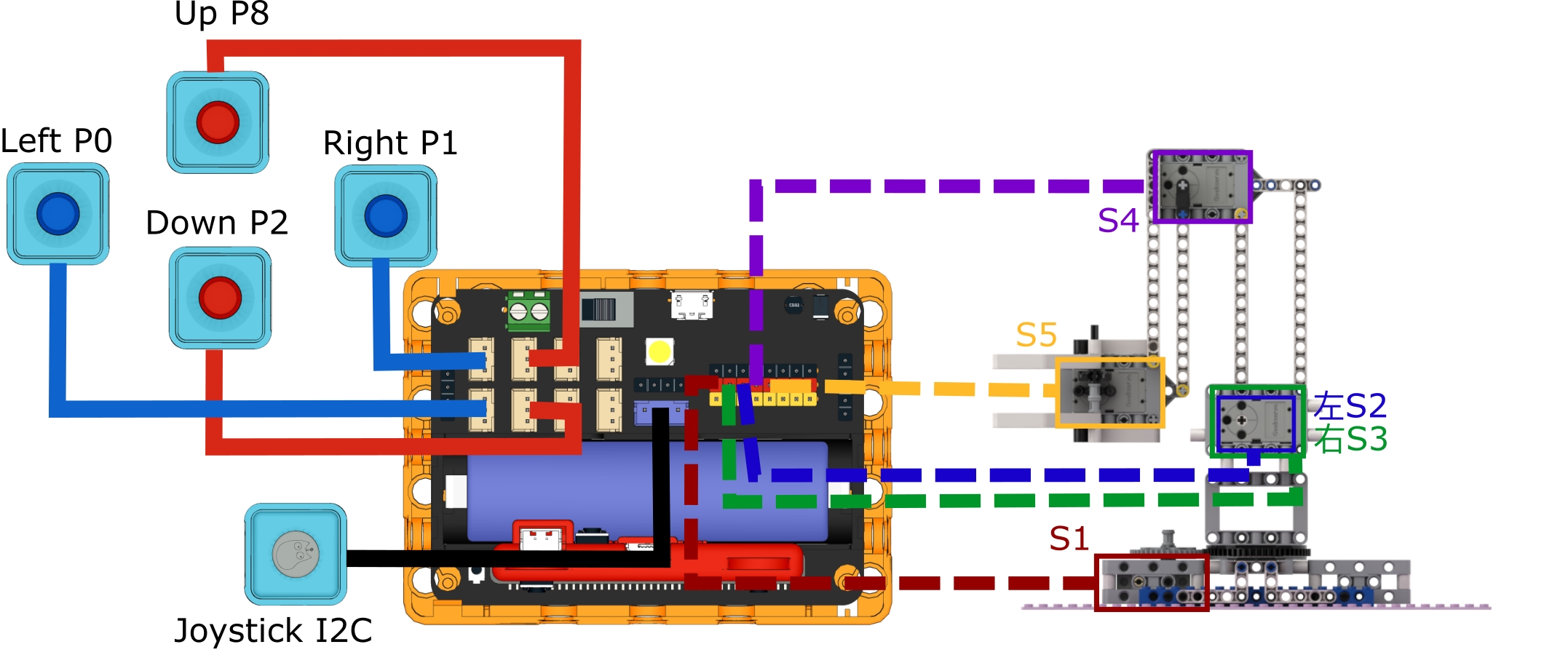

Sample Wiring Diagram

Robotbit EDU

Sample Program

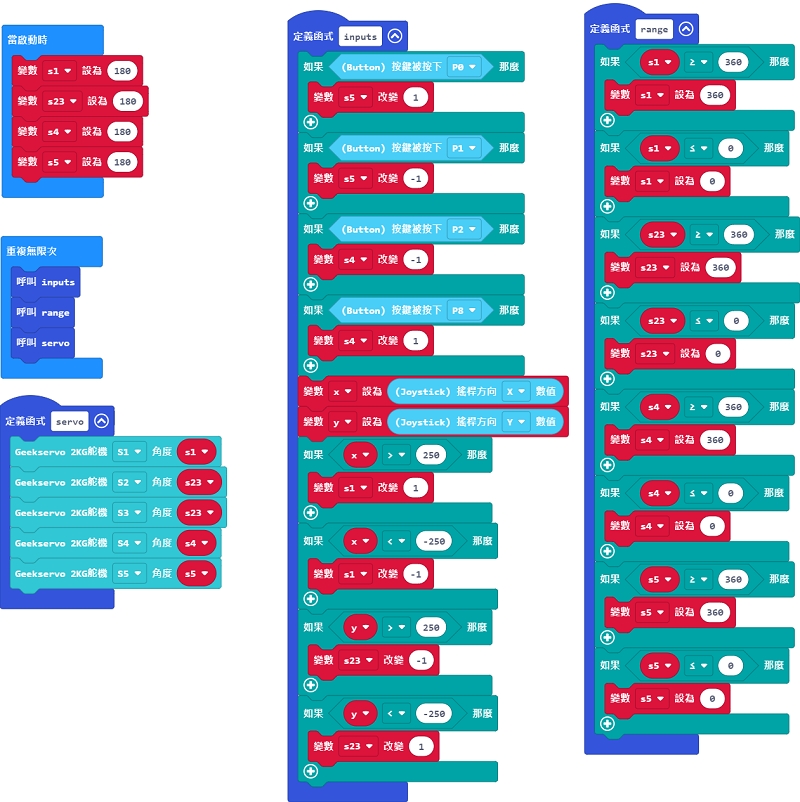

Micro:bit Sample Program

Sample Program

FutureBoard Sample Program

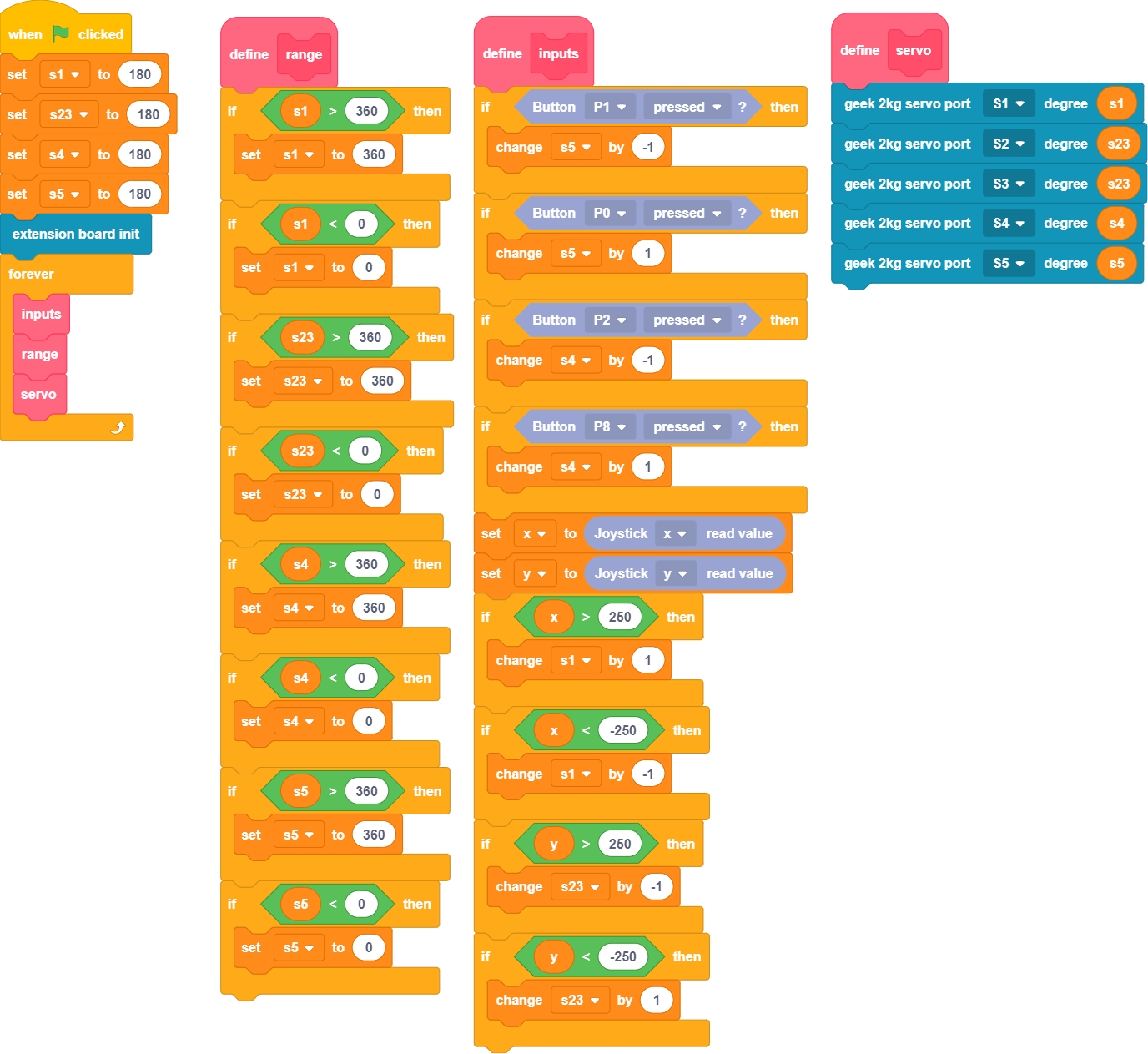

KittenBlock Sample Program

Sample Program(Right Click->Save As)

Python Sample Program

#/bin/python

from future import *
from sugar import *
import robotbit

x = 0
s1 = 0
s23 = 0
s4 = 0
s5 = 0
y = 0

def inputs():
  global x,s1,s23,s4,s5,y

  if Button("P1").value() == 0:
    s5 += -1
  if Button("P0").value() == 0:
    s5 += 1
  if Button("P2").value() == 0:
    s4 += -1
  if Button("P8").value() == 0:
    s4 += 1
  x = Joystick().value('x')
  y = Joystick().value('y')
  if x > 250:
    s1 += 1
  if x < -250:
    s1 += -1
  if y > 250:
    s23 += -1
  if y < -250:
    s23 += 1

def range():
  global x,s1,s23,s4,s5,y

  if s1 > 360:
    s1 = 360
  if s1 < 0:
    s1 = 0
  if s23 > 360:
    s23 = 360
  if s23 < 0:
    s23 = 0
  if s4 > 360:
    s4 = 360
  if s4 < 0:
    s4 = 0
  if s5 > 360:
    s5 = 360
  if s5 < 0:
    s5 = 0

def servo():
  global x,s1,s23,s4,s5,y
  robot.geekServo2kg(1, s1)
  robot.geekServo2kg(2, s23)
  robot.geekServo2kg(3, s23)
  robot.geekServo2kg(4, s4)
  robot.geekServo2kg(5, s5)


s1 = 180
s23 = 180
s4 = 180
s5 = 180

robot = robotbit.RobotBit()
while True:
  inputs()
  range()
  servo()
