# JoyFrog Coding with Kittenblock

### Kittenblock Coding Tutorial

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/kbbanner.png)

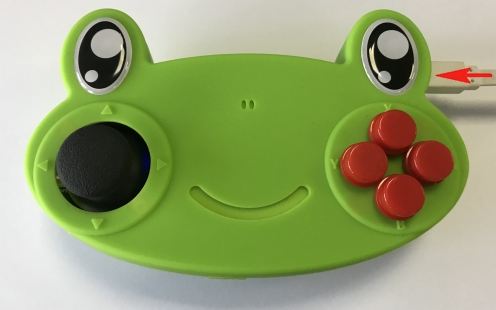

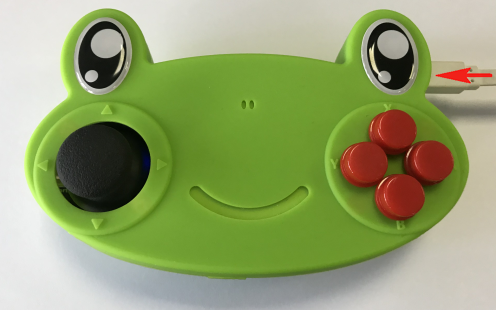

Connect JoyFrog to a computer with a USB cable.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/joyfrogcon.png)

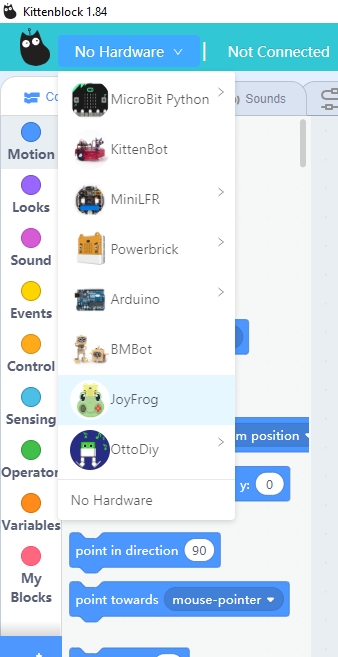

Select JoyFrog from the Hardware selection menu.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/jfadd.png)

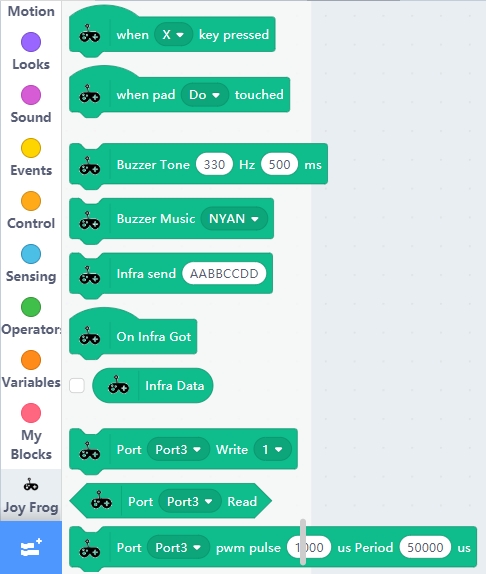

The programming blocks for JoyFrog will be added.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/jfsuccess.png)

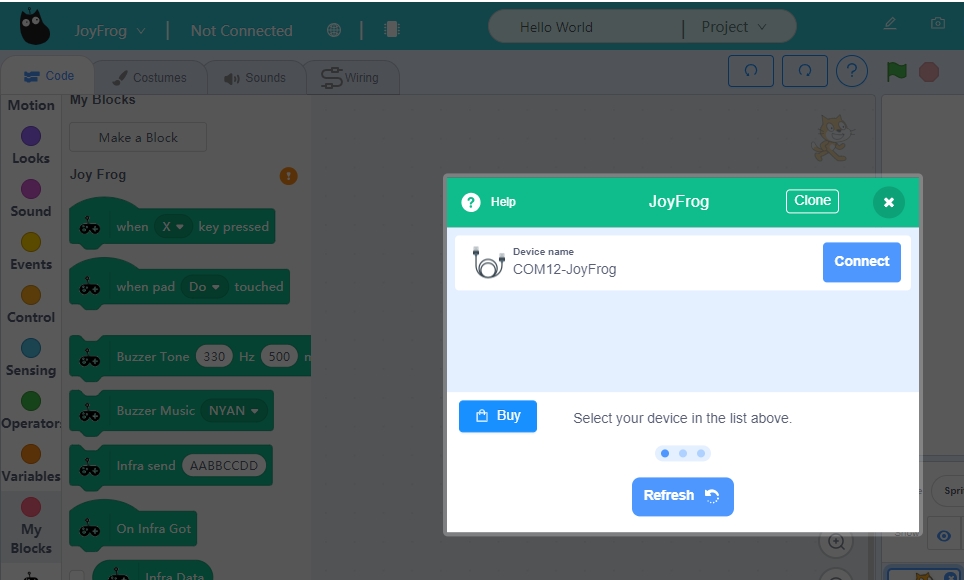

Click the Exclamation Mark Icon and select your device.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/jf11.png)

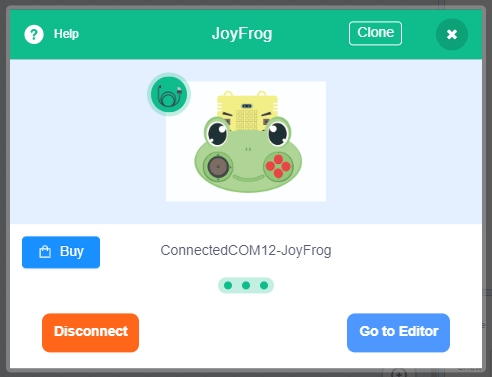

A melody will sound when JoyFrog is connected to Kittenblock.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/jf12.png)

#### Using the buttons and the joystick.

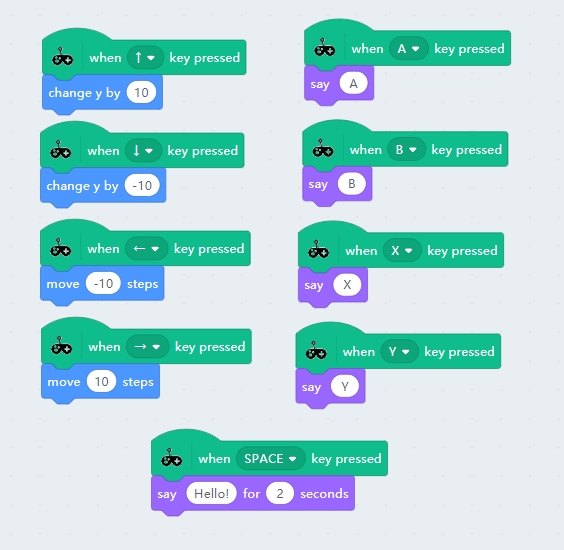

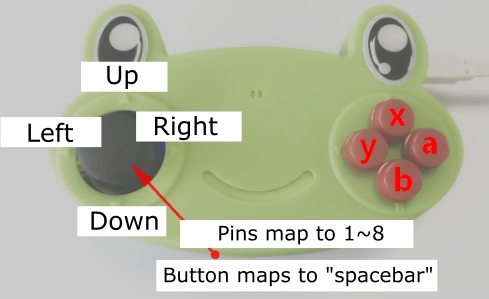

The buttons and the joystick input is mapped to individual keyboard keys.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/jf_2p3.png)

The edge connectors are mapped to the number keys.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/jf13.png)

#### Making a Piano:

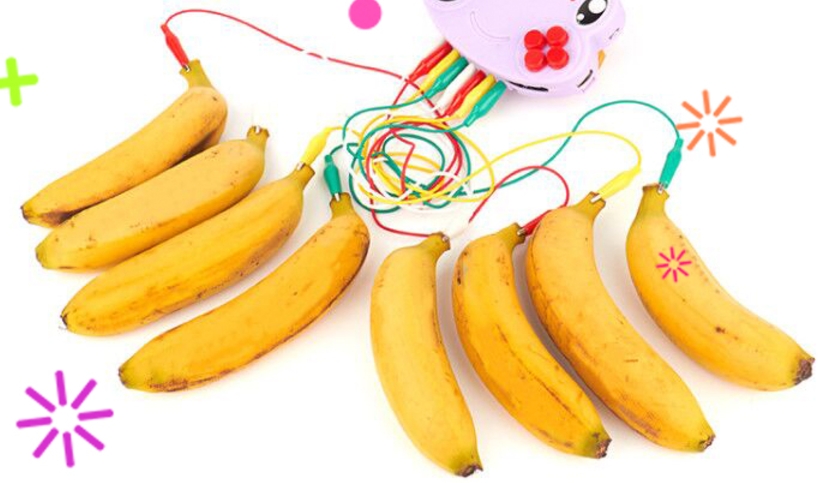

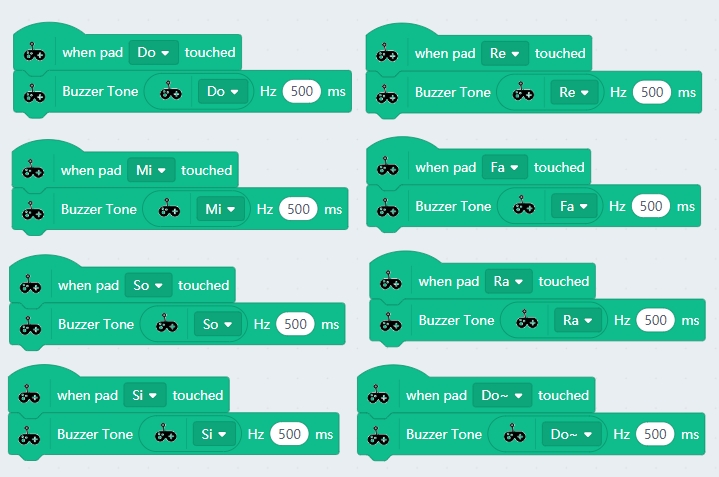

We can make a basic piano using the edge connectors.

Try connecting different conductive objects to create your own unique keyboard!

```
The notes correspond to numbers 1~8.
```

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/jf14.png)

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/piano1.png)

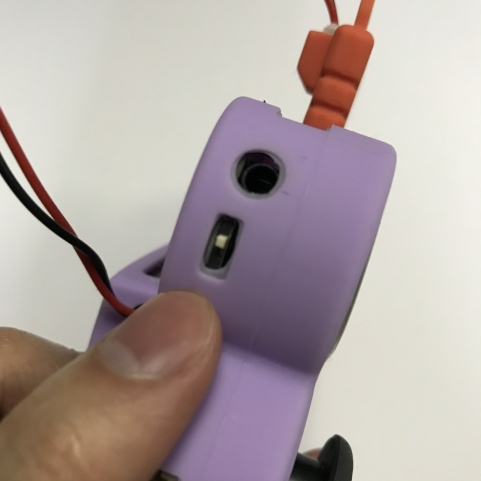

You can connect earphones or speakers to the 3.5mm audio jack.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/joyfrog_3.5.png)

#### InfraRed Trasmission and Receive:

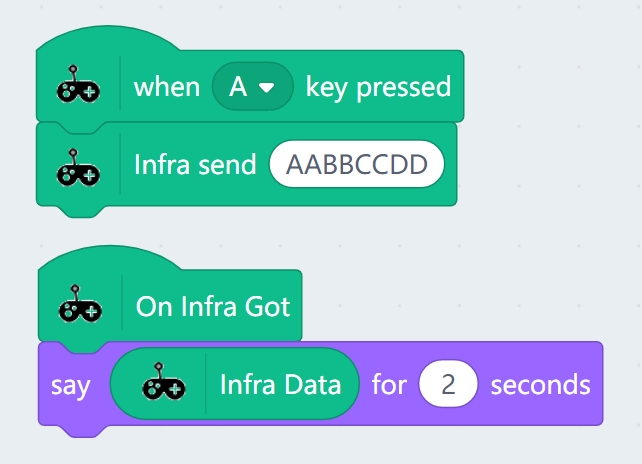

Transmitting and receiving an infrared signal.

```
The infrared signals are in a hexadecimal format.
```

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/jf15.png)

#### Digital read and write:

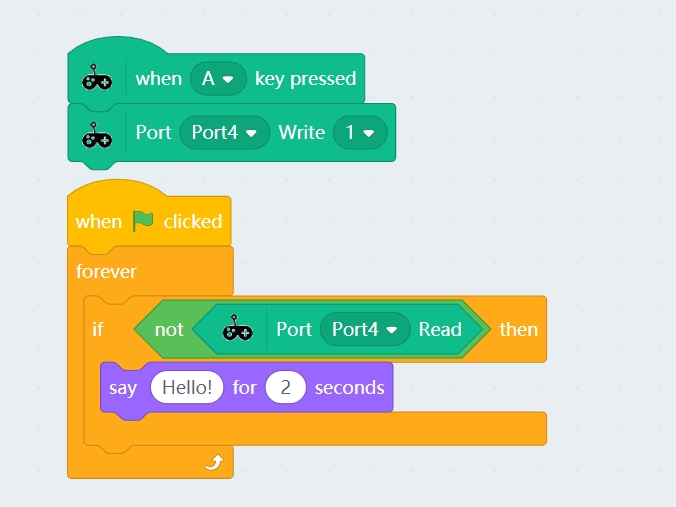

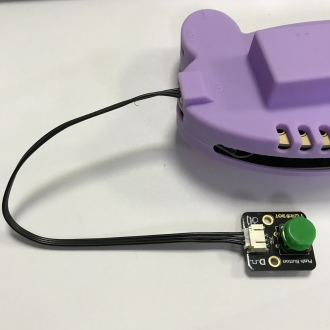

Reading and writing digital values.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/joyfrogButton.png)

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/jf16.png)

#### Analog read and write:

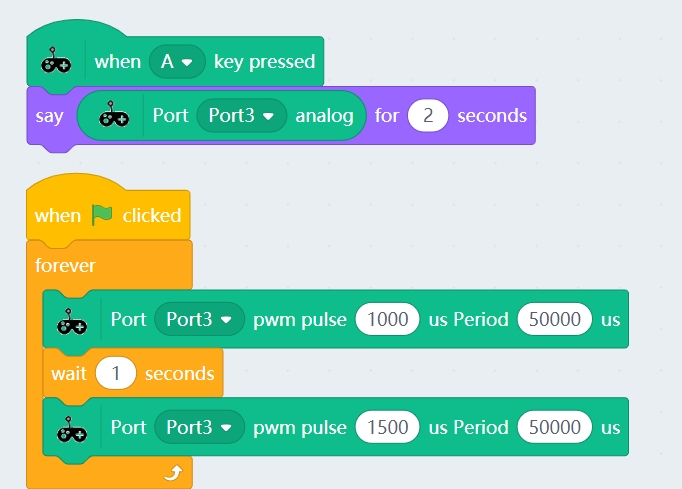

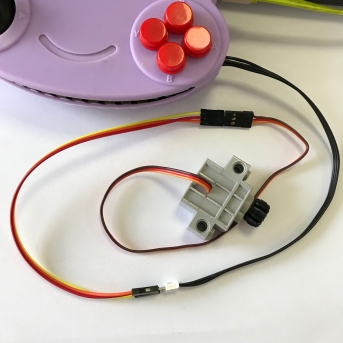

Reading and writing analog(PWM) values.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/joyfrogServo.png)

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/jf17.png)


---
