# Sugar Joystick Module

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/joy1.png)

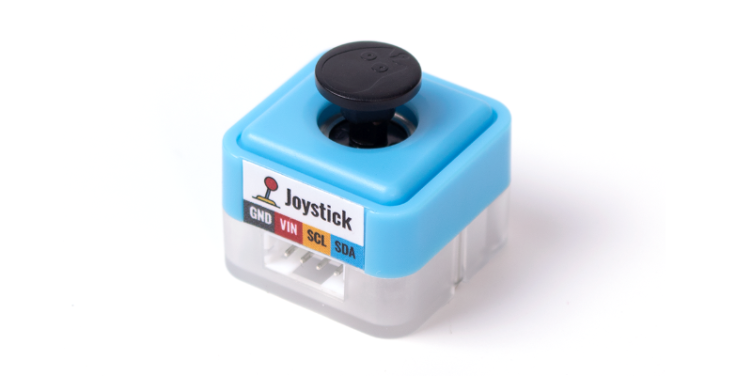

This is a joystick module in the Sugar sensor series, it can detect joystick positions and trigger status. The pin holes on the back allow compatibility with plastic building blocks.

### Product Specifications

* Dimensions: 24 x 24 x 23 mm
* Weight: 7g
* Type: I2C
  * X: -255\~255
  * Y: -255\~255
  * Button: 0\~1

### Wiring

Use a 4Pin cable to connect the module to the 4Pin I2C Port on the Robotbit Edu.

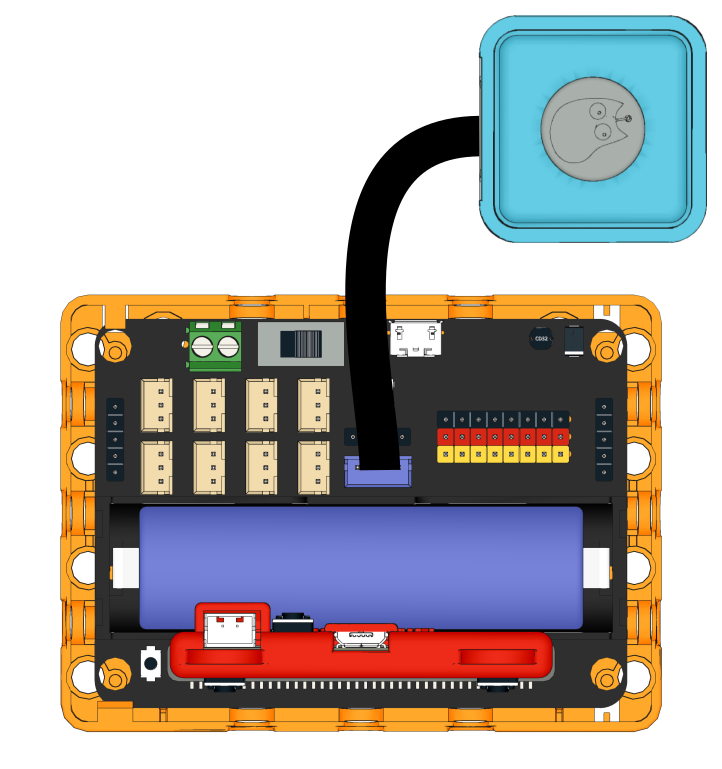

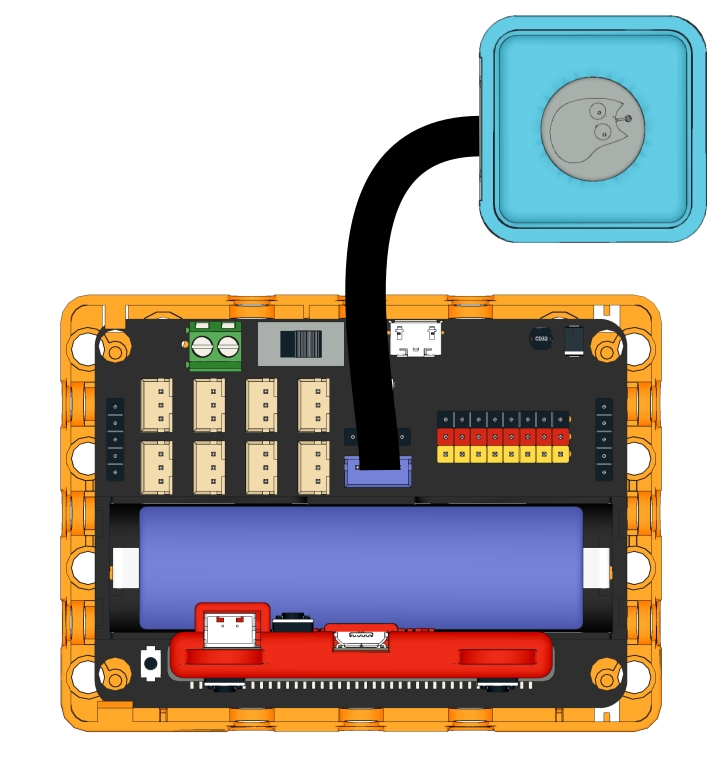

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/joy_wire.png)

### Programming Tutorial

### MakeCode Programming Tutorial

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/mcbanner.png)

#### Import Sugar Extension

#### Search for sugar in the search bar (Kittenbot products has been verified by Microsoft)

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/sugar_search.png)

#### Extension URL

Sugar extension: <https://github.com/KittenBot/pxt-sugar>

[Importing Extensions Tutorial](/programming-platforms/makecode-tutorial/kittenbot-and-makecode.md)

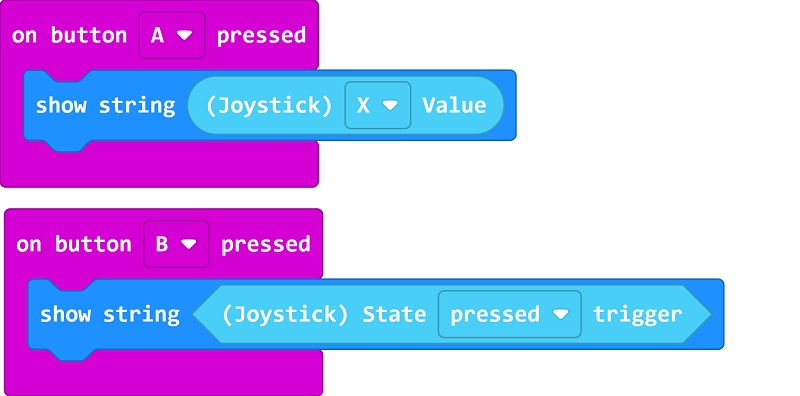

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/joy_mc_code.png)

[Sample Program](https://makecode.microbit.org/_hzo7aFVv58jL)

#### Kittenblock Programming Tutorial

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/kbbanner.png)

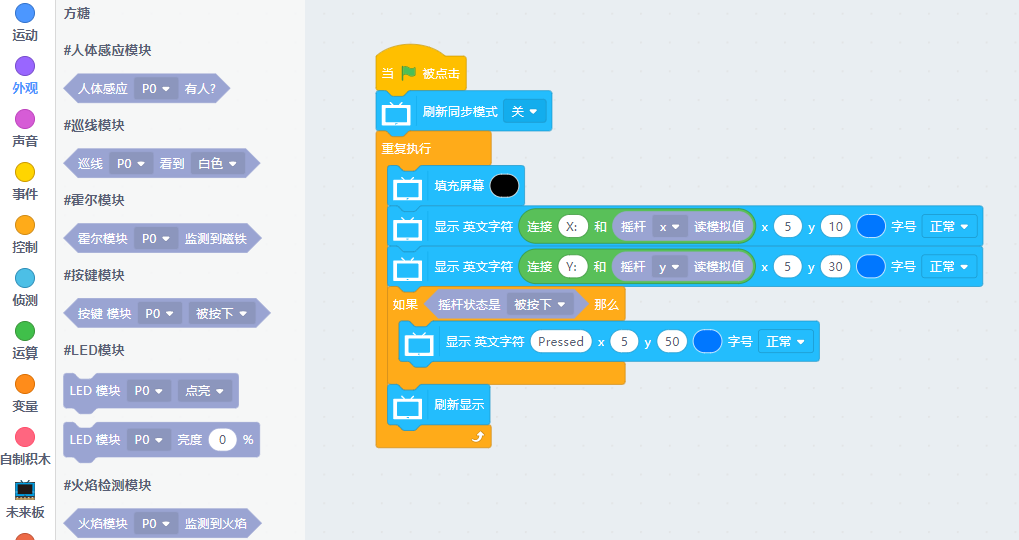

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/joy3.png)

#### MicroPython Programming Tutorial

```
JoyStick()
value(dir)
state()
```

* dir: X/Y
* state(): Returns none when trigger is not pressed, returns pressed/left/right/up/down when pressed.

Sample Program

```
from future import *
from sugar import *

joystick = JoyStick()
screen.sync = 0

while True:
    screen.fill((0, 0, 0))
    screen.text(str("X: ")+str(joystick.value('x')), x = 5, y = 10)
    screen.text(str("Y: ")+str(joystick.value('y')), x = 5, y = 30)
    if joystick.state() == 'pressed':
        screen.text("Pressed", x = 5, y = 50)
    screen.refresh()
```


---
