# Robotbit Edu Coding with KittenBlock

Robotbit Edu can be programmed with KittenBlock.

Refer to this page for introduction with Kittenblock: [Kittenblock Introduction](https://kittenbothk-eng.readthedocs.io/en/latest/Microbit_eboard/KittenBlock/index)

### Kittenblock Coding

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/kbbanner.png)

Connect the Micro:bit to your computer with a USB cable.

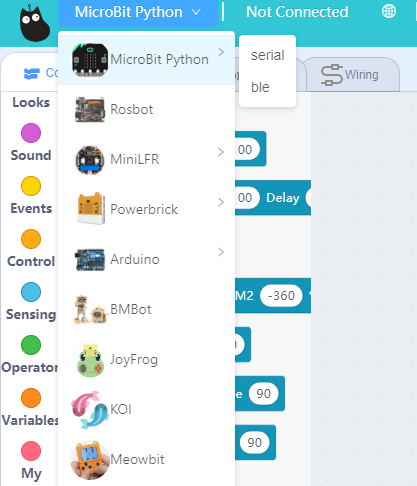

Click select hardware and choose MicroBit Python from the menu.

![.](https://kittenbothk-eng.readthedocs.io/en/latest/_images/add1.png)

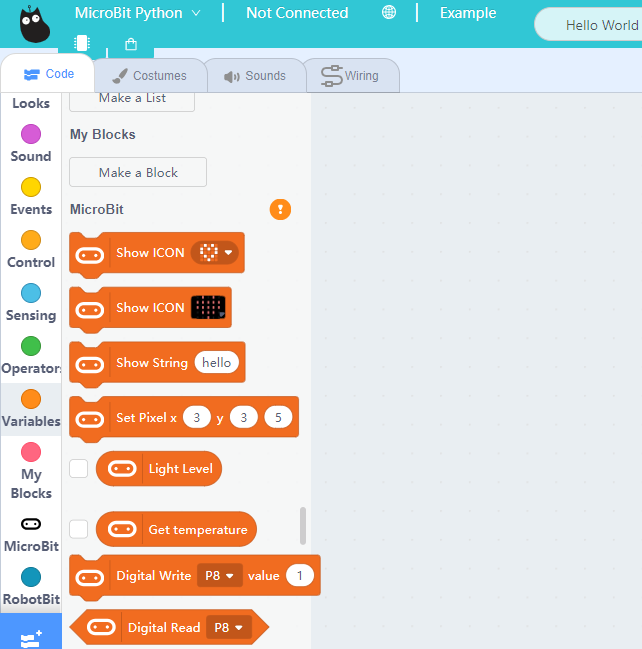

Press this exclamation mark(!).

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/kbmbcon3.png)

Click this button to connect the Micro:bit.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/kbmbcon11.png)

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/kbmbcon21.png)

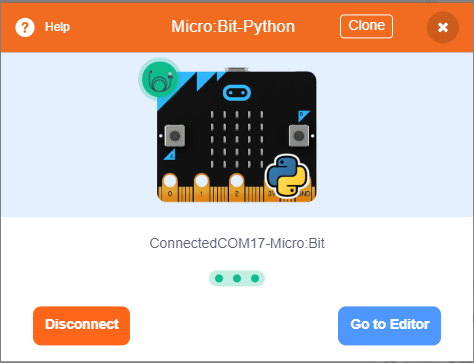

Micro:bit will display a heart icon after connecting to Kittenblock.

If the Micro:bit does not show a heart icon,

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/upload1.png)

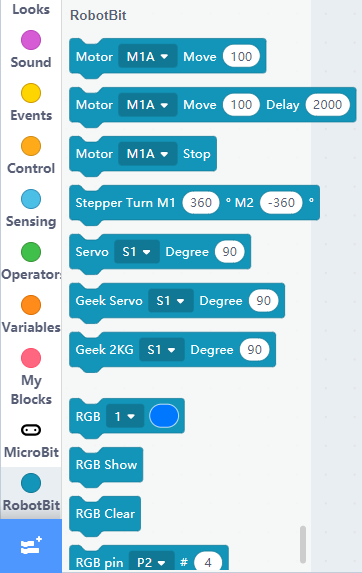

#### The blocks for Robotbit will be added[](https://kittenbothk-eng.readthedocs.io/en/latest/Microbit_eboard/Robotbit_edu/robotbitKB.html#the-blocks-for-robotbit-will-be-added)

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/success1.png)

#### 1. Programming Motors

For information about DC motors by Kittenbot, please visit: [Kittenbot Actuators](https://kittenbothk-eng.readthedocs.io/en/latest/motors/index.html)

**Sample Program:**

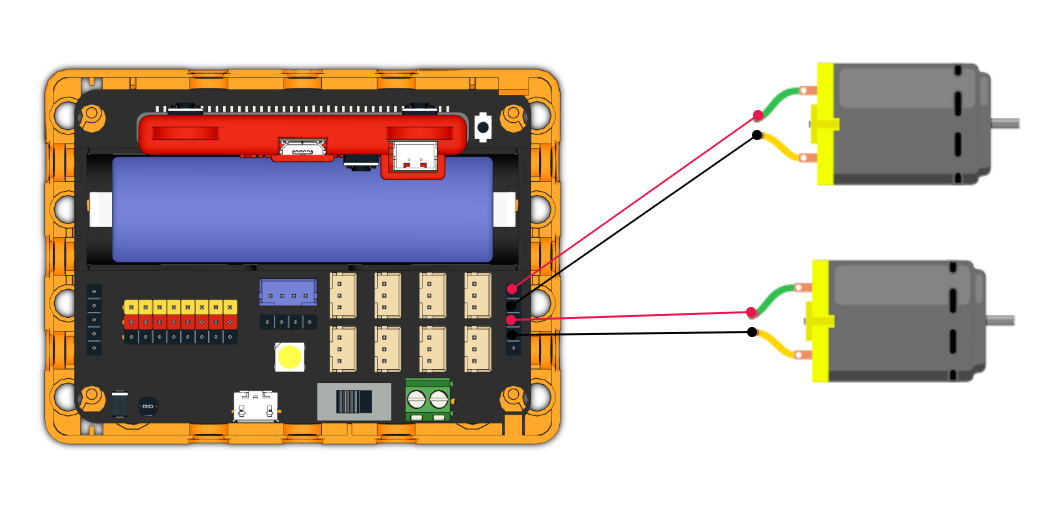

Connect 2 DC motors to the M1A and M1B port of the Robotbit.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/motor_wire1.png)

```

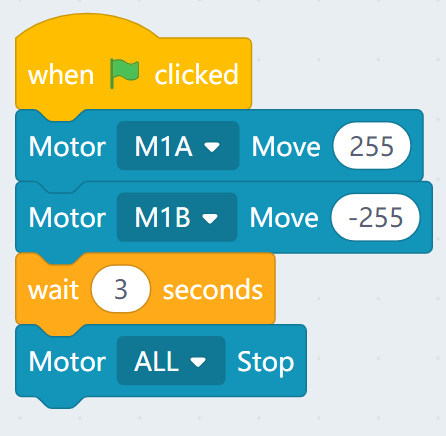

The speed of motor ranges from -255 to 255.
```

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/kb_code1.png)

#### 2. Programming Servos

For information about servos by Kittenbot, please visit: [Kittenbot Actuators](https://kittenbothk-eng.readthedocs.io/en/latest/motors/index.html)

**Sample Program:**

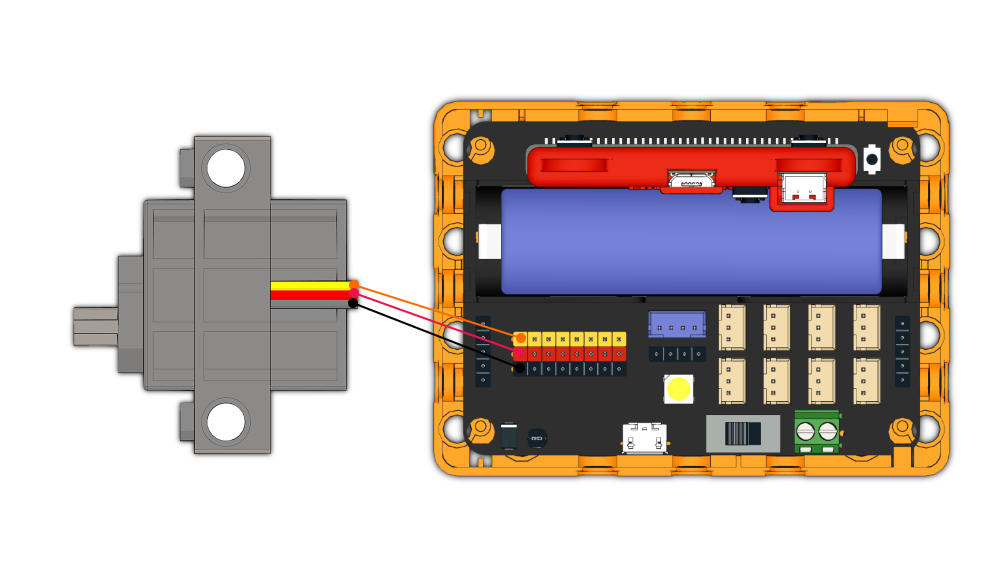

Connect a servo to the S1 port of Robotbit.

```
Connect the orange wire from the servo to the yellow wire of the Robotbit.
```

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/servo_wire1.png)

```

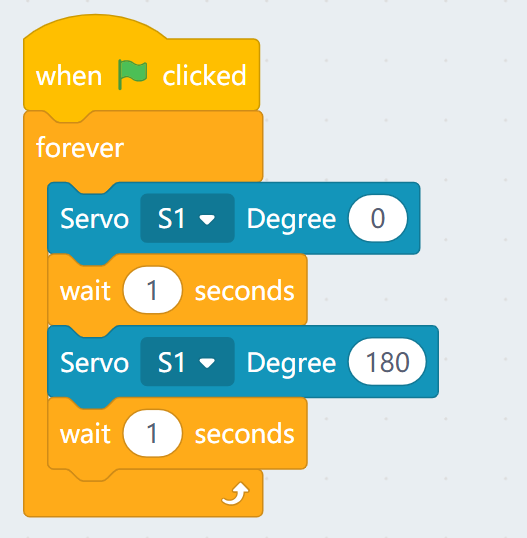

Typical servos have a rotation range of 0-180.
```

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/kb_code2.png)

#### 3. Programming Stepper Motors

For information about DC motors by Kittenbot, please visit: [Kittenbot Actuators](https://kittenbothk-eng.readthedocs.io/en/latest/motors/index.html)

**Sample Program:**

Connect Stepper Motors to the M1 and M2 port of the Robotbit, with the red wire connecting to the VM port.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/stepper_wire.png)

```

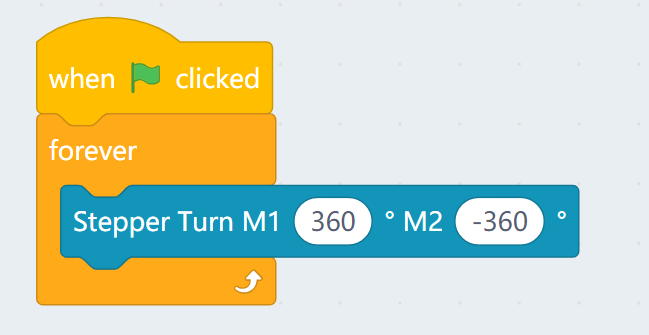

Stepper Motors have a rotation range of -360 to 360.
```

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/kb_code3.png)

#### 4. Programming the built-in LED strip

```
Remember to add a "Show" block to display the effect.
```

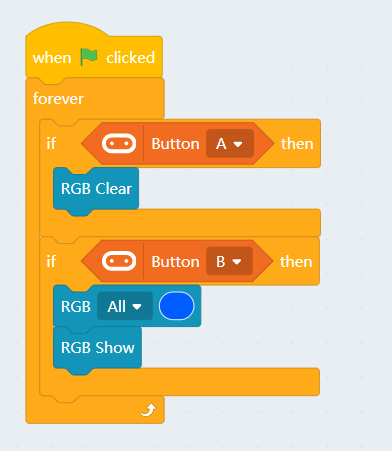

**4.1 Lighting up all lights**

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/kb_code5.png)

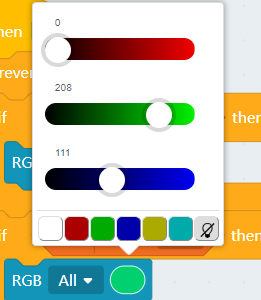

**4.2 Customizing color with RGB**

```
RGB value has a range of 0-255.
```

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/kb_code6.png)

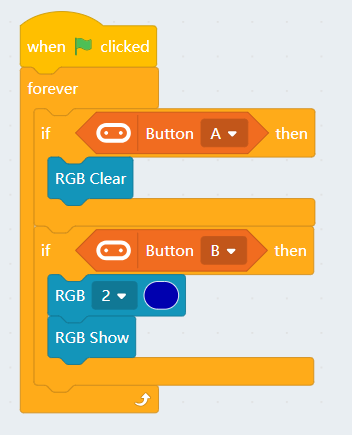

**4.3 Lighting up individual lights**

```
The lights are labelled 0-3. (As labelled on the Robotbit)
```

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/robotbit_neopixel2.png)

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/kb_code7.png)

#### 5. Programming the IO Pins

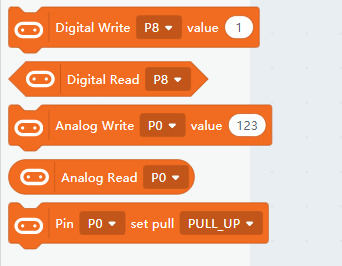

The blocks for the IO pins are found in the menu for Micro:bit.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/robobit_pinKB.png)

```

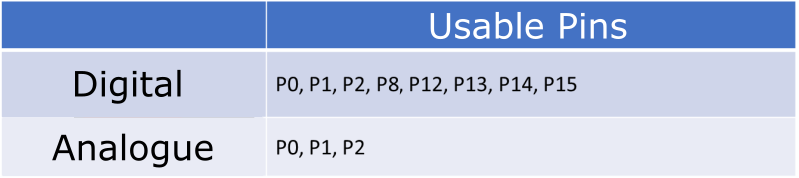

Pin 0-2 can be used as analog pins while P8, P12~P15 can only be used as digital pins.
Analog values have a range of 0 to 1023, digital values have a range of 0 to 1.
```

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/robotbit_pin1.png)

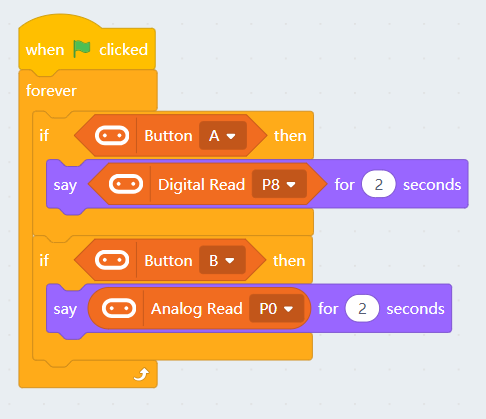

**5.1 Reading values from pins**

```
Pin 0 is occupied by the buzzer by default, the jumper should be removed when using this pin.
```

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/robobit_pinKB2.png)

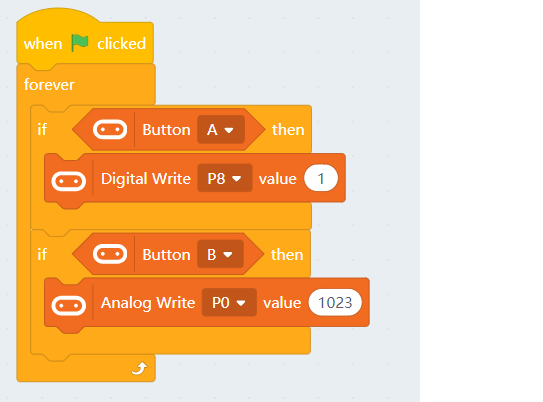

**5.2 Writing values to pins**

```
Pin 0 is occupied by the buzzer by default, the jumper should be removed when using this pin.
```

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/robobit_pinKB3.png)
