# Sugar Magnet Sensor Module

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/magnet1.png)

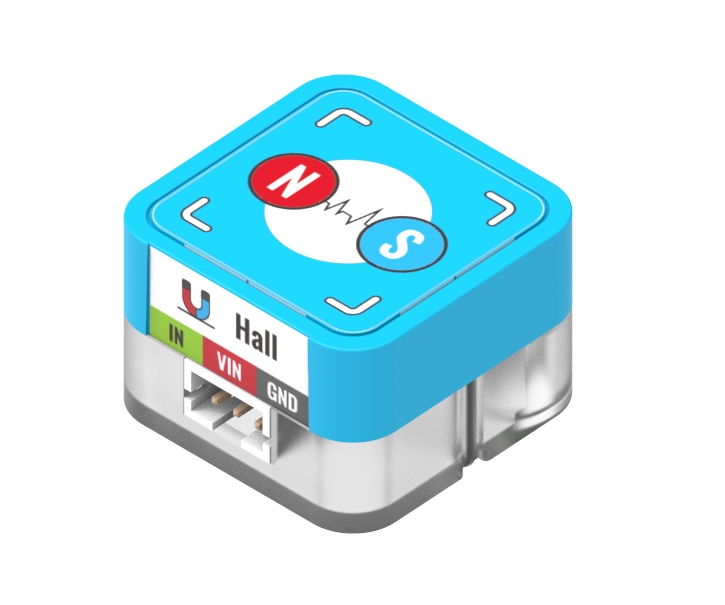

This is a magnet sensor module in the Sugar sensor series. The pin holes on the back allow compatibility with plastic building bricks.

### Product Specifications

* Dimension: 24 x 24 x 16 mm
* Weight: 4.7g
* Type: Digital

### Wiring

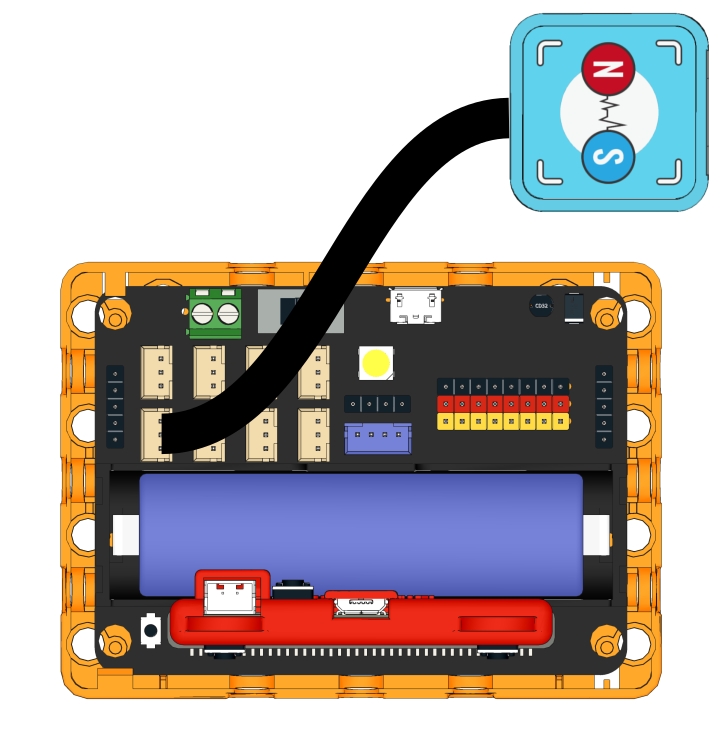

Use a 3Pin cable to connect the module to Robotbit Edu.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/magnet_wire.png)

### Programming Tutorial

### MakeCode Programming Tutorial

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/mcbanner.png)

#### Import Sugar Extension

#### Search for sugar in the search bar (Kittenbot products has been verified by Microsoft)

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/sugar_search.png)

#### Extension URL

Sugar extension: <https://github.com/KittenBot/pxt-sugar>

[Importing Extensions Tutorial](https://sharinghub-eng.kittenbot.hk/programming-platforms/makecode-tutorial/kittenbot-and-makecode)

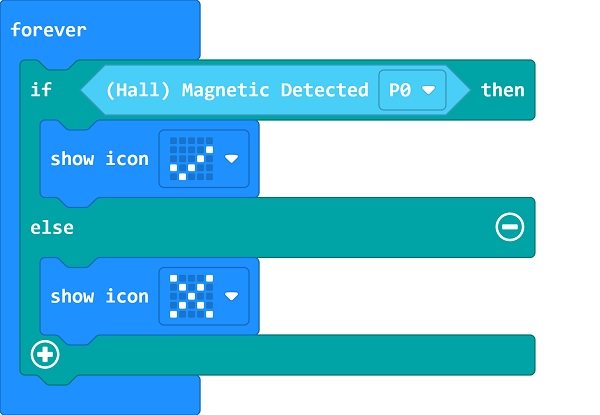

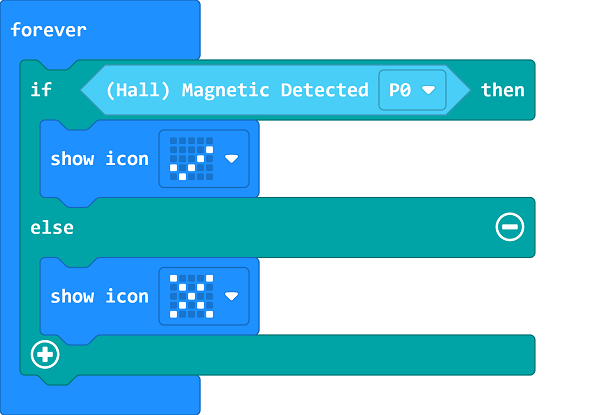

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/magnet_mc_code.png)

[Sample Program](https://makecode.microbit.org/_WmmeY32p5bdJ)

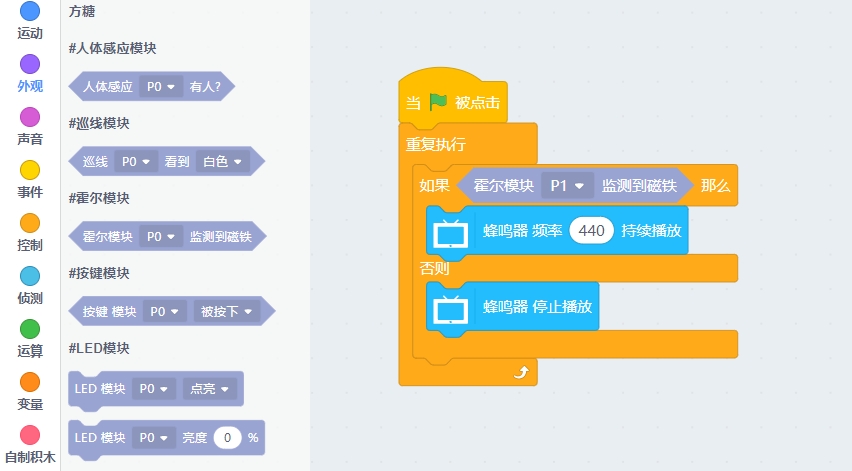

#### Kittenblock Programming Tutorial

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/kbbanner.png)

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/magnet3.png)

#### MicroPython Programming Tutorial

```
Hall(pin)
value()
```

* value(): Returns sensor status

Sample Program

```
from future import *
from sugar import *

hall = Hall('P1')

while True:
    if hall.value():
        buzzer.tone(440, -1)
    else:
        buzzer.stop()
```
