SumoBot 12-in-1 Kit

SumoBot 12-in-1 Model Instructions

Sumo Wrestler

PreviousRoboDino NextRoboFootballer

Last updated 1 year ago

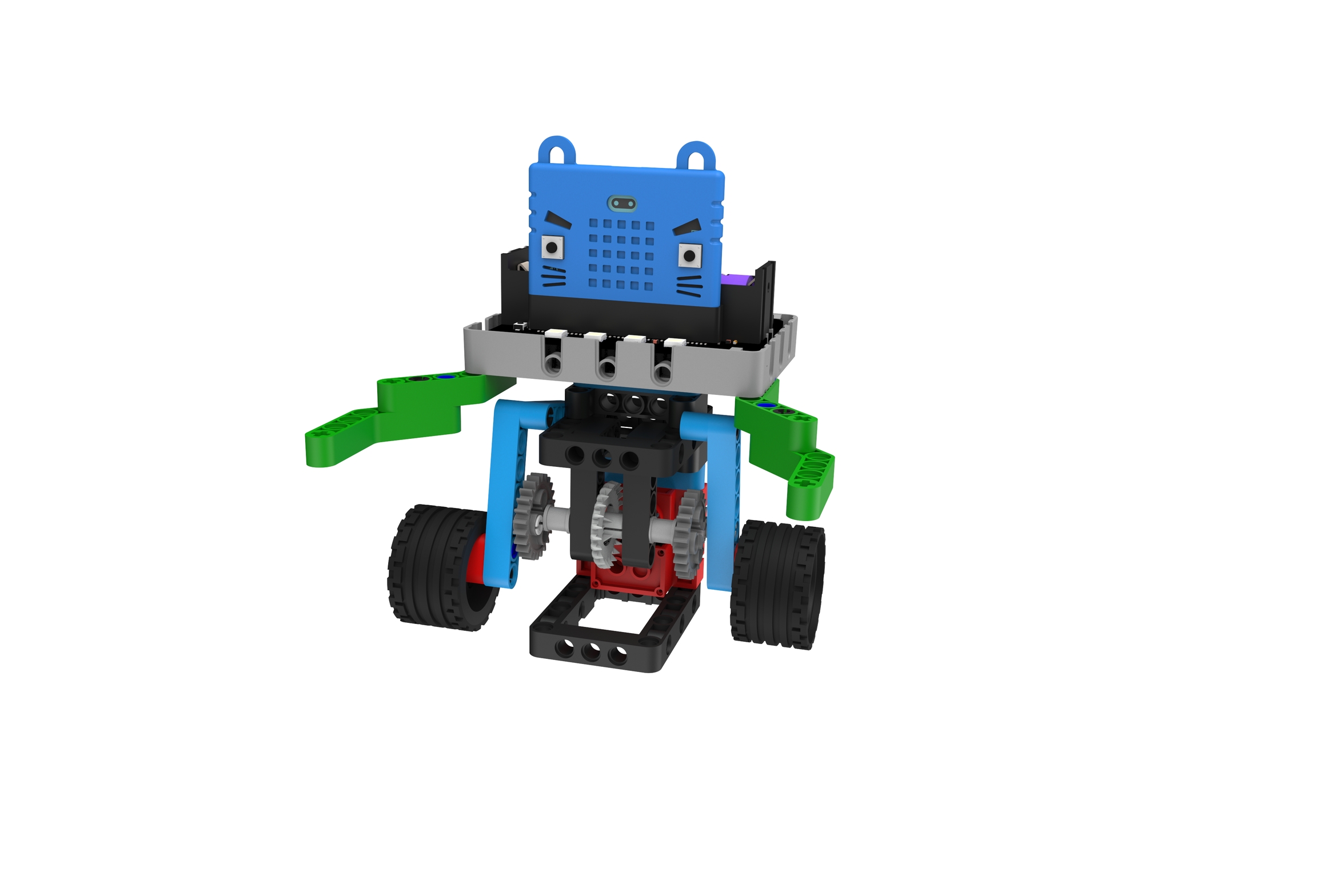

Use its huge body and pushing power to push the opponent out of the arena.

Building Instructions and Sample Programs

Building Instructions

Sumo Wrestler-Joyfrog Controller

Sumo Wrestler-Microbit Controller

Sumo Wrestler-Robot

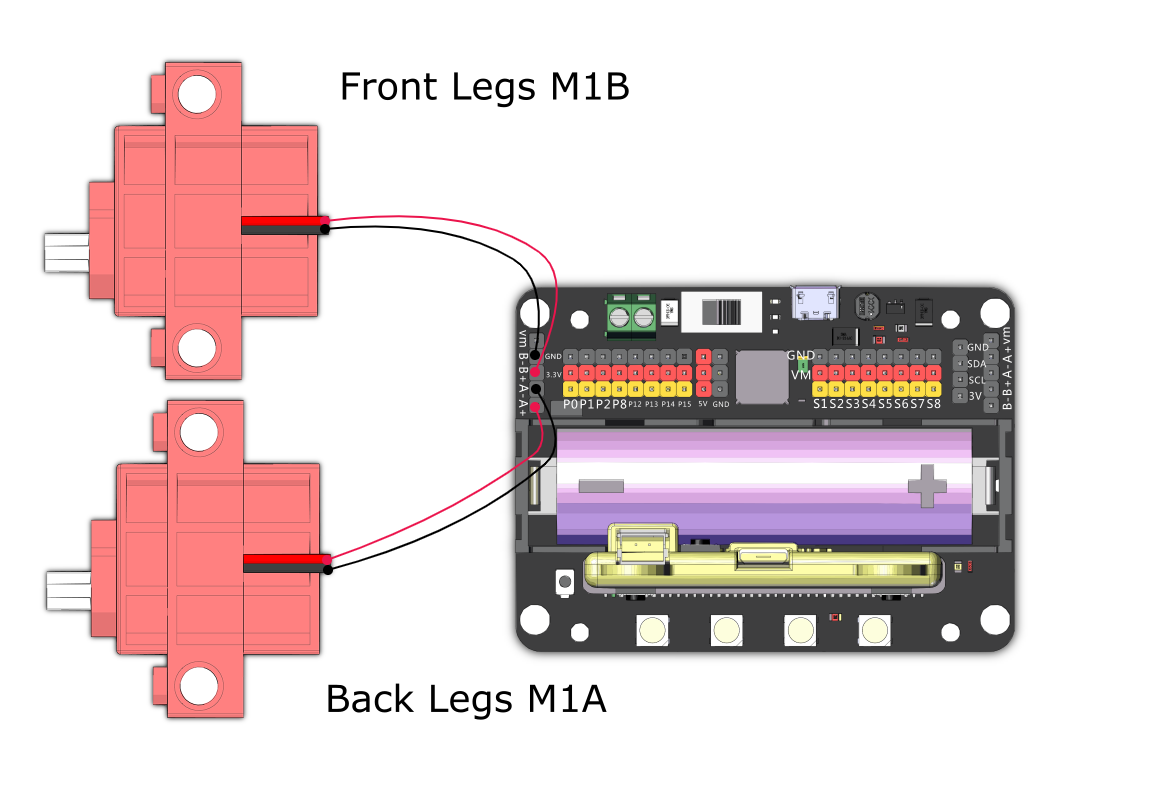

Sample Wiring

Operating the Robot

JoyFrog Controller:

The robot should show a red light and the controller should show a cross (X) when the power is switched on.
Press A to pair the robot, the robot should show a green light upon successful pairing.
Use the joystick for movement.

Microbit Controller:

The robot should show a red light and the controller should show a cross (X) when the power is switched on.
Press A to pair the robot, the robot should show a green light upon successful pairing.
Use the accelerometer for movement.
