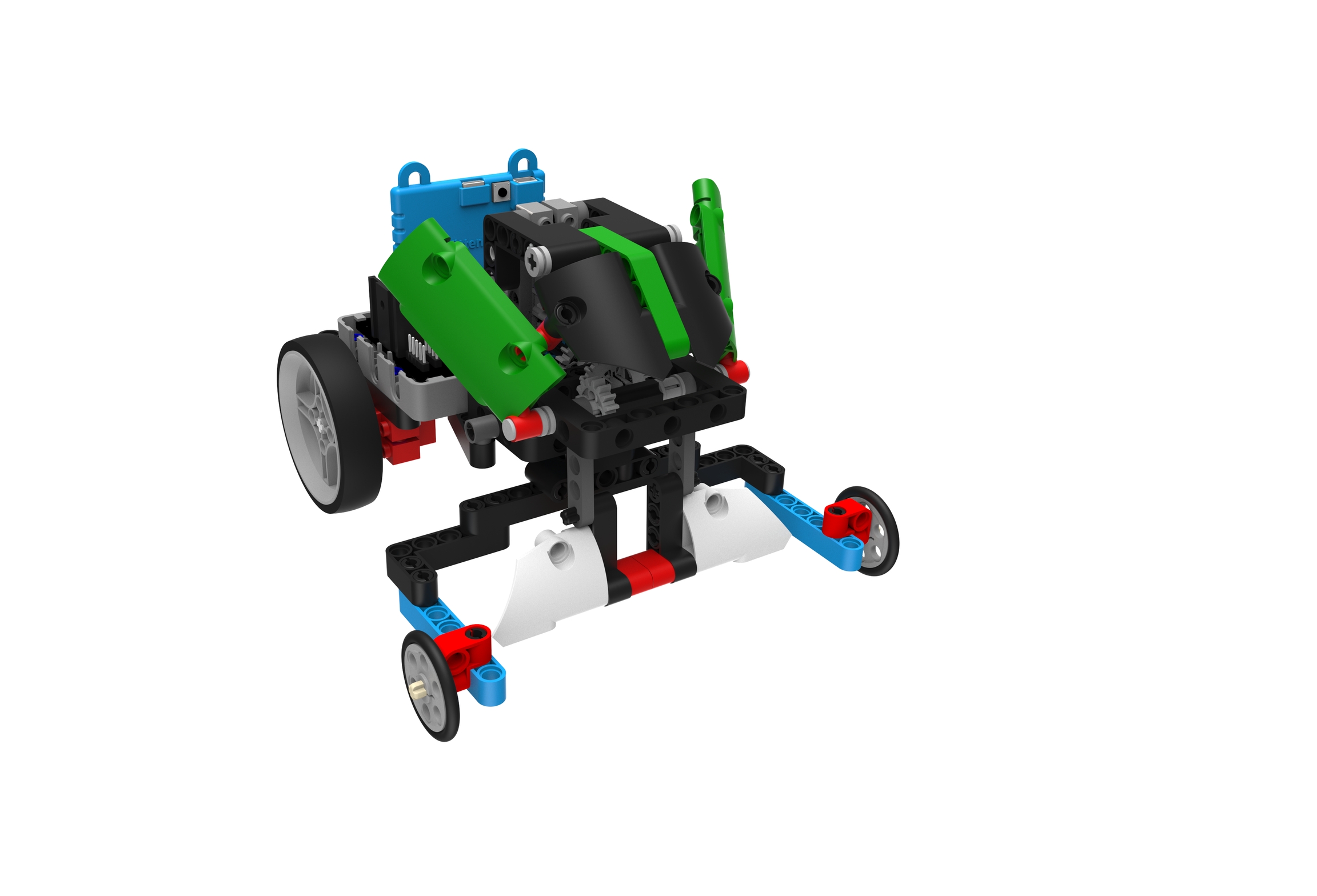

RoboFootballer

PreviousSumo Wrestler NextRoadBlock Smasher

Last updated 1 year ago

Use its agility to score by kicking the football into the goal.

Building Instructions and Sample Programs

Building Instructions

RoboFootballer-Joyfrog Controller

RoboFootballer-Microbit Controller

RoboFootballer-Robot

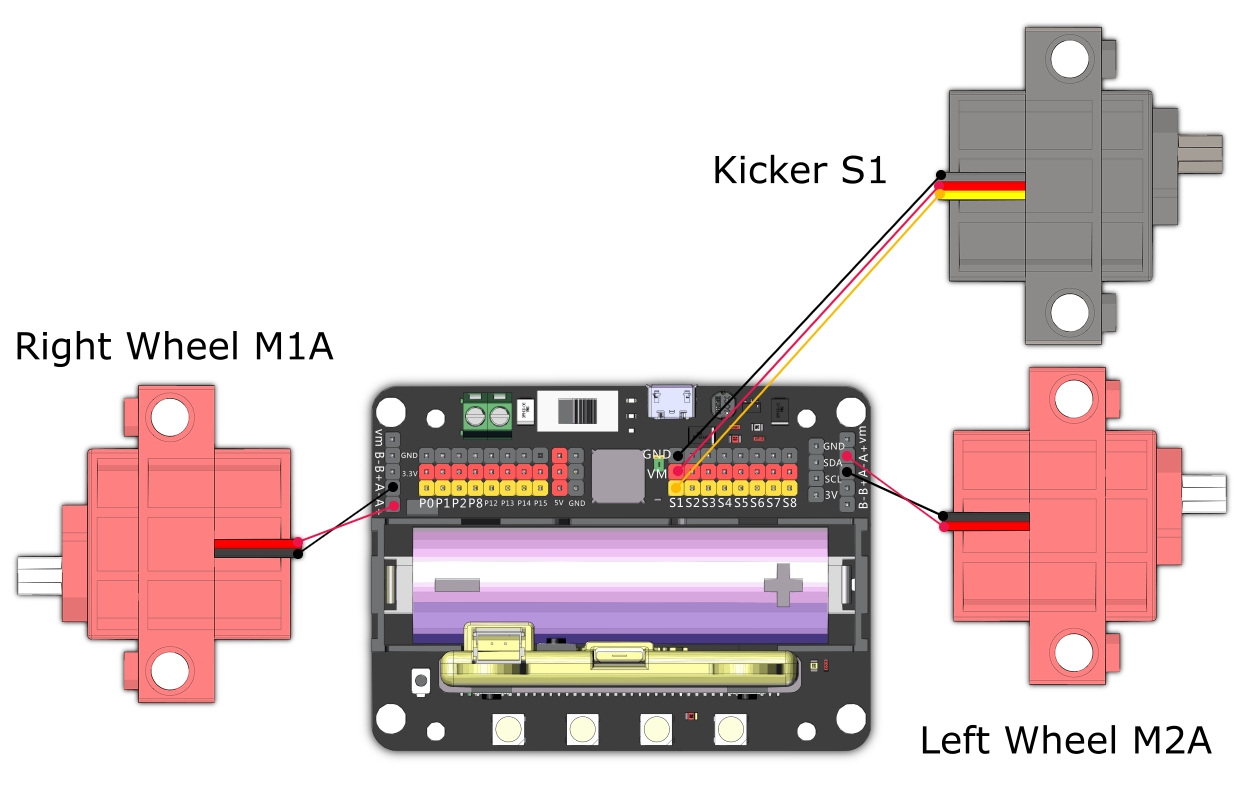

Sample Wiring

Operating the Robot

JoyFrog Controller:

The robot should show a red light and the controller should show a cross (X) when the power is switched on.
Press A to pair the robot, the robot should show a green light upon successful pairing.
Use the joystick for movement.
When the moment is right, press B to kick the football.

Microbit Controller:

The robot should show a red light and the controller should show a cross (X) when the power is switched on.
Press A to pair the robot, the robot should show a green light upon successful pairing.
Use the accelerometer for movement.
When the moment is right, press B to kick the football.
