All in 1 Water Pump

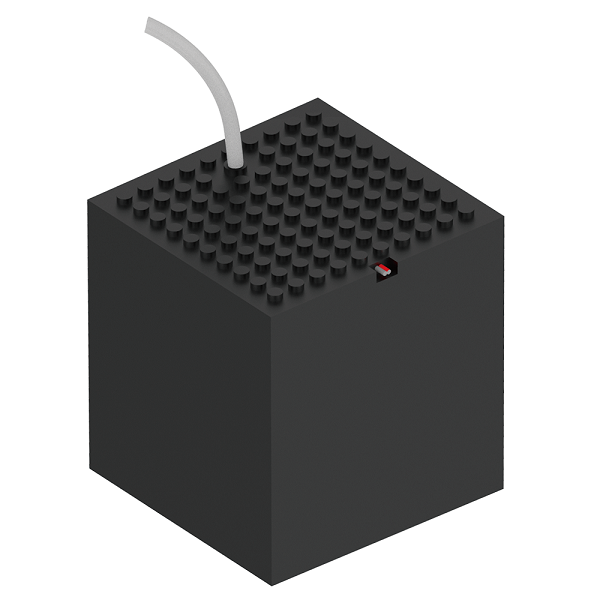

All in 1 Water Pump (HKBM8015A)

This is a submersible pump and water tank combo, it is suitable for smart irrigation or hand washer projects.

Specifications

• Voltage: 3.3V~6V

• Dimensions: 86.5X86.5X98mm

• Current: 120mA(3.3V)

• Max flow rate: 80L/h

• Hydraulic head: 0.35M

• Weight: 140g

• Tube lengrh: 60cm

• Interface: 2Pin Dupont Cable

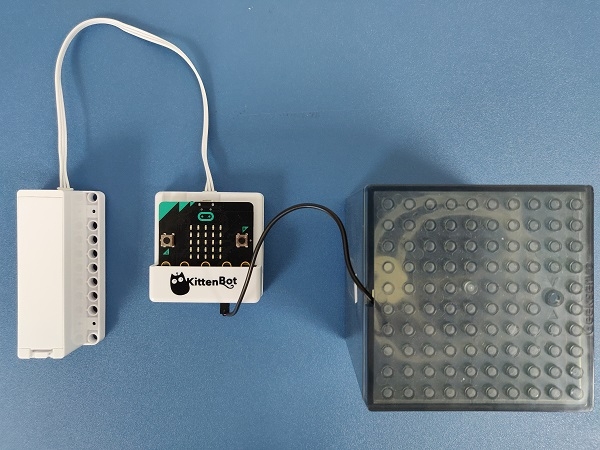

Wiring Diagram

Connect the pump module to the motor pins on the Robotbit or Armourbit.

Reversing the connection is ok.

MakeCode Programming Tutorial

ArmourBit

Load Powerbrick Extension:

Search Powerbrick (powerbrick is verified by Microsoft)

Importing Extensions Tutorial

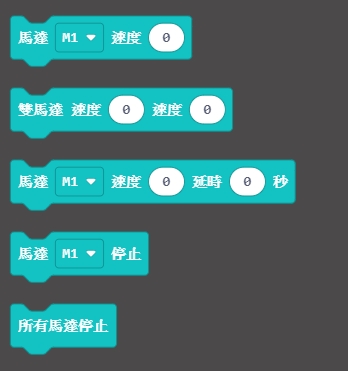

Blocks for motor:

Controlling the motor:

Sample Code Download

Sample Code Link

Robotbit

Load Robotbit extension: https://github.com/KittenBot/pxt-robotbit

How to load extension?

Motor blocks:

Controlling the motor

Sample Code Link

Meowbit:

Load Robotbit expansion: https://github.com/KittenBot/meow-robotbit

Motor Blocks:

Controlling the motor

Sample Code Link

Extension Version and Updates

There may be updates to extensions periodically, please refer to the following link to update/downgrade your extension.

Makecode Extension Update

KittenBlock Coding Tutorial

Armourbit

Load Powerbrick Extension

Select Powerbrick from the hardware column.

Motor blocks

Controlling the motor

Robotbit

Load Robotbit Extension

Select Micro:bit from the hardware column.

Motor blocks

Controlling the motor

FAQ

1：Why is there no reaction when I click the blocks?

Make sure you have connected the Micro:bit correctly and flash the firmware again.
