Programming with Kittenblock: Onboard Sensors

here are multiple onboard sensors on Futureboard.

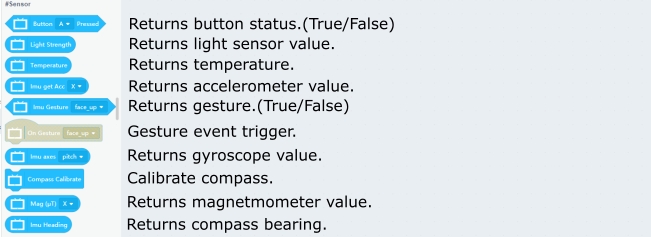

Onboard Sensors Blocks

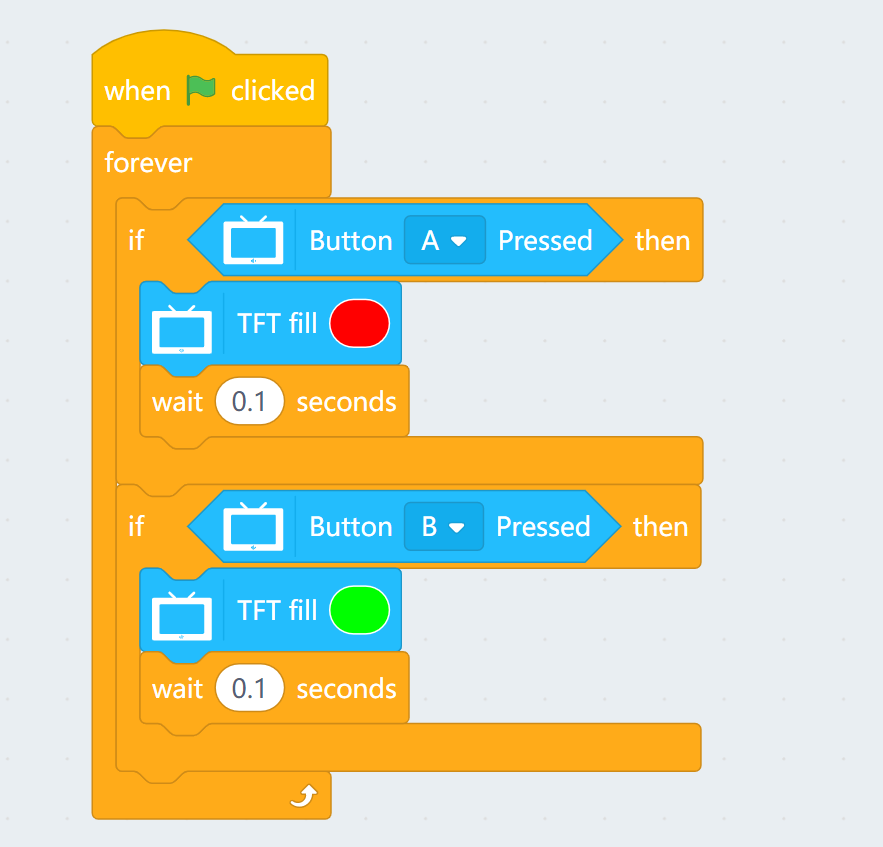

Sample Program: Buttons

Pressing the buttons changes the color.

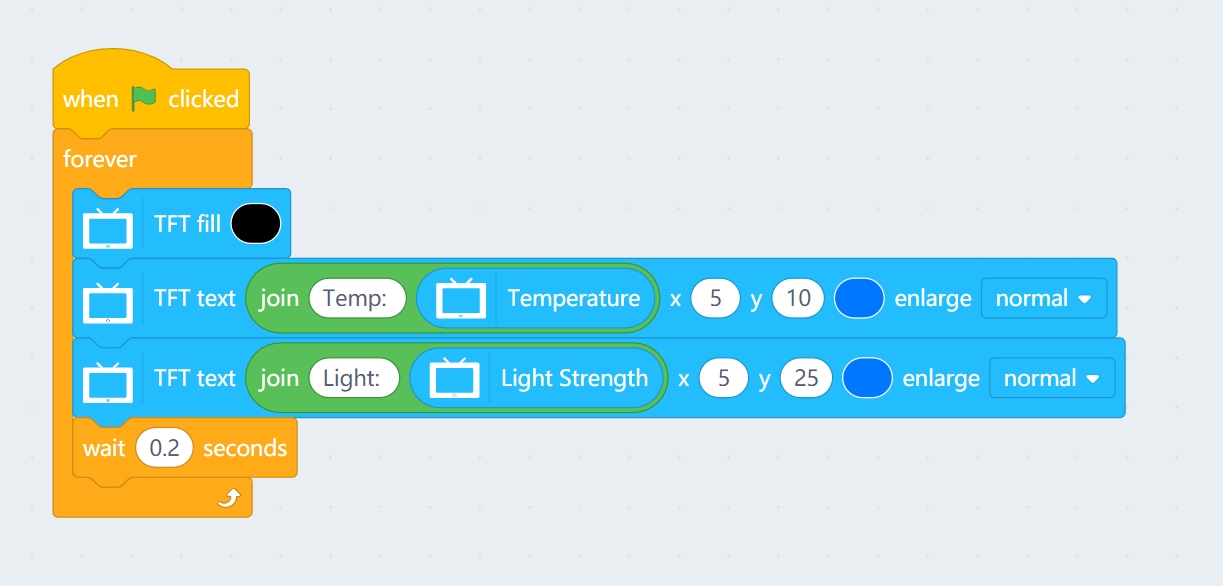

Sample Program: Temperature and Light sensors

The sensor values are shown on the screen.

Sample Program: Accelerometer and Gyroscope

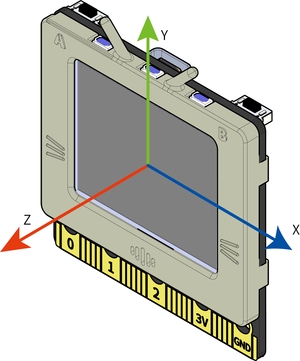

Please refer to the following figure for the axis orientation.

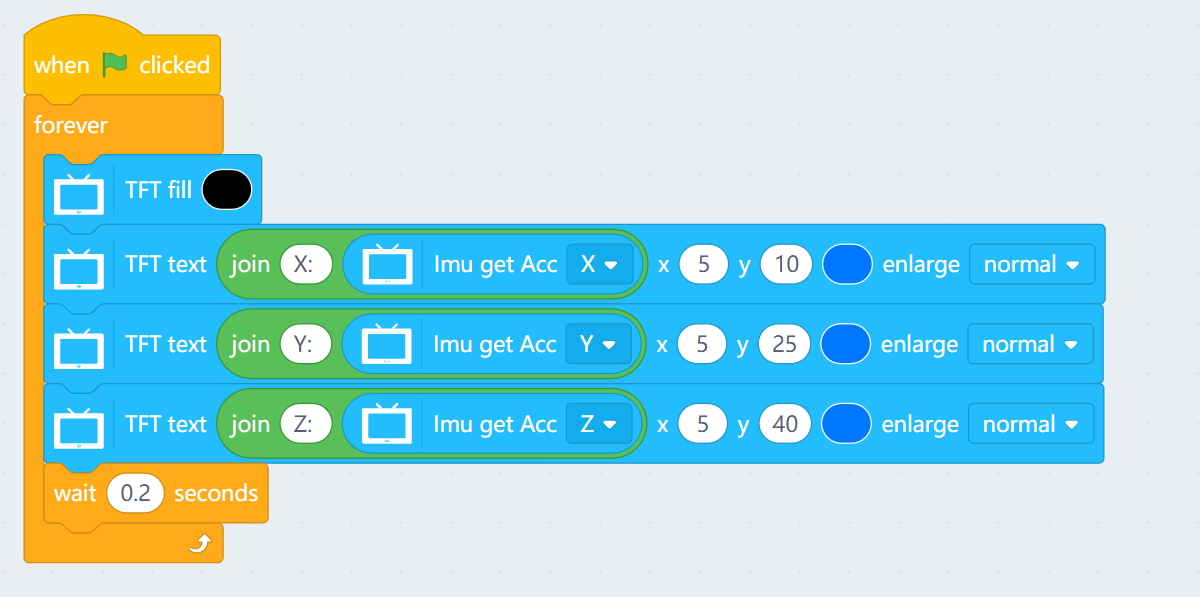

The acceleration values are shown on the screen.

Sample Program: Gestures

The Futureboard can detect 8 gestures:

  1. ‘shake’

  2. ‘freefall’

  3. ‘tilt_up’

  4. ‘tilt_down’

  5. ‘tilt_left’

  6. ‘tilt_right’

  7. ‘face_up’

  8. ‘face_down’

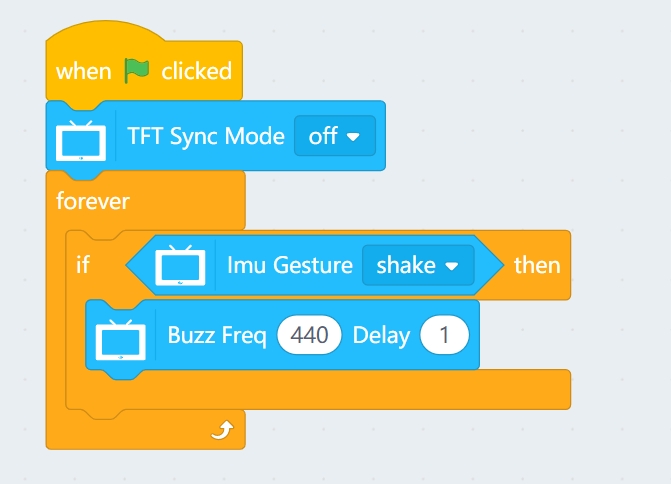

Shake the FutureBoard for a sound.

Sample Program: Gesture Triggers

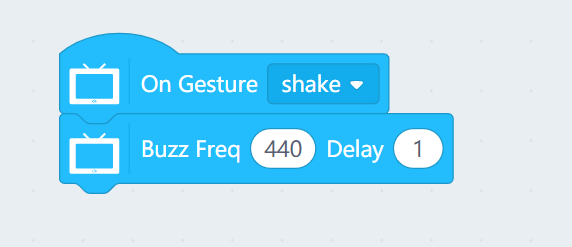

Shake the FutureBoard for a sound.

Note: Trigger Events only work when the program is uploaded onto the FutureBoard.

Sample Program: Gyroscope

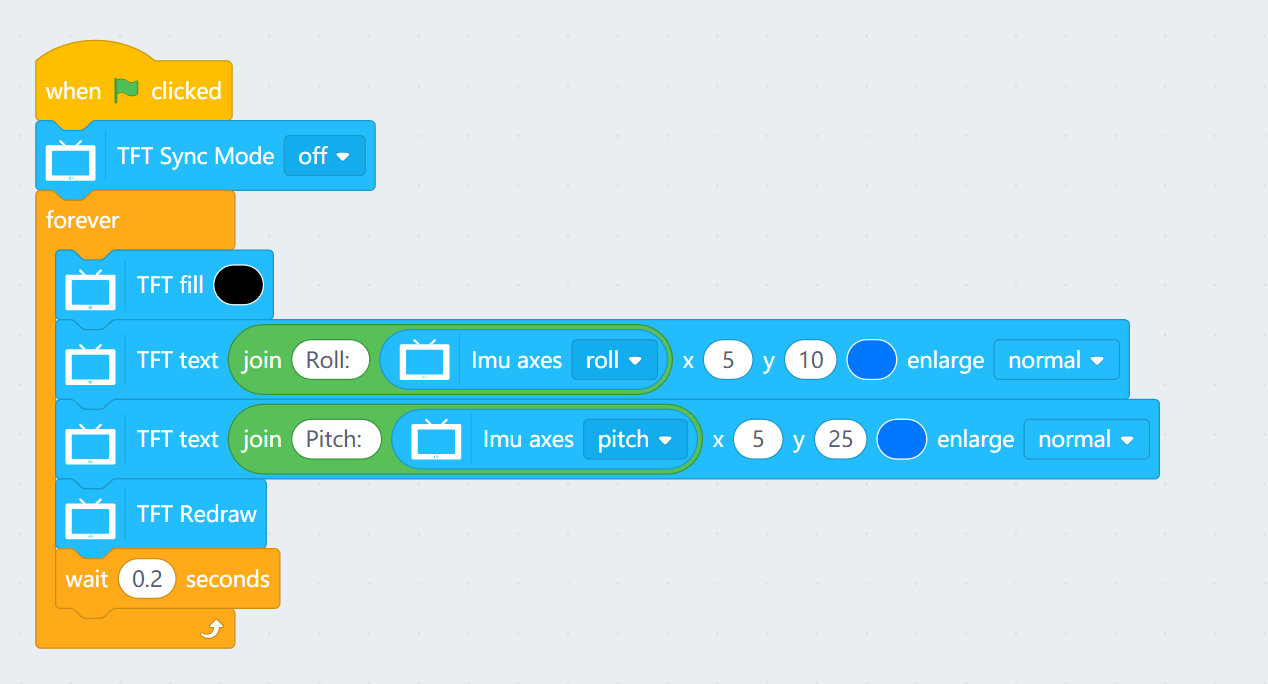

Shows the roll and pitch of the FutureBoard.

Sample Program: Magnetic Sensor

The magnetic sensor has a range of ±800(μT)。

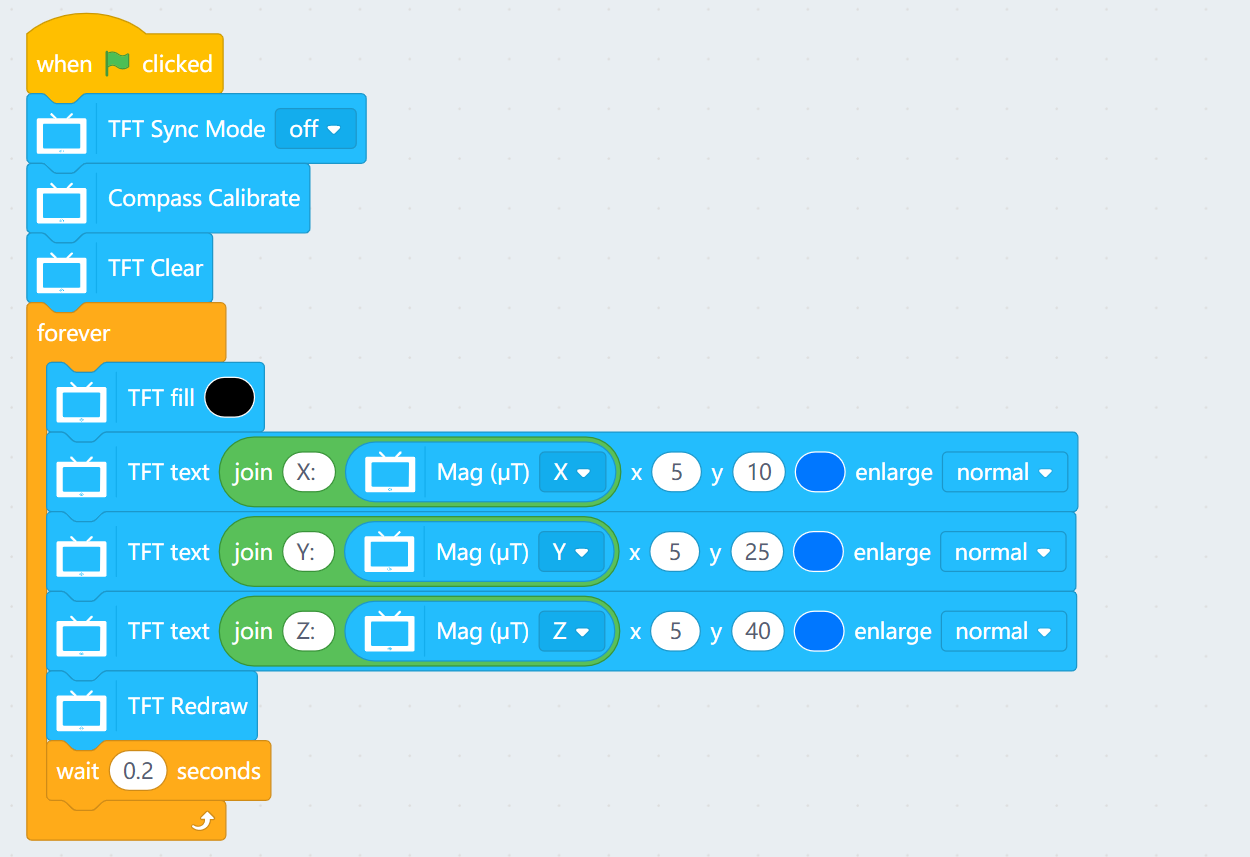

The magnetic strengths are shown on FutureBoard.

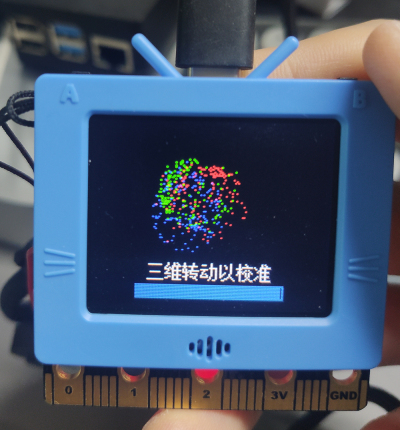

The magnetic sensor needs to be calibrated before use.

Sample Program: Compass

The compass returns a compass bearing, with 0 indicating North.

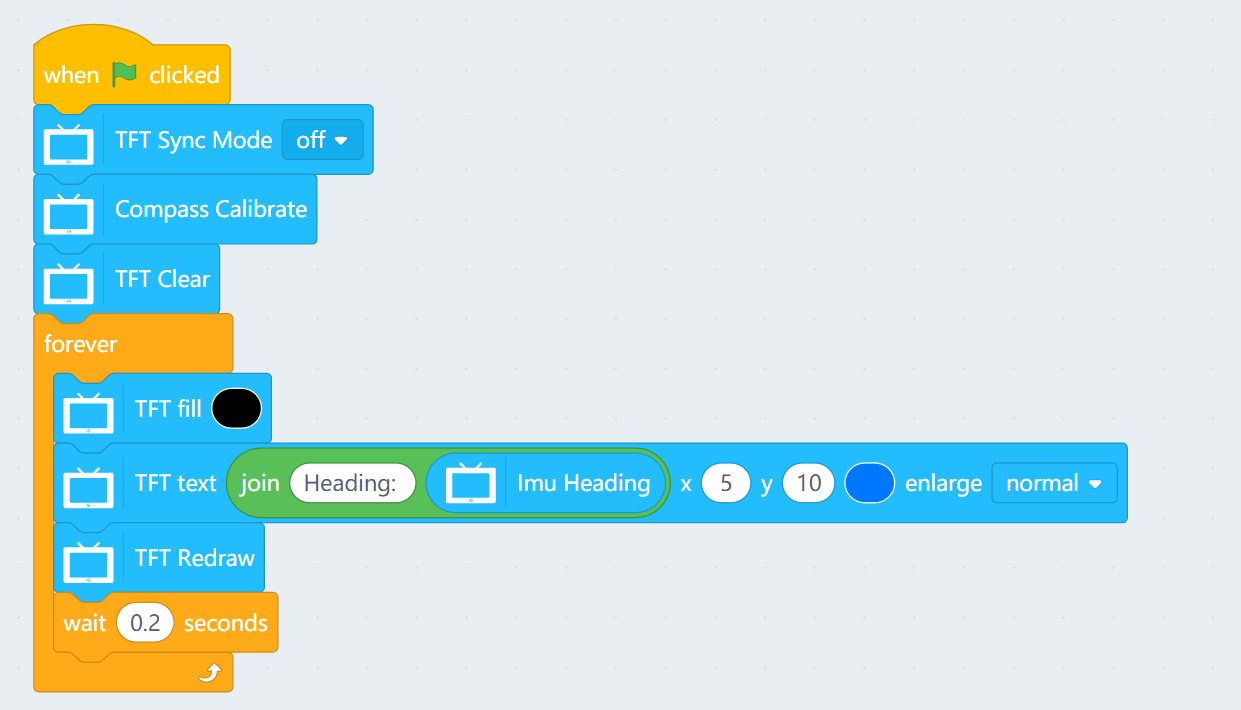

The compass bearing is shown.
