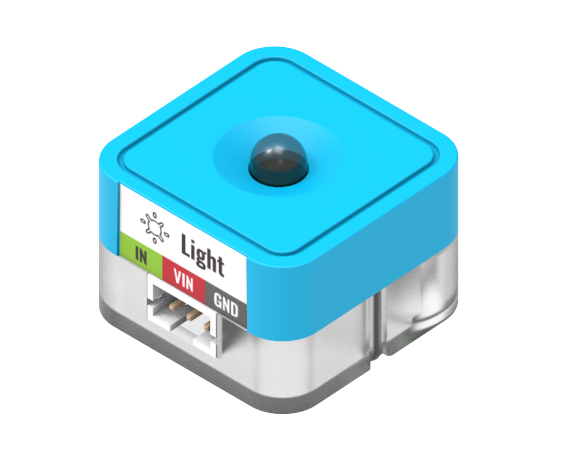

Sugar Light Sensor Module

This is a light sensor module in the Sugar sensor series, the pin holes on the back allow compatibility with plastic building bricks.

Product Specifications

• Dimensions: 24 x 24 x 23 mm

• Weight: 6.7g

• Type: Analog

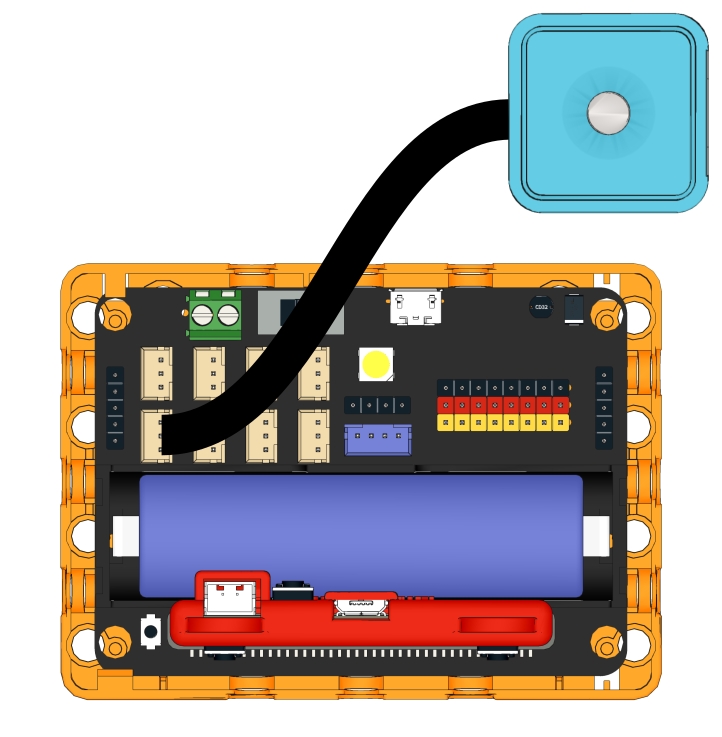

Wiring

Use a 3Pin cable to connect

Programming Tutorial

MakeCode Programming Tutorial

Import Sugar Extension

Search for sugar in the search bar (Kittenbot products has been verified by Microsoft)

Extension URL

Sugar extension: https://github.com/KittenBot/pxt-sugar

Importing Extensions Tutorial

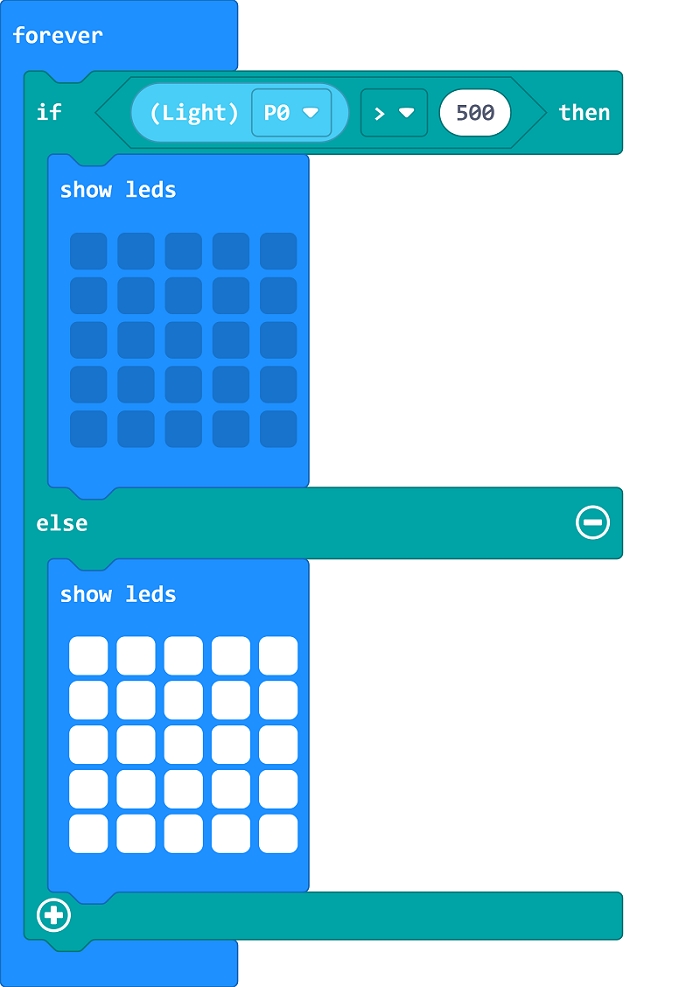

Sample Program

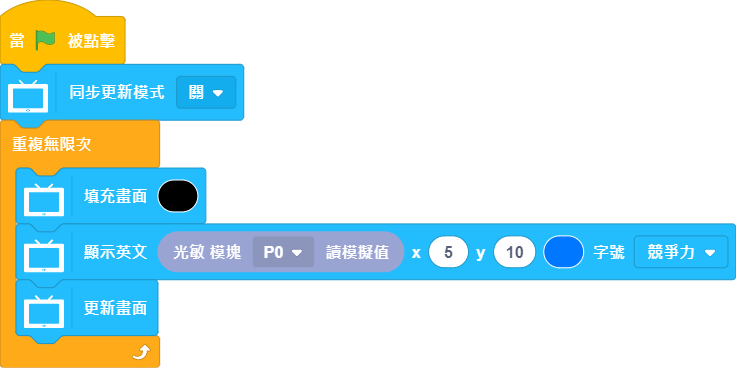

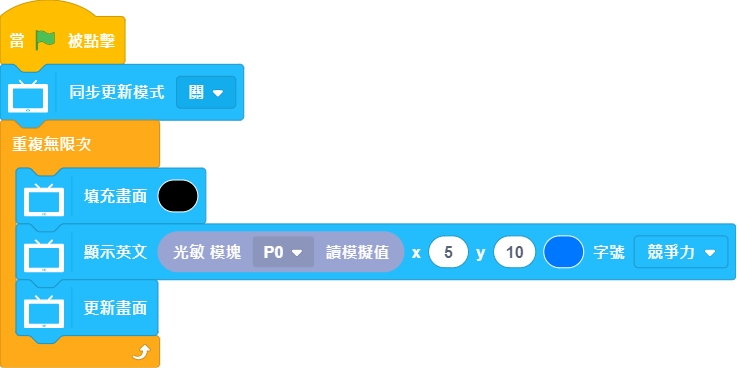

Kittenblock Programming Tutorial

MicroPython Programming

Light(pin)
value()

• value(): Analog Value

Sample Program

from future import *

from sugar import *

light_P0 = Light('P0')

x = 0

screen.sync = 0
while True:
  screen.fill((0, 0, 0))
  screen.text(light_P0.value(),5,10,2,(0, 119, 255))
  screen.refresh()
