# Sugar Weigh Module

<figure><img src="https://686851495-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F7Bv9xBdKh3R9w6Vp7asd%2Fuploads%2F2Booat4ZtIoGZGnkSAII%2Fweight1.webp?alt=media&#x26;token=15f6f194-1e51-4934-aa1b-5e884f525a95" alt=""><figcaption></figcaption></figure>

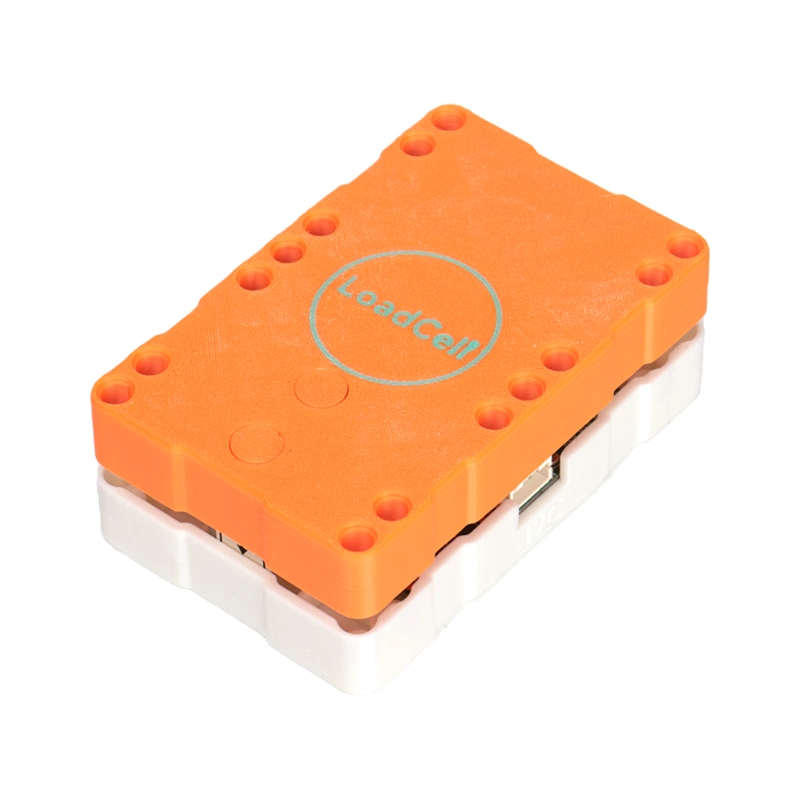

Sugar Weigh Module can measure the weight of items.

## Product Specifications

* Size: 88x56x33mm
* Type: I2C
* Measurable Range: 0-5kg
* Accuracy: 0.1g
* Voltage: 3.3V/5V

## Product Wiring

#### Robotbit EDU

<figure><img src="https://686851495-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F7Bv9xBdKh3R9w6Vp7asd%2Fuploads%2Fizu2726eef2yCNgX8V11%2Floadcell_wiring_edu.png?alt=media&#x26;token=660b7b36-30e0-43de-a855-d52a0e3765ef" alt=""><figcaption></figcaption></figure>

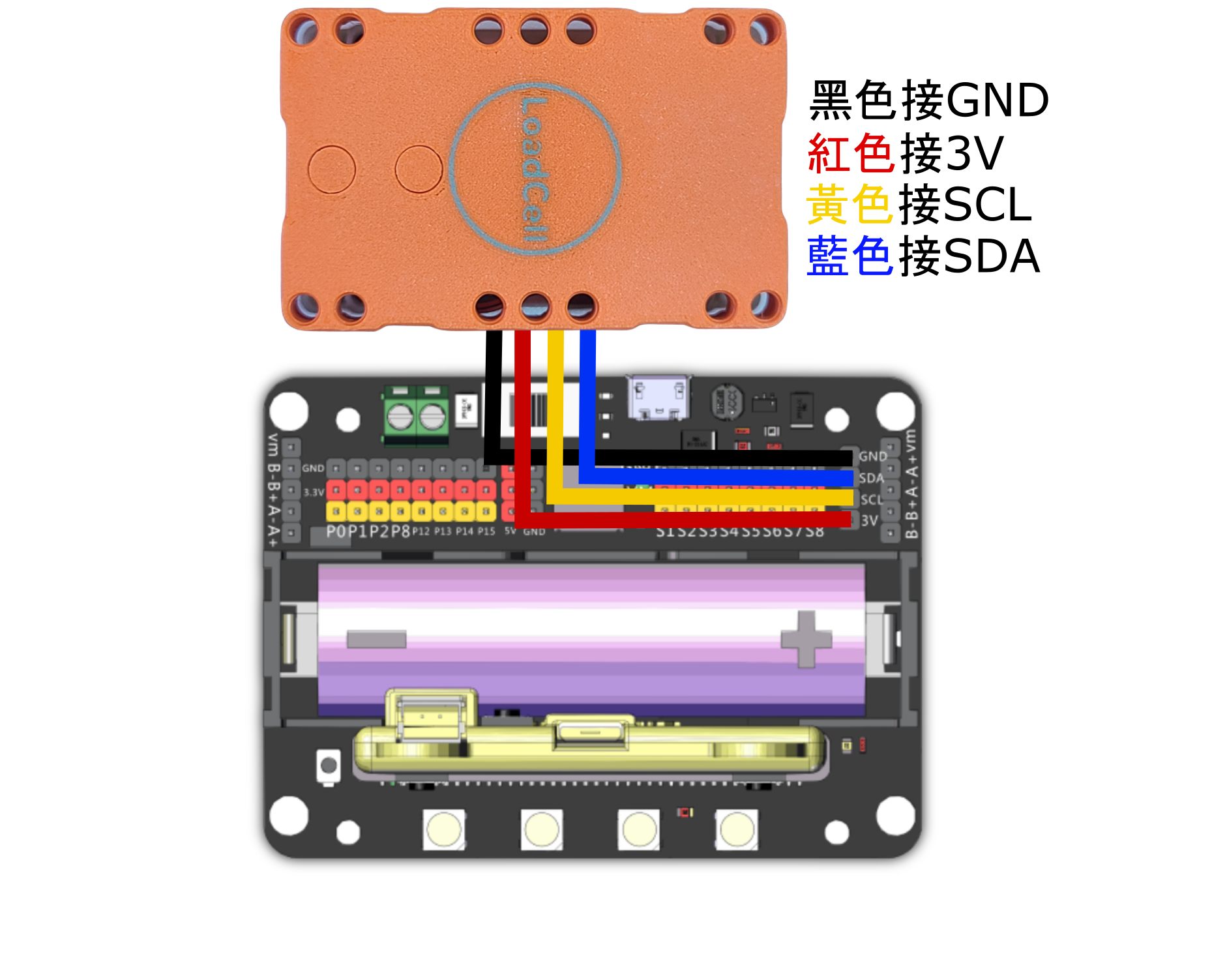

#### Robotbit 2.2

<figure><img src="https://686851495-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F7Bv9xBdKh3R9w6Vp7asd%2Fuploads%2F9rxCjQZKLeRf2hDbqV2u%2Floadcell_wiring_2.2.png?alt=media&#x26;token=2f930679-f1bc-4e7c-96d7-647daada44a2" alt=""><figcaption></figcaption></figure>

### Programming Tutorial

#### MakeCode Programming Tutorial

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/mcbanner.png)

#### Import Sugar Extension

#### Search for sugar in the search bar (Kittenbot products has been verified by Microsoft)

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/sugar_search.png)

[Importing Extensions Tutorial](https://sharinghub-eng.kittenbot.hk/programming-platforms/makecode-tutorial/kittenbot-and-makecode)

#### Extension URL

Sugar extension: <https://github.com/KittenBot/pxt-sugar>

### Sample Program

### Weighing an Item

{% embed url="<https://makecode.microbit.org/_aaoKocVruX1t>" %}

[Sample Program](https://makecode.microbit.org/_W020dvAC6XTU)
