RGB LED Screen Daisy Chaining

The LED Screens can be chained together to create a larger screen.

Daisy Chaining

Wiring

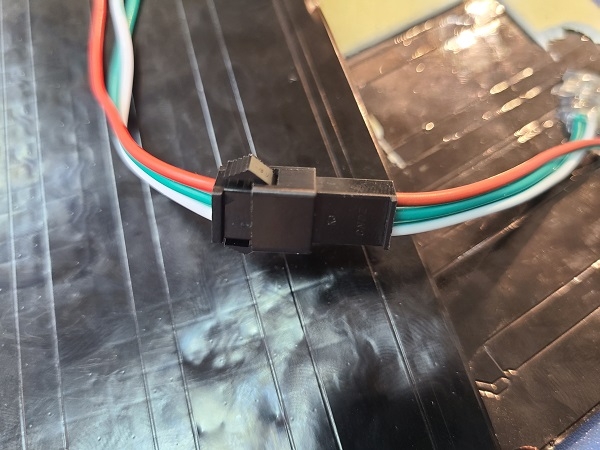

Connect the dout(male)of screen 1 to the din(female) of screen 2

It is not recommended to connect 2 screens of different types as the calculations may become difficult.

Coding Tutorial

Load the NeoPixel extension.

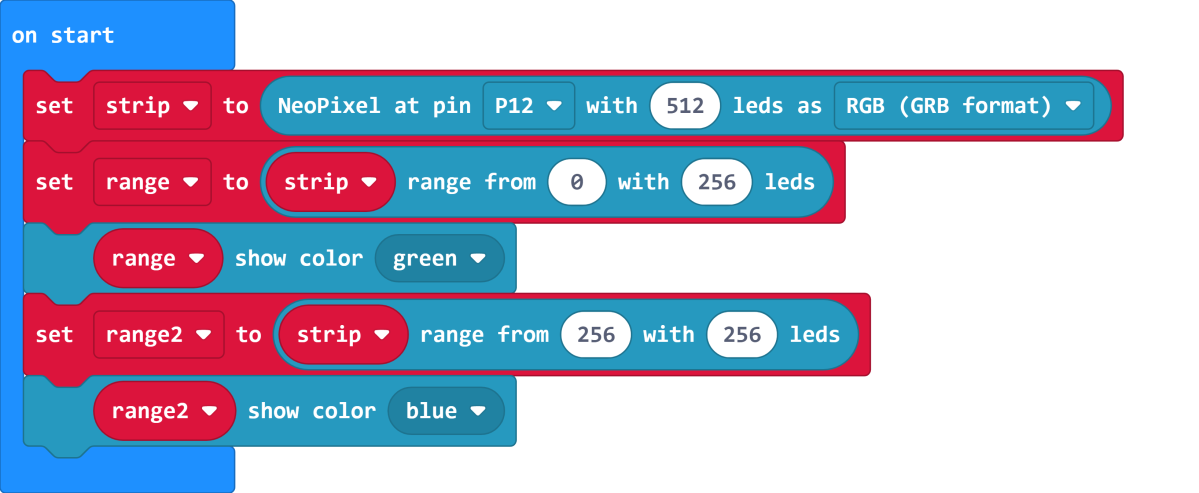

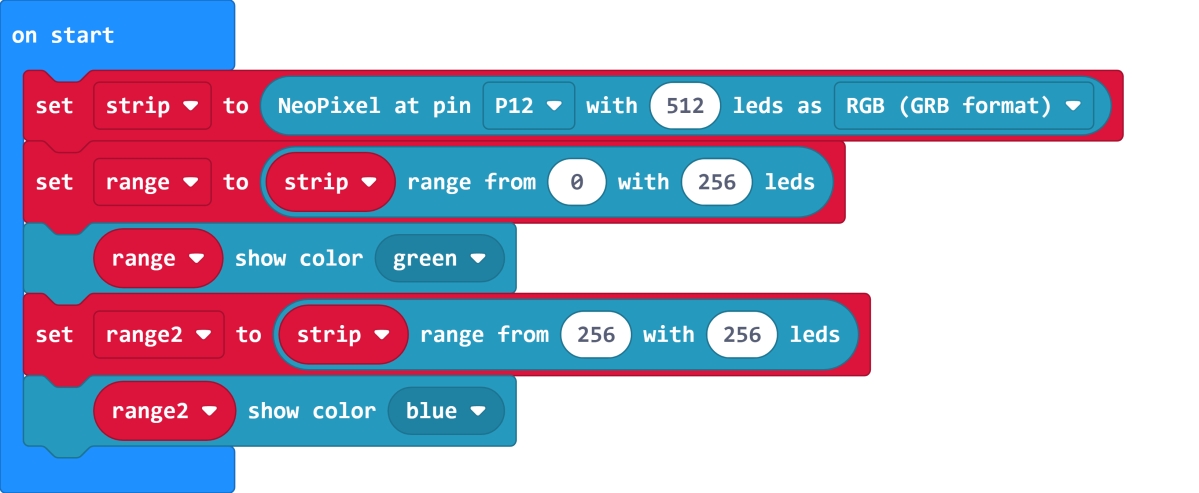

Initialize the screen with the total number of LEDs(256x2=512).

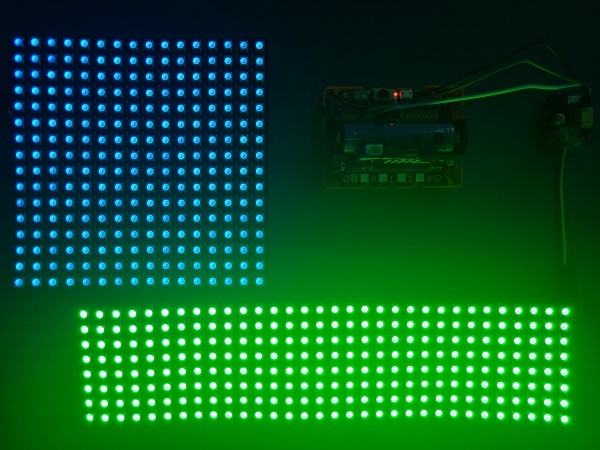

Pixels 0-255 and 256-511 control screen 1 and screen 2 respectively.

Sample Code Download

Sample Code Link

Daisy Chaining and Matrices

Daisy Chaining can be used alongside matrices. We initialize a matrix with the width of 1 screen.

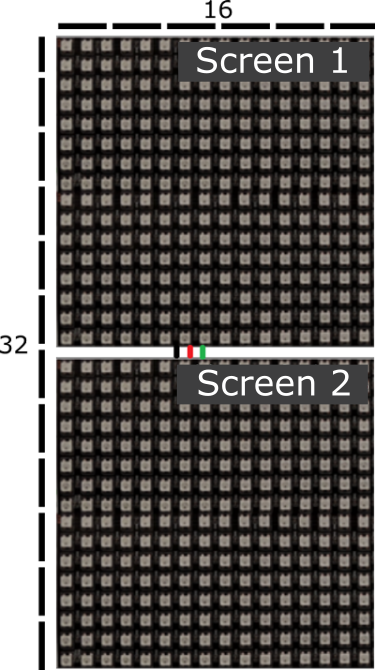

Using 2 16x16 screens, a 16x32 matrix can be created.

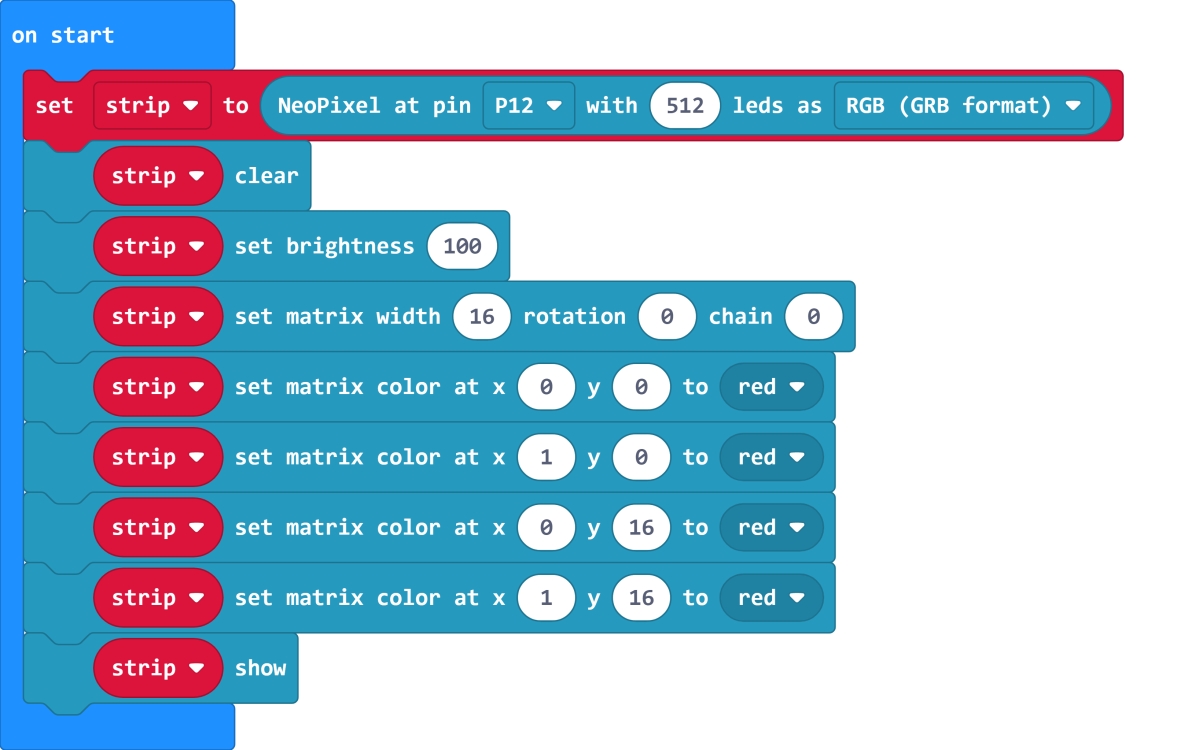

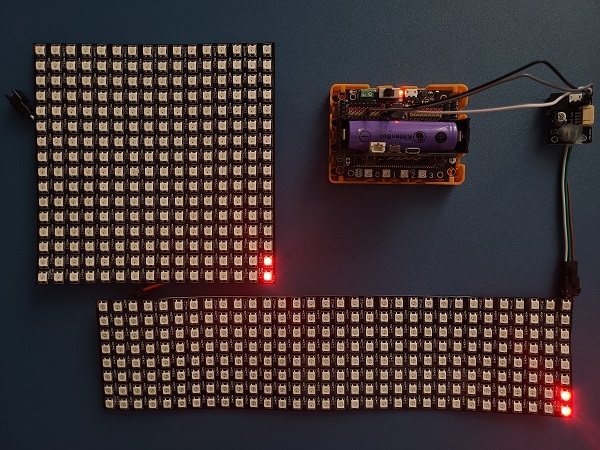

Lighting up the first 2 LEDs of each screen.

Y=0 and Y=16 refer to the first rows of each screen.
When rotation is 0 or 2, the 2nd screen extends the Y axis. When rotation is 1, the 2nd screen extends the X axis.

Sample Code Download

Sample Code Link

Daisy Chaining and Animations

Please reference “16x16 RGB LED Screen - Dynamic Effects Tutorial” for details on how to create animations.

16x16 RGB LED Screen - Dynamic Effects Tutorial

The logic is similar to this tutorial, we just change Y to control the 2nd screen.

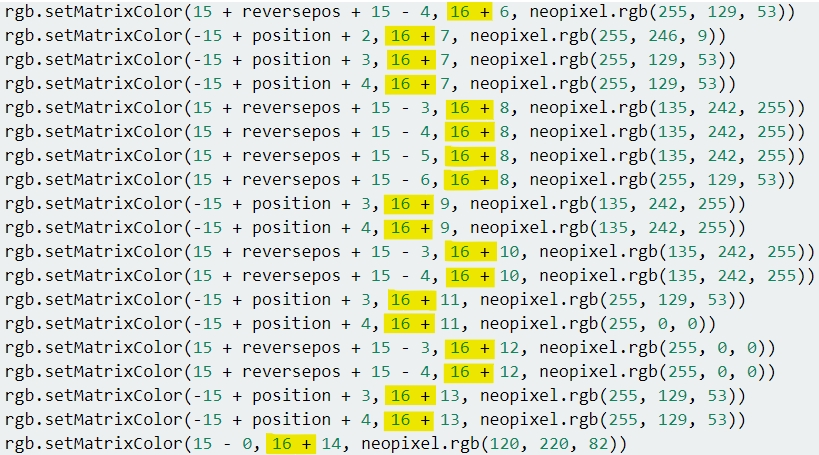

Example: We add 16 to Y to control the animation on the 2nd screen.

The order of frames may require changing if there are multiple frames.

Example: When playing an animation with 2 frames on a daisy chain with 2 screens, the order of frames in screen 1 is frame 1-> frame 2. but the order of frames in screen 2 is frame 2-> frame 1.

Sample Code Download

Sample Code Link

Extension Version and Updates

There may be updates to extensions periodically, please refer to the following link to update/downgrade your extension.

Makecode Extension Update

FAQ

Q: Why is red the only colour lit up when I try to use different colours?

A: There is not enough power.

Solution: Reduce brightness or turn on the power on the Robotbit, or connect to a USB power.

Precautions

• Do not connect a power supply with a voltage higher than 5V.

• Connect to a USB power supply when for prolonged use.

• Lower the brighness when a lot of LEDs are lit.

• This product is suitable for users aged over 14, children aged 8-14 need to be under the supervision of an adult when using this product.

• Please refer to Kittenbot’s official guidelines before using, wiring must follow the guidelines, do not use a high power servo or motor when using this product.

• To avoid short circuiting, do not put this product on conductive surfaces such as metal.

• To avoid short circuiting, do not put this product in water.

• Do not touch the exposed wires with bare hands.
