# K-Watch for Futureboard

![](https://kittenbothk.readthedocs.io/en/latest/_images/kwatch4.png)

K-Watch is the expansion board designed for Futureboard, it has built-in clock module and power. Its wearable form allows users to create numerous wearable applications.

### K-Watch Special Features

![](https://kittenbothk.readthedocs.io/en/latest/_images/kwatch1.jpg)

* Lightweight
  * Suitable for wearables
* Selectable form
  * Select either wrist strap of waist strap to suit your needs
* Built-in battery
* Built-in RTC module
* Built-in speaker
* Transmit voice clips wirelessly

### K-Watch Specifications

* Dimensions: 78 x 57 x 23 mm
* Weight: 37.5g
* Power: 5V(USB)、3.7\~4.2V（Battery）
* Voltage: 3V/5V
* Built-in functions: clock module, speaker

### Set Contents

1. K-Watch x1
2. M3 screws x5
3. Battery x1
4. Screwdriver x1
5. Velcro x1
6. Wrist strap x1
7. Waist strap x1

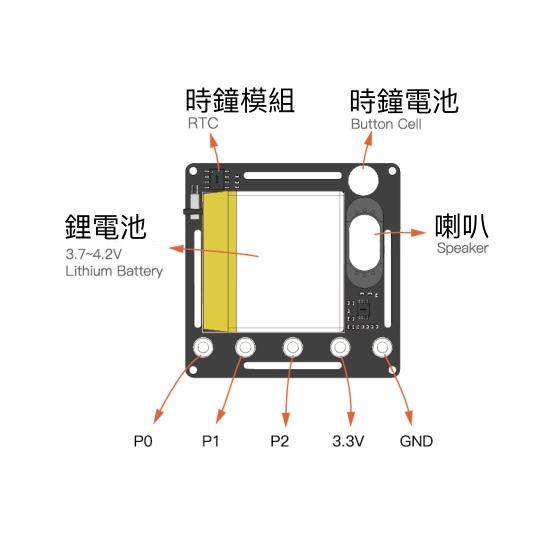

### K-Watch Details

![](https://kittenbothk.readthedocs.io/en/latest/_images/board.png)

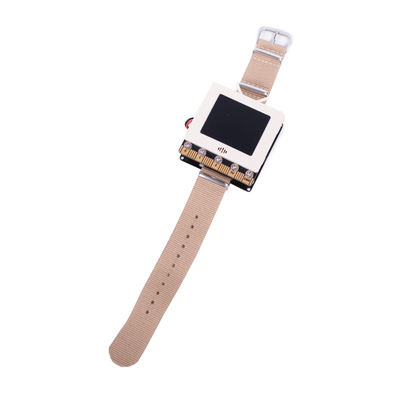

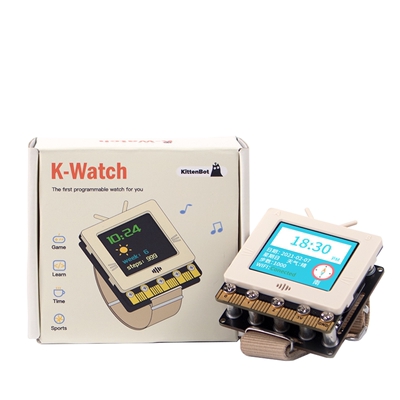

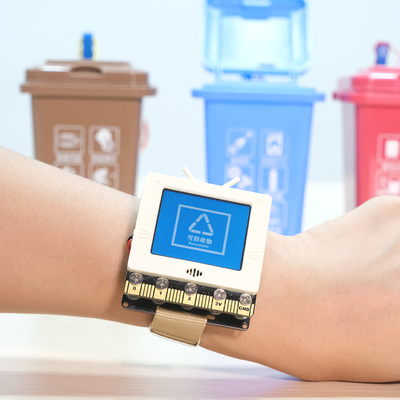

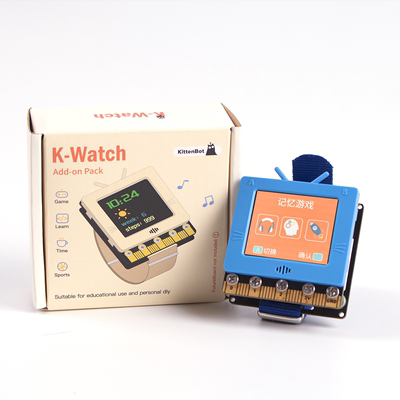

### Product Photos

![](https://kittenbothk.readthedocs.io/en/latest/_images/kwatch2.jpg)

![](https://kittenbothk.readthedocs.io/en/latest/_images/kwatch3.jpg)


---
