# GeekServo 2KG Motors

2KG Motors (HKBD8009A)

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/image--0101.png)

This is a motor compatible with Lego technic parts, compared to 9g motors, it has a higher speed. The output axle is a Lego technic axle connector. It is suitable for applications where a high power driver is required.

### Specifications

* Operating Voltage: 3.3V\~6V
* Rated Voltage: 4.8V
* Rated Current: 70mA
* Blocked Motor Current: 900mA
* Slipping Current: 700mA
* Maximum Torque: 1.6kg±0.2kg/cm(4.8V)
* Maximum Speed: 45rpm(3V)
* Weight: 20g
* Connector: Red and Black Motor Connector

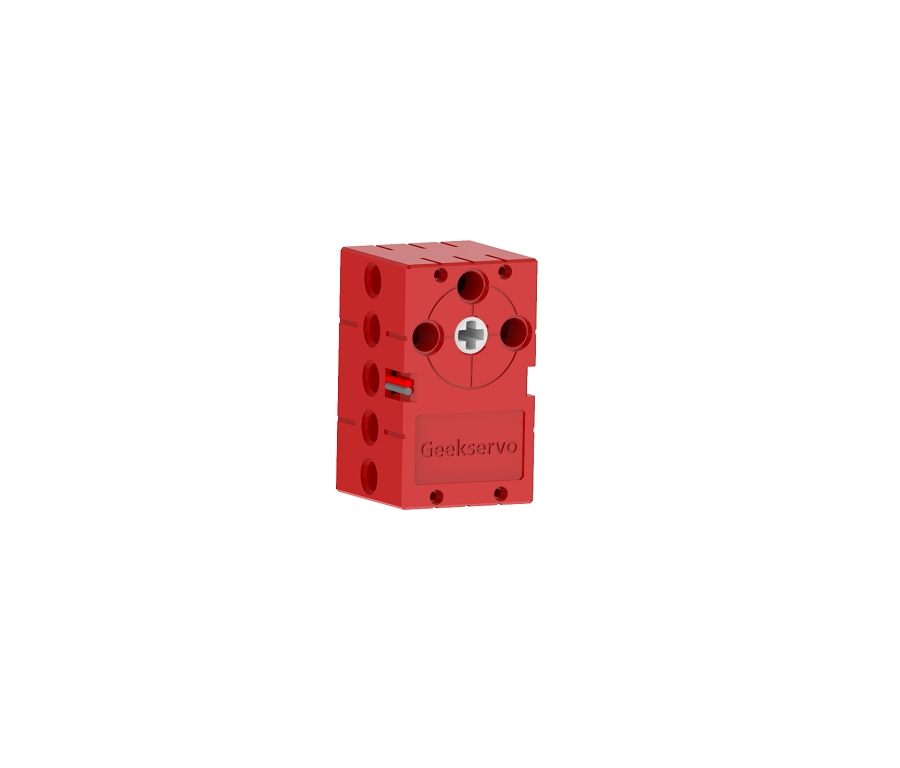

### Special Features

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/2kg_1.jpg)

Inherits the special features of the 9g motor while improving torque and speed at the same time.

* Uses an axle connector for output
  * Allows connecting axles of different lengths to better suit your needs
* Dual Outputs
  * Output axles are found on both sides
* Larger rotational range
  * Has a full 360° range
* Higher Torque
  * About 3 times the torque of a 9g motor

### Dimensions

#### In Lego units:

* Length: 5
* Width: 3
* Height: 3
* Output Axle: Technic Axle

#### In mm units:

* Length: 40mm
* Width: 24mm
* Height: 24mm
* Output Axle: Technic Axle

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/0111.png)

### Connection

#### Armourbit

***

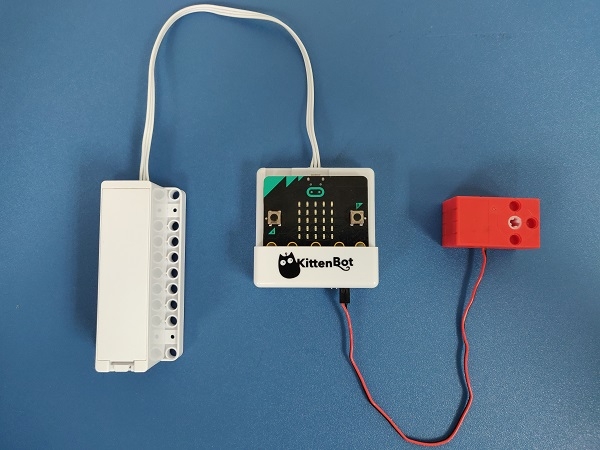

Connect the motor to the motor ports on the Armourbit.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/2kmotorCon.jpg)

```
Reversing the connection would not damage the motor, but the rotational direction will be reversed.
```

#### Robotbit

***

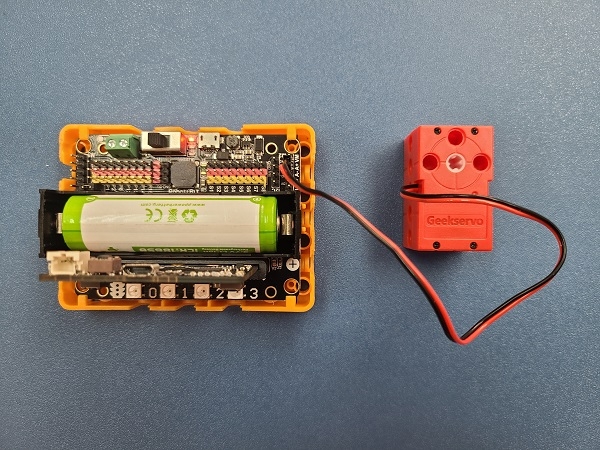

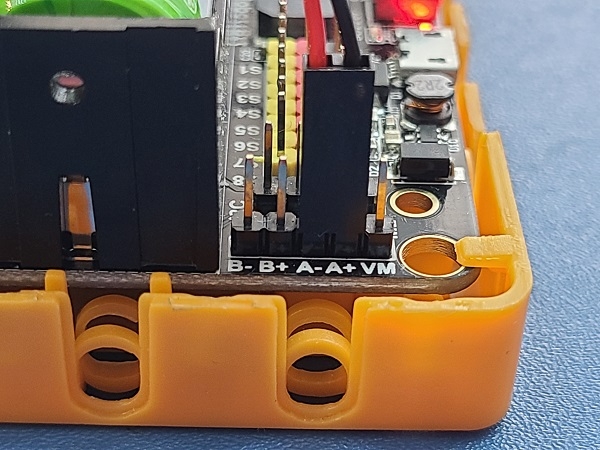

Connect the motor to the motor ports on the Robotbit.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/2kmotorConRB.jpg)

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/2kmotorConRB1.jpg)

```
Reversing the connection would not damage the motor, but the rotational direction will be reversed.
```

### MakeCode Coding Tutorial

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/mcbanner3.png)

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/acbanner1.png)

#### This module can be used by Micro:bit and Meowbit.

***

#### ArmourBit

#### Load Powerbrick Extension: <https://github.com/KittenBot/pxt-powerbrick>

#### [Loading Extensions](https://sharinghub-eng.kittenbot.hk/programming-platforms/makecode-tutorial/kittenbot-and-makecode)

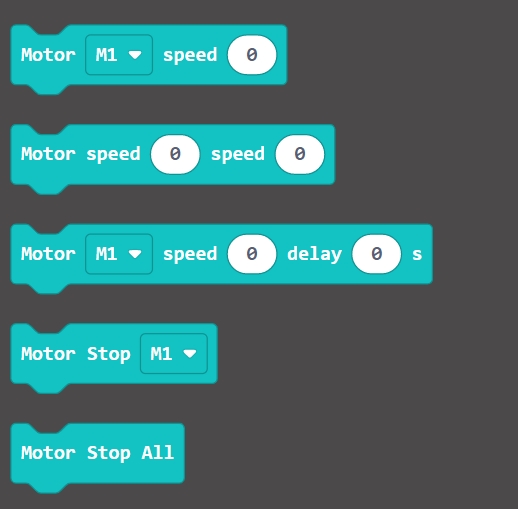

#### Blocks for controlling motors:

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/motorblocks11.png)

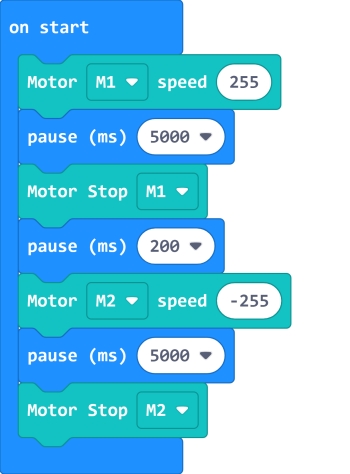

### Programming the motors

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/motor11.png)

[Sample Code Link](https://makecode.microbit.org/_RYHivyayYL4q)

#### Makecode Coding Tutorial Video

{% embed url="<https://www.youtube.com/watch?v=gUR2DbgVTCQ>" %}

***

#### RobotBit

#### Load Robotbit Extension:

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/robotbitExtension1.png)

#### [Loading Extensions](https://sharinghub-eng.kittenbot.hk/programming-platforms/makecode-tutorial/kittenbot-and-makecode)

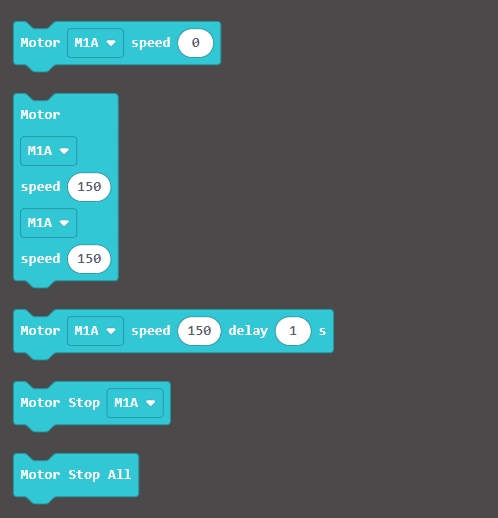

#### Blocks for controlling motors:

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/2kmotorblocks_rb1.png)

#### Programming the motors

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/2kmotorcode_rb1.png)

[Sample Code Link](https://makecode.microbit.org/_c8F80i0Ta5cF)

***

#### Meowbit:

#### Load Robotbit Extension: <https://github.com/KittenBot/meow-robotbit>

#### [Loading Extensions](https://sharinghub-eng.kittenbot.hk/programming-platforms/makecode-tutorial/kittenbot-and-makecode)

#### Blocks for controlling motors:

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/motorblocks11.png)

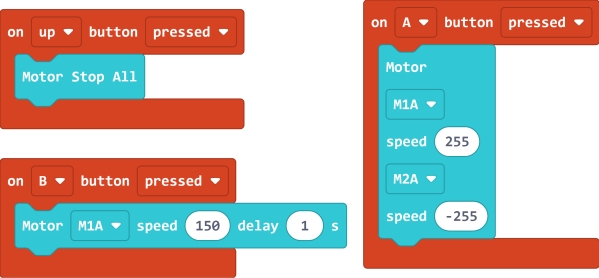

#### Programming the motors:

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/2kmotorcode_meow1.png)

[Sample Code Link](https://makecode.com/_2z0C8v6XAC5y)

### Extension Version and Updates

There may be updates to extensions periodically, please refer to the following link to update/downgrade your extension.

[Makecode Extension Update](https://sharinghub-eng.kittenbot.hk/programming-platforms/makecode-tutorial/makecode-extension-updates)

### KittenBlock Coding Tutorial

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/kbbanner1.png)

***

#### Armourbit

#### Load Powerbrick Extension

Open the hardware menu and select Powerbrick to load the extension for Micro:bit and Powerbrick.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/addextension2.png)

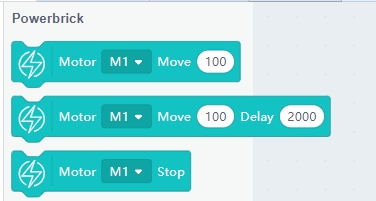

#### Blocks for controlling motors:

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/kbmotorblocks11.png)

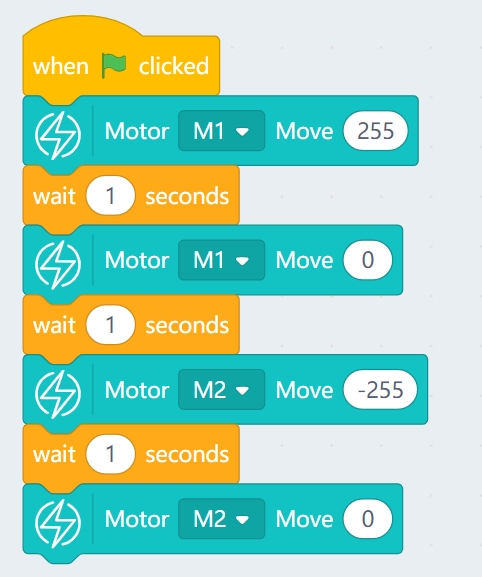

#### Programming the motors

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/kbmotor11.png)

***

#### Robotbit

#### Load Robotbit Extension

Open the hardware menu and select Micro:bit to load the extension for Micro:bit and Robotbit.

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/addRB11.png)

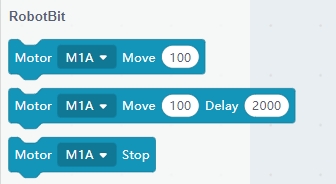

#### Blocks for controlling motors:

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/rbmotorblocks1.png)

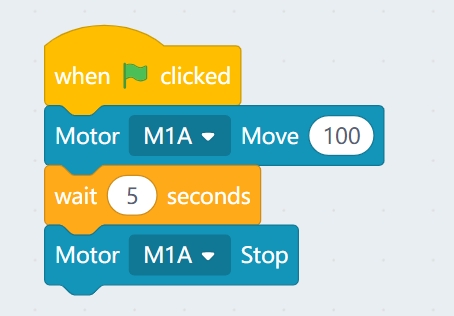

#### Programming the motors

![](https://kittenbothk-eng.readthedocs.io/en/latest/_images/rbmotorcode1.png)

### FAQ

1: The Micro:bit does not react when I click the programming blocks.

Make sure the Micro:bit has been connected to the Kittenblock and then try flashing the firmware.
