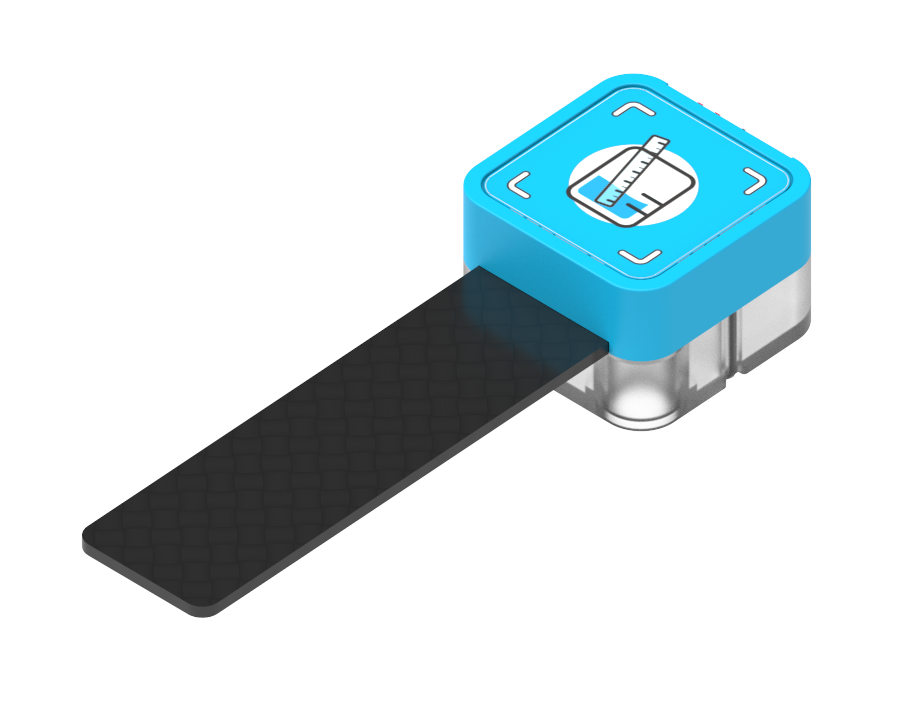

Sugar Water Level Sensor Module

This is a water level sensor module, the pin holes on the back allow compatibility with plastic building bricks.

Product Specifications

• Dimensions: 24 x 24 x 23 mm

• Weight: 6.7g

• Type: Analog

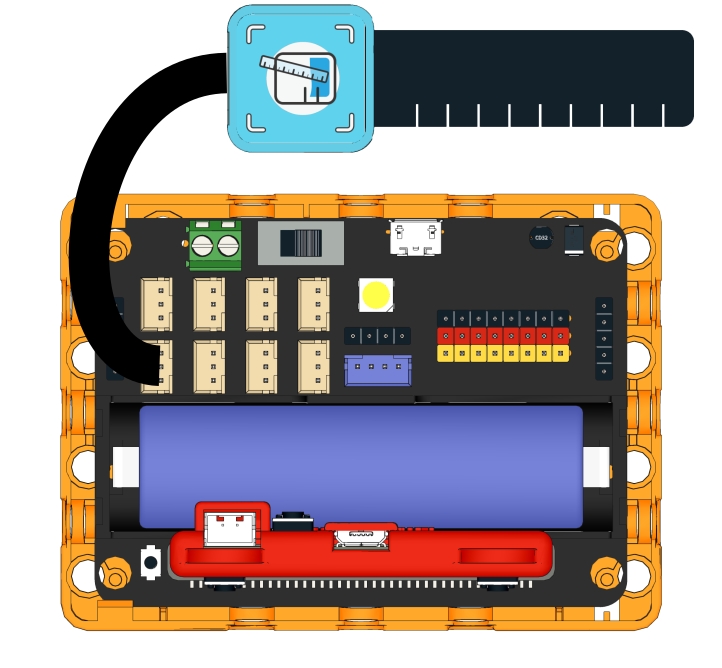

Wiring

Use a 3Pin cable to connect the module to Robotbit Edu.

Programming Tutorial

MakeCode Programming Tutorial

Import Sugar Extension

Search for sugar in the search bar (Kittenbot products has been verified by Microsoft)

Extension URL

Sugar extension: https://github.com/KittenBot/pxt-sugar

Importing Extensions Tutorial

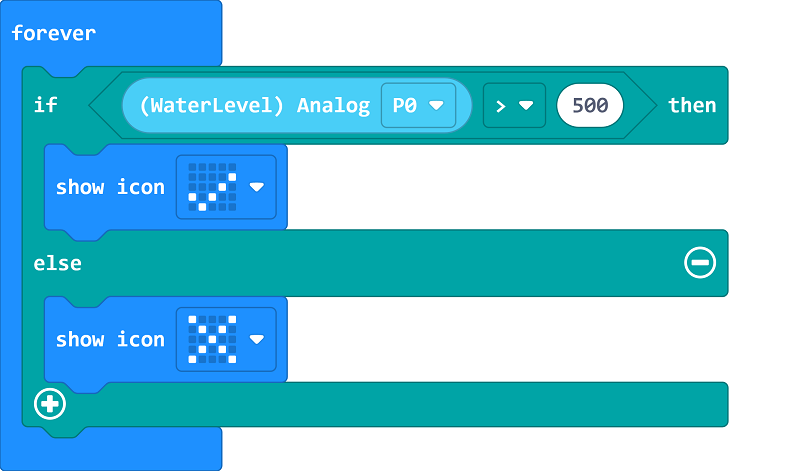

Sample Program

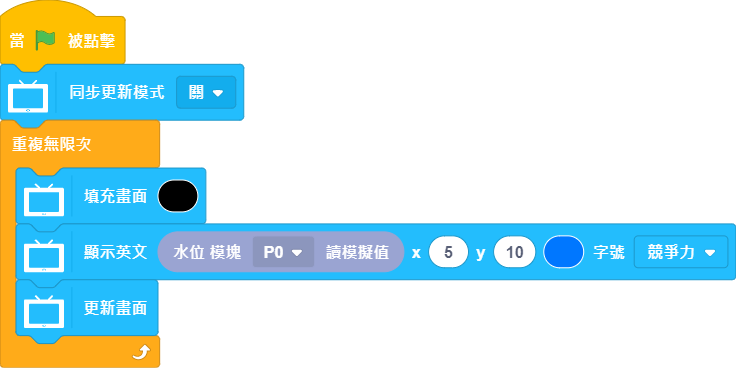

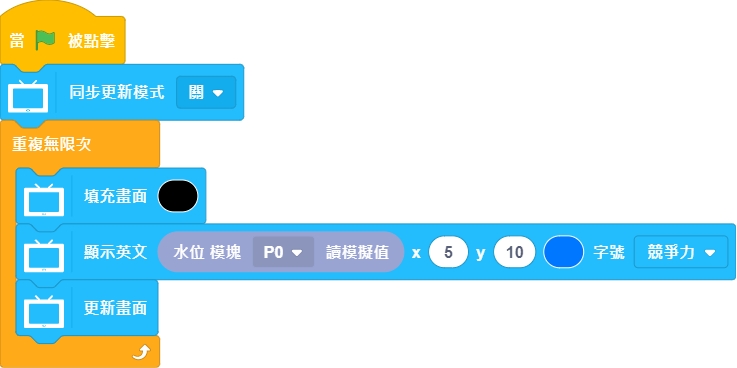

Kittenblock Programming Tutorial

MicroPython Programming Tutorial

WaterLevel(pin)
value()

• value(): Returns sensor value

Sample Program

from future import *

from sugar import *

waterlevel_P0 = WaterLevel('P0')

x = 0

screen.sync = 0
while True:
  screen.fill((0, 0, 0))
  screen.text(waterlevel_P0.value(),5,10,2,(0, 119, 255))
  screen.refresh()
