RoadBlock Smasher

Use the big jaws to build roadblocks in the arena and clear the roadblocks built by the opponent.

Building Instructions and Sample Programs

Building Instructions

RoadBlock Smasher-JoyFrog Controller

RoadBlock Smasher-Micro:bit Controller

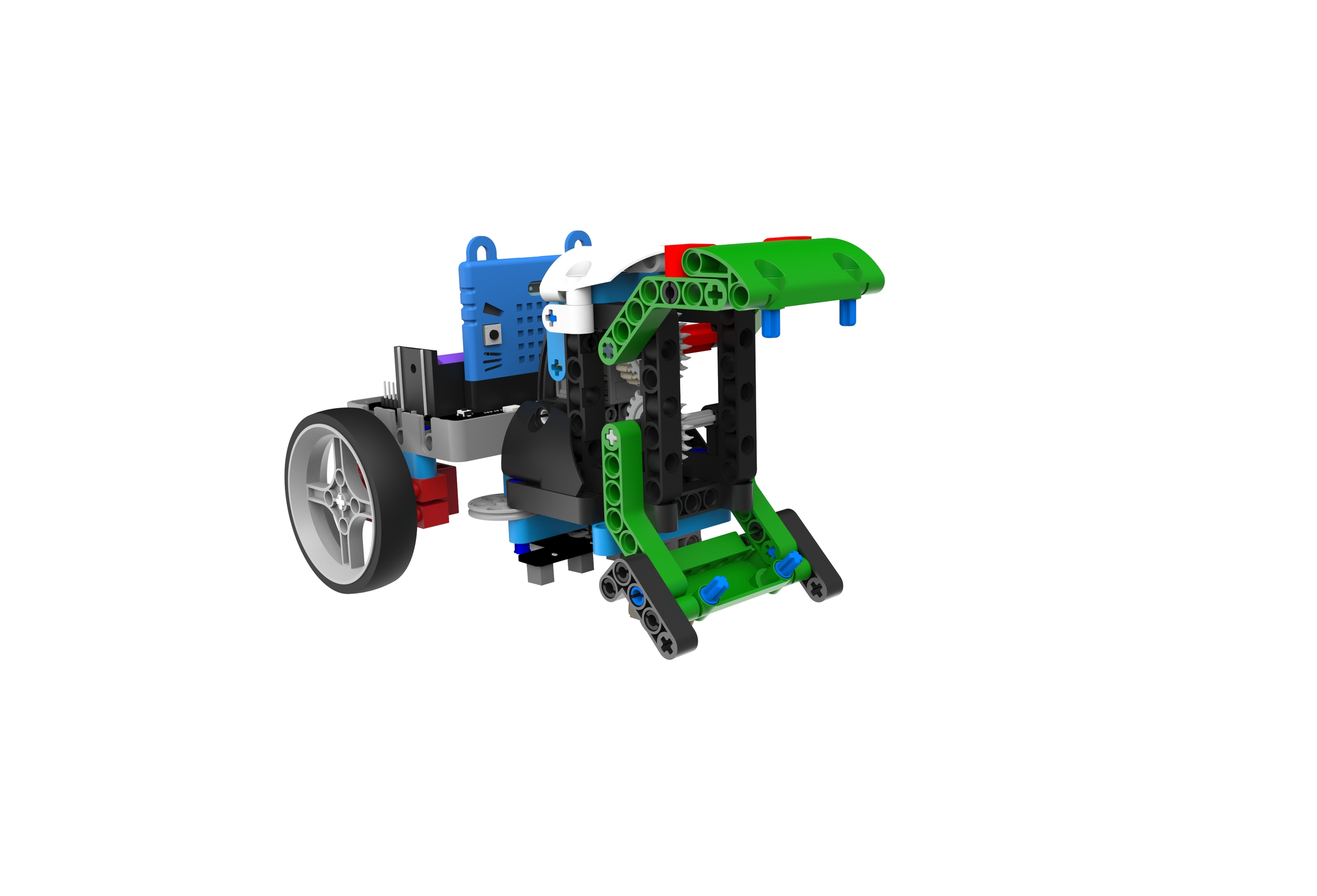

RoadBlock Smasher-Robot

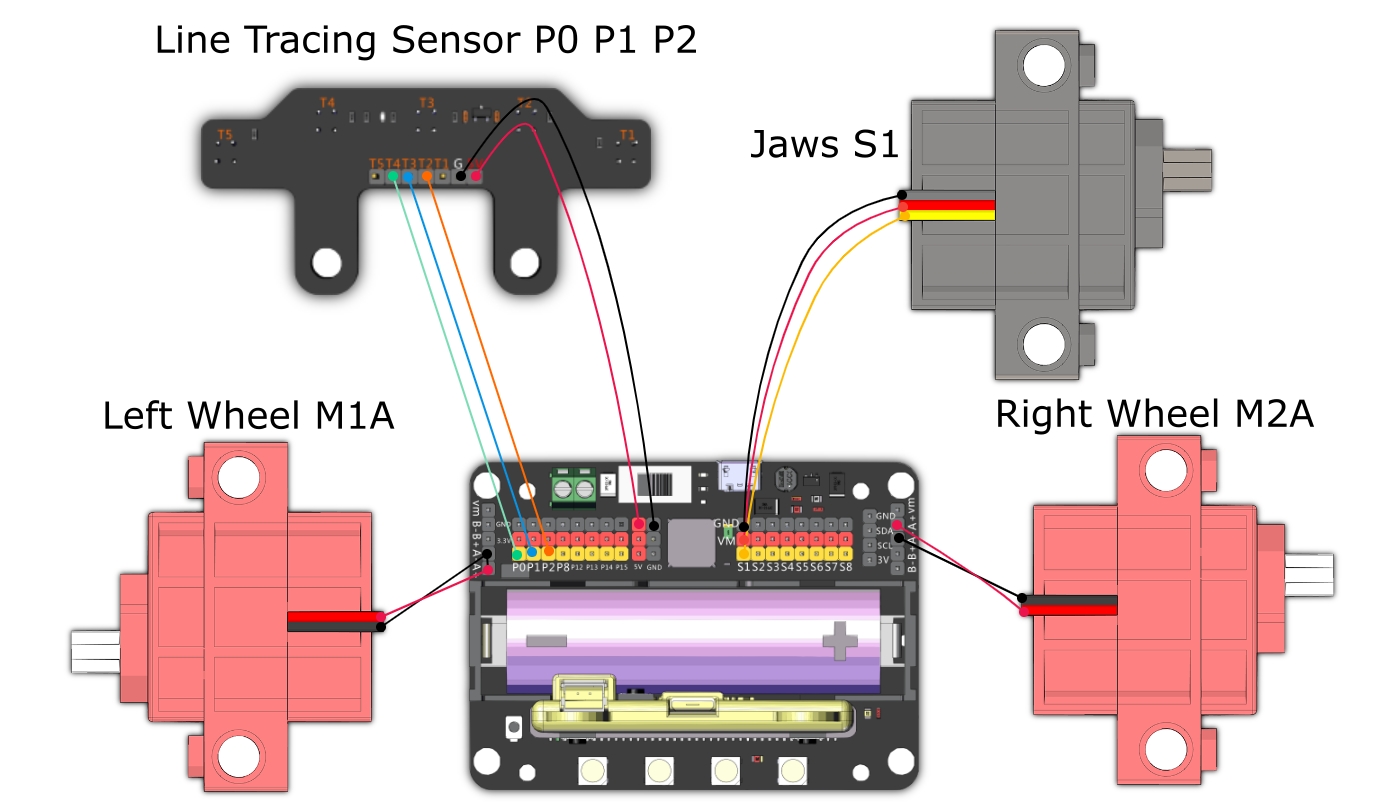

Sample Wiring

Operating the Robot

JoyFrog Controller:

1. Both the robot and the controller should display 0 when the power is switched no.

2. Use the joystick for movement, press A to close the jaws, press B to open the jaws.

3. Press X to switch to line-following mode.

Microbit Controller:

1. Both the robot and the controller should display 0 when the power is switched no.

2. Use the accelerometer for movement, press B to close or open the jaws.

3. Press B to switch to line-following mode.
